DeFelsko Replica Tape Reader PosiTector RTR H

DeFelsko Replica Tape Reader PosiTector RTR H

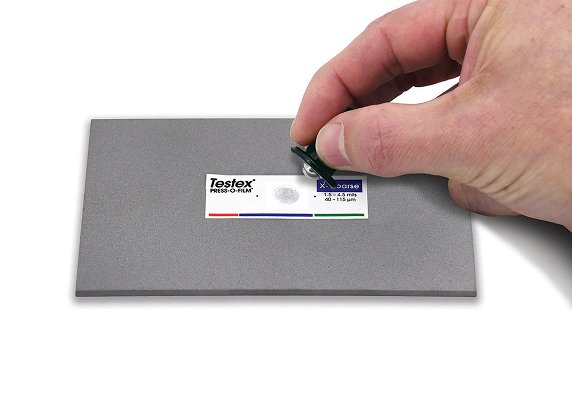

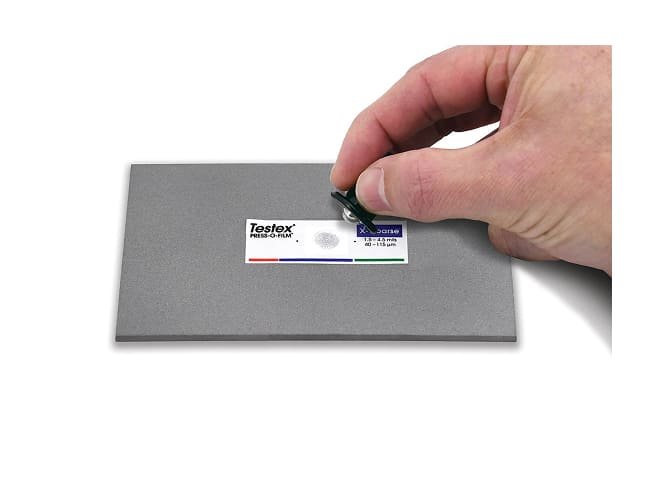

The PosiTector RTR H is a digital replica tape reader engineered to measure peak-to-valley surface profile height on blast-cleaned steel using Testex replica tape. Combining compliance with ASTM, ISO, NACE standards and a rugged IP65 enclosure, it enables precise, repeatable profile readings with minimal operator dependency.

37 people are viewing this product right now

🔥 5 items sold in last 3 hours

Category: Surface Roughness

Brand: Defelsko Estimated delivery:May 27, 2026 - May 29, 2026

Description

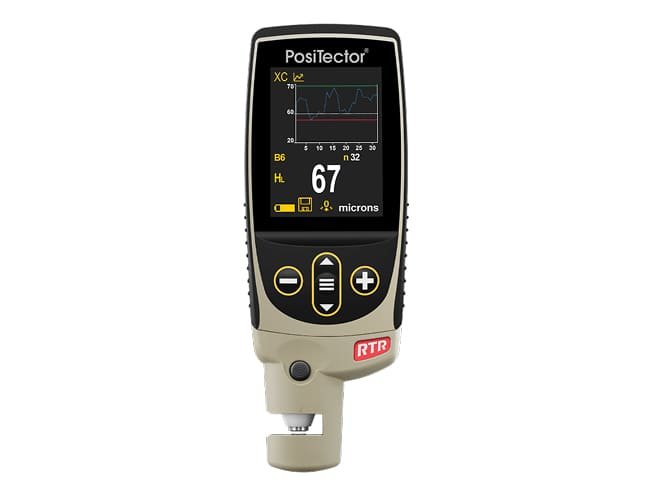

Designed for both shop and field environments, the RTR H features a large 2.8-inch color touchscreen, auto-linearization for tape non-linearity, and interchangeable probe architecture. It automatically subtracts backing thickness, provides immediate HL (peak height) values, and stores readings for quality control and reporting.

DeFelsko Replica Tape Reader PosiTector RTR H

This instrument simplifies surface profile assessment using replica tape by integrating electronic measurement, high accuracy, and robust durability. It supports both Standard and Advanced models with thousands of stored readings, WiFi/Bluetooth connectivity, and ensures traceability via calibration certificates—ideal for coating preparation and inspection.

Features

HL (Peak Height) Range & Accuracy

Measures surface profile in range 20-115 µm (0.8-4.5 mils) with an accuracy of ± 5 µm (± 0.2 mils).

Replica Tape Grade Support and Automatic Conversion

Supports Coarse and X-Coarse primary grades of Testex tape; automatically applies conversion factor for non-linear behaviour, subtracts 50 µm (2 mils) backing to compute HL.

Durable, IP65-rated Gage Body

Weatherproof, dustproof, water-resistant body with ergonomic rubber grip and protective holster; built for rugged field use.

Large Touchscreen & Improved UI

2.8-inch impact-resistant color touchscreen with redesigned keypad; includes on-gage help, reset feature, selectable language and auto-rotating display.

Standards Compliance & Calibration

onforms to ASTM D4417 (Method C), ISO 8503-5, NACE RP0287, SSPC-PA-17 etc. Long-form Certificate of Calibration traceable to PTB; includes check shim.

Overview

Parameter	Specification
Model	PosiTector RTR H Replica Tape Reader
Measurement Range (Peak Height, HL)	20 to 115 µm (0.8 to 4.5 mils)
Accuracy (HL)	± 5 µm (± 0.2 mils)
Resolution	1 µm (0.1 mil)
Anvil Diameter	Ø 6.3 mm (Ø 0.25 in)
Anvil Pressure	1.1 Newtons (≈ 110 gram-force)
Size (gage body only, without probe)	127 × 66 × 25.4 mm (5″ × 2.6″ × 1″)
Weight (gage body only, without batteries)	137 g (4.9 oz)
Power Supply	3 × AAA alkaline batteries
Operating/Enclosure Rating	IP65 – weather-proof, dustproof, water-resistant
Included Accessories	High-accuracy burnishing tool, cleaning cards, check shim(s), surface cleaning putty, holster, lens shields, strap, case, batteries, USB cable, long-form calib cert.
