This USB eyepiece camera from Dino-Lite provides superior image quality with true-to-life colour reproduction, ideal for pathology, quality control, and research. Its CMOS sensor delivers 1280×1024 resolution at 30 fps. The kit includes adapters for 23 mm, 30 mm, and 30.5 mm eyepiece mounts and software for annotation and measurement.

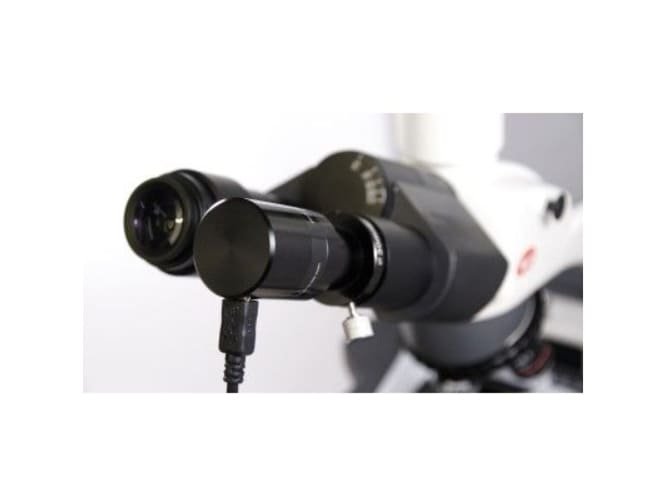

Dino-Eye AM4025X Eyepiece Camera
The Dino-Eye AM4025X combines Edge Series optics with a 1.3 MP CMOS sensor to digitize microscope output. Simply replace the ocular or use adapters to mount, then connect via USB 2.0 to Mac or Windows. Included DinoCapture/DinoXcope software supports image capture, video, measurement, and annotation.
Features
Overview
| Specification | Detail |
|---|---|
| Model | Dino-Eye AM4025X Edge Eyepiece Camera |
| Sensor Type | CMOS, color |
| Resolution | 1.3 MP (1280 × 1024) |
| Maximum Frame Rate | Up to 30 fps |
| Base Magnification | ~ 20× (when inserted into eyepiece) |
| Interface / Connection | USB 2.0 |
| Operating Systems | Windows 7, 8, 10, 11; macOS (10.12 and later) |
| Software | DinoCapture 2.0 (Windows); DinoXcope (Mac) |
| Mounting Options | 23 mm eyepiece (standard), with adapters for 30 mm, 30.5 mm, plus C-mount using thread on 30.5mm adapter |
| Body Material | Metal housing |
| Dimensions | ~ 80.0 mm (Height) × 32.0 mm (Diameter) |
| Cable Length | ~ 1.8 m |
| Weight | ~ 117 g |
| Warranty | 2 years (EU / Edge series warranty) |
| Features | Extended Depth of Field (EDOF); Measurement & Calibration; True colour accuracy; Large Field of View; Compatible with many microscope types. |
