This portable digital microscope is ideal for electronics, manufacturing, and quality control. The long working distance lets you observe larger objects without obstruction, and built-in 8 white LEDs with on/off control deliver consistent illumination. Calibration and measurement functions improve documentation accuracy.

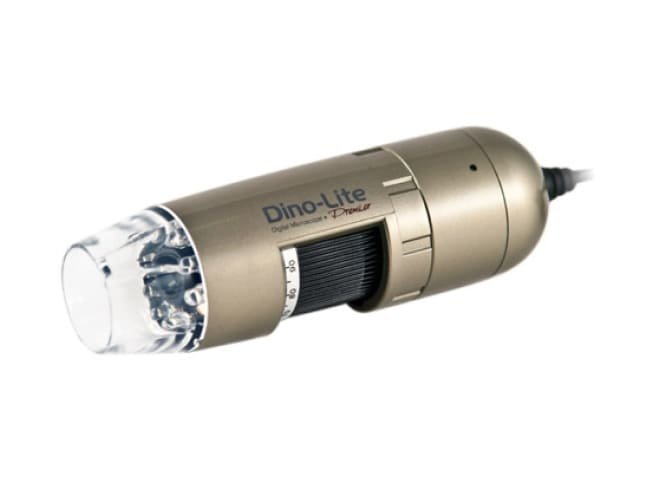

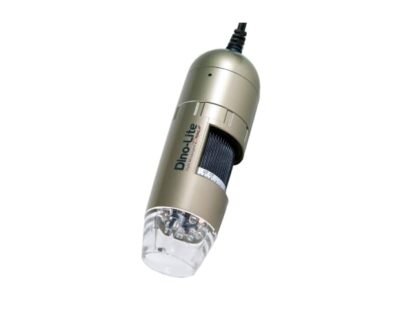

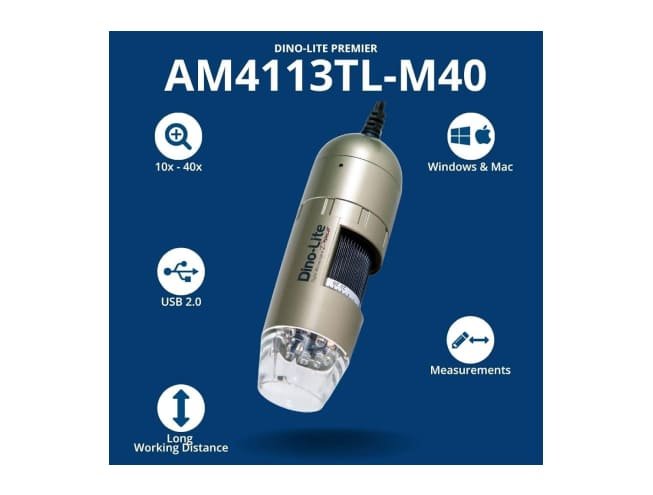

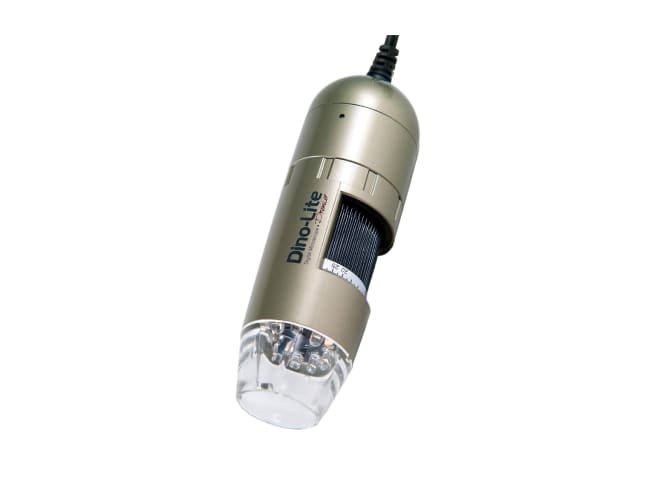

Dino-lite AM4113TL Digital Microscope

Designed for professional use, the AM4113TL connects easily via USB to Windows or macOS. Its enhanced color sensor provides vibrant live previews and captures. Features include MicroTouch instant capture, scroll-lock magnification, and software support for detailed measurement and annotation.

Features

Long Working Distance

Provides up to ~150 mm distance at 20× for easier manipulation of larger objects.

1.3 MP CMOS Sensor

1280×1024 resolution with improved color reproduction

Magnification Range: 10×–90×

Wide usable range for detailed inspection and moderate zoom tasks.

LED Lighting with Control

8 white LEDs switchable via software for consistent illumination.

Scroll Lock & MicroTouch

Focus/magnification lock and touch trigger for stable capture.

Overview

Specification	Detail
Model	AM4113TL Dino-Lite Premier Long Working Distance
Resolution	1.3 Megapixel CMOS (1280×1024)
Magnification Range	10×–90×
Working Distance	Long (151 mm 20×; 46 mm 90×)
Interface	USB 2.0
LED Lighting	8 white LEDs, switchable
Frame Rate	Up to 30 fps
Software Support	DinoCapture2.0 (Win), DinoXcope (Mac)
Measurement & Calibration	Yes
Microtouch Trigger	Yes
Scroll Lock	Yes (holds focus/magnification)
Compatible OS	Windows XP–11, macOS supported versions
Housing Material	Composite plastic housing
Dimensions	105 mm × 32 mm
Weight	105 g
