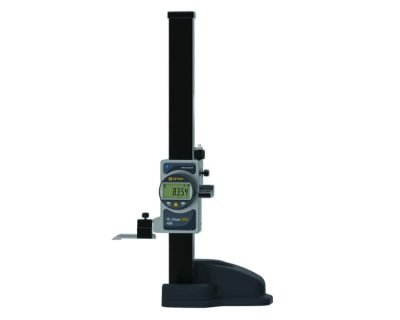

Height Gauge HI_GAGE One Smart Sylvac

Introducing the HI_GAGE One Smart Height Gauge by Sylvac, offering intuitive versatility with features like MIN/MAX/DELTA and probe constant input. Robust mechanics and a double guide system ensure precision and reliability.

Features

Intuitive and Versatile

Enjoy a wide range of functions, including MIN/MAX/DELTA, and the ability to enter a probe constant for measuring diameters and center-to-center distances.

Robust and Precise

With a robust mechanics system, self-locking rapid transfer system, and fine adjustment screws, you can expect accuracy and longevity.

Seamless data acquisition

The device features data outputs for PROXIMITY, POWER, and Bluetooth® that make it easy to integrate into any setup. It also has an integrated Bluetooth®.

Ergonomic solution

The measuring and tracing column boasts an ergonomic cast iron base for good sitting posture and a compact case Ø 59.5 mm with a display resolution of 0.01 mm.

User-Friendly

The device has three buttons, including the central button with a selectable favorite function, and a light indication validating the probing, and convenient.

Complete Package:

The device comes supplied with a tracing probe, ball probe Ø 8 mm, and clamping stem for a lever indicator.

Overview

	840-0406	840-0606
EAN	7640125698848	7640125698831
Measurement range (mm)	400	600
Resolution (mm)	0.01
Max. error (μm)	40	50
Repeatability (μm)	10 ¹
2 references	⬤
PRESET	9000.00
Selection of measuring direction	⬤
Smart Inductive Sensor (S.I.S)	⬤
Output data	Tracing probe (840-9002)
	Bluetooth® wireless technology / RS232 / USB
