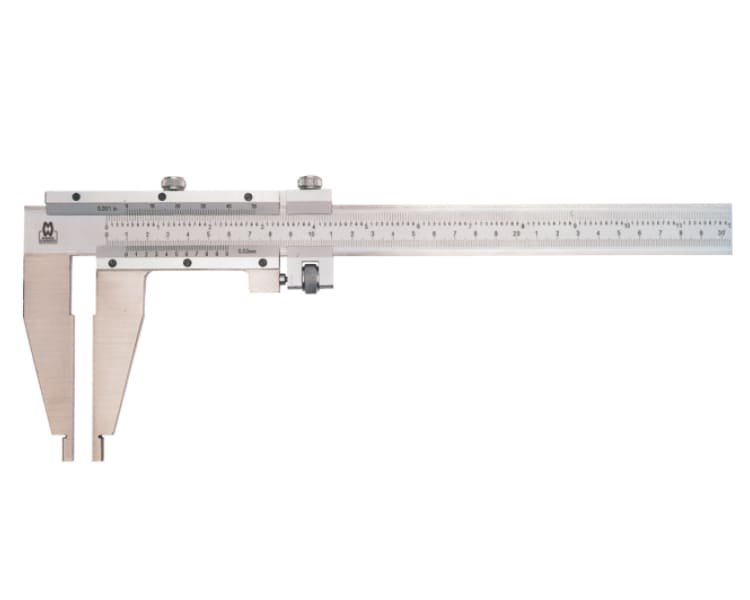

Large Workshop Vernier Caliper Moore & Wright
The Moore & Wright Large Workshop Vernier Caliper features jaws for internal and external measurements, crafted from hardened alloyed stainless steel. With a chromed scale boasting laser-engraved graduations and micro-lapped measuring surfaces, it includes fine adjustment and comes in a wooden box.
19 people are viewing this product right now
🔥 8 items sold in last 3 hours
Large Workshop Vernier Caliper Moore & Wright
The Large Workshop Vernier Caliper by Moore & Wright is a robust precision measuring instrument designed for industrial-grade applications. With its durable construction and extended scale range, it provides accurate measurements of internal, external, depth.
Features
Spesification

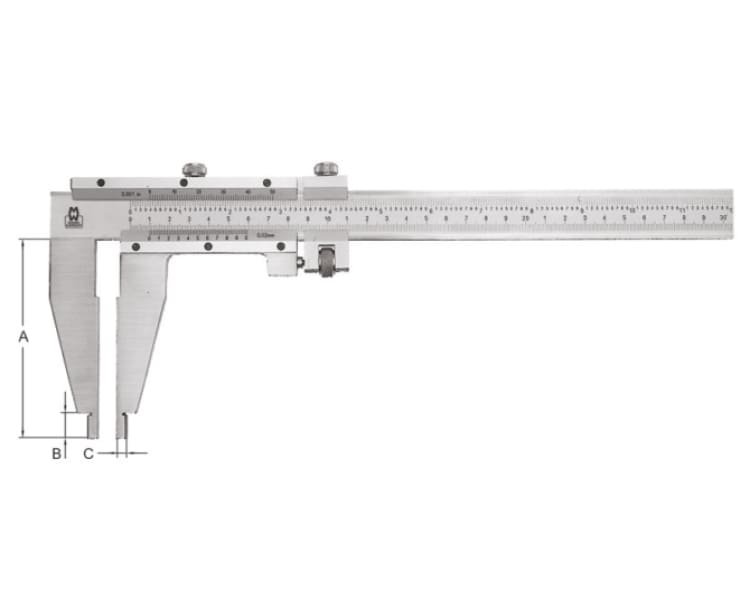

| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Dimn – A | Dimn – B | Dimn – C | Price |
| MW150-52 | 0-500 | 0-20 | ±0.05 | 0.02 | 0.001 | 100 | 12 | 5 | POA |
| MW150-55 | 0-500 | 0-20 0-20 | ±0.07 | 0.05 | 1/128 | 100 | 12 | 5 | POA |
| MW150-62 | 0-600 | 0-24 | ±0.05 | 0.02 | 0.001 | 100 | 12 | 5 | POA |
| MW150-65 | 0-600 | 0-24 | ±0.08 | 0.05 | 1/128 | 100 | 12 | 5 | POA |
| MW150-72 | 0-1000 | 0-40 | ±0.07 | 0.02 | 0.001 | 125 | 18 | 10 | POA |
| MW150-75 | 0-1000 | 0-40 | ±0.10 | 0.05 | 1/128 | 125 | 18 | 10 | POA |
| MW150-82 | 0-1500 | 0-60 | ±0.11 | 0.02 | 0.001 | 150 | 18 | 10 | POA |
| MW150-85 | 0-1500 | 0-60 | ±0.16 | 0.05 | 1/128 | 150 | 18 | 10 | POA |
