This versatile manual bandsaw from MEP combines manual sawing with an HB automatic cutting cycle that uses gravity-controlled hydraulic descent for precision cuts. With mechanical stops for angle positioning and quick-release locking, it offers flexibility and efficiency for industrial metal cutting applications.

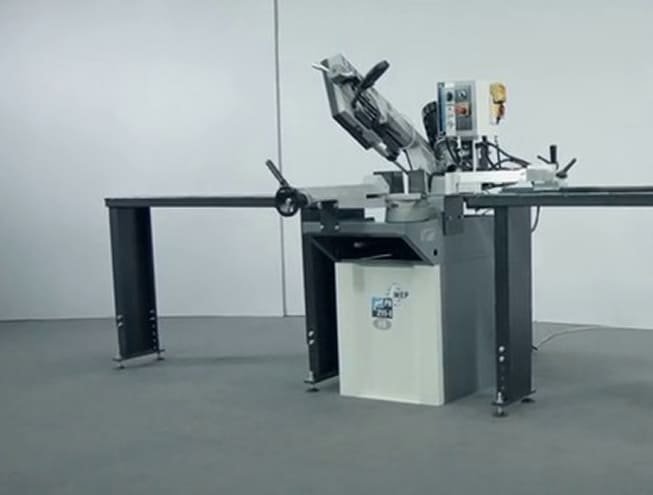

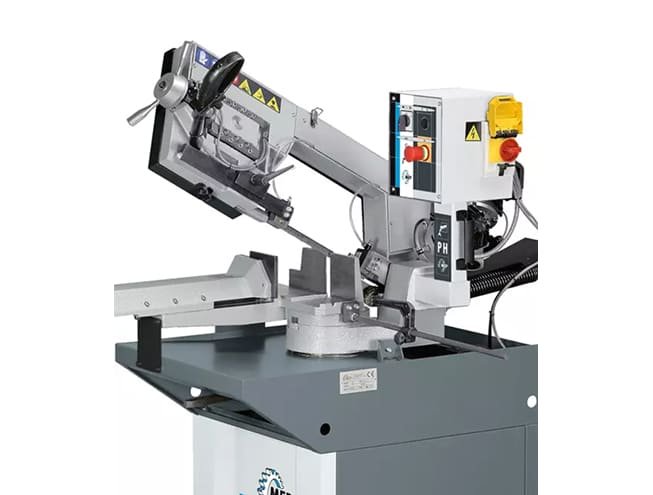

MEP PH 211-1 HB Manual Bandsaw Machine

The PH 211-1 HB manual bandsaw features a robust cast-iron frame, high-flow coolant system, and adjustable carbide blade guides for stability and durability. Its adjustable miter cutting at 0°, 45°, and 60° makes it suitable for precise metal fabrication and repetitive production cutting.

Features

Manual + HB Automatic System

Manual sawing with optional Hydraulic Brake (HB) downfeed for single automatic cuts.

Miter Cutting Capability

Cutting angles from 0° to +60° with mechanical stops and locking device.

Rigid Cast-Iron Structure

Heavy cast-iron construction of head, table, and vice absorbs vibration for stable cutting.

Coolant System

High-flow coolant pump ensures blade lubrication and cooling during cutting.

Carbide Blade Guides

Adjustable hard metal guide pads for greater stability and longer blade life.

Overview

Specification	Typical Value / Notes
Machine Type	Manual pull-down band sawing machine with HB automatic downfeed.
Cutting Range (0°)	Round: 180 mm, Square: 180 mm, Flat: 200 x 150 mm.
Cutting Range (45°)	Round: 115 mm, Square: 110 mm, Flat: 125 x 110 mm.
Cutting Range (60°)	Round: 70 mm, Square/Flat: 70 x 70 mm.
Max Vice Opening	218 mm.
Saw Band Size	2130 x 20 x 0.9 mm.
Blade Speed	40 / 80 m/min (2-speed).
Motor Power	0.7 / 0.81 kW (three-phase).
Machine Weight	190 kg.
Frame Material	Cast-iron structure for reduced vibration.
Blade Guide	Adjustable carbide guide pads.
