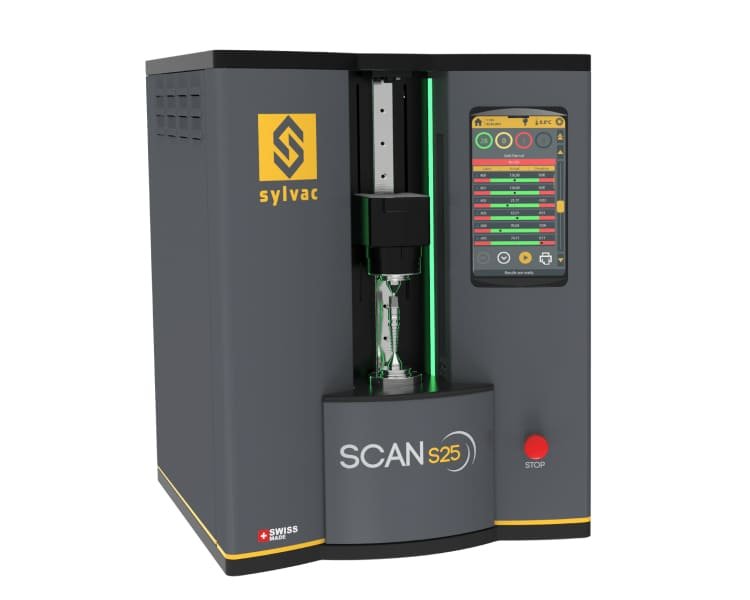

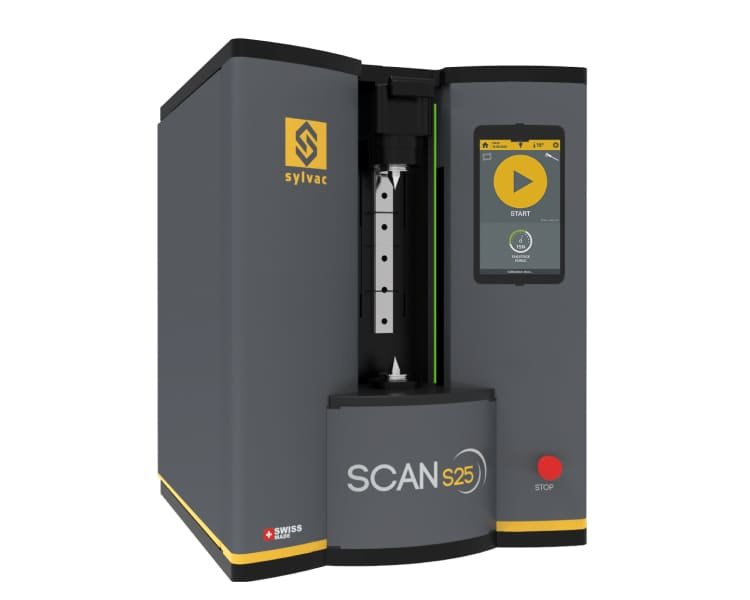

Optical Measurement Scan S25 Sylvac

Introducing Sylvac Optical Measurement Scan S25 tailored for precise measurement of cylindrical parts up to 26mm wide and 200mm long. With rapid 2D scanning, intuitive operation, and exceptional precision, enhance productivity while minimizing scrap and inspection time.

22 people are viewing this product right now

🔥 10 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:June 15, 2026 - June 17, 2026

Description

Optical Measurement Scan S25 Sylvac

Introducing the Sylvac Optical Measurement Scan S25, designed for precise measurement of cylindrical parts up to 26mm wide and 200mm long. It offers rapid 2D scanning, intuitive operation.

Features

Cost Savings at Every Turn

Our non-contact optical machine is designed for the measurement of cylindrical parts, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 26mm wide and 200mm long.

Intuitive Operation

Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

Precision and Efficiency

Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system.

Seamless Integration

Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. With its ‘Automation Ready’ configuration, the machine seamlessly integrates into your workflow.

Overview

	902-4020
EAN	7640125696134
	Diameter	Length
Measuring range (mm)	26	200
Resolution up to (mm)	0.0001
Max. error (µm)	0.9 +(D[mm]/100) µm ¹	2.5 +(L[mm]/200) µm ¹
Repeatability 2δ (µm)	0.5	0.8
Holding capacity diameter (mm)	51	200
Tilting for thread measurement	–
Headstock	High precision rotary
Axial move speed (mm/s)	Up to 100mm/s
Max. weight of part (kg)	3
Machine’s weight (kg)	73
