Optical Measurement Scan S25T Sylvac

Introducing Sylvac Optical Measurement Scan S25T tailored for precise thread measurement on cylindrical parts up to 26mm wide and 200mm long. With rapid 2D scanning, intuitive operation, and exceptional precision, enhance productivity while minimizing scrap and inspection time.

38 people are viewing this product right now

🔥 4 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:June 15, 2026 - June 17, 2026

Description

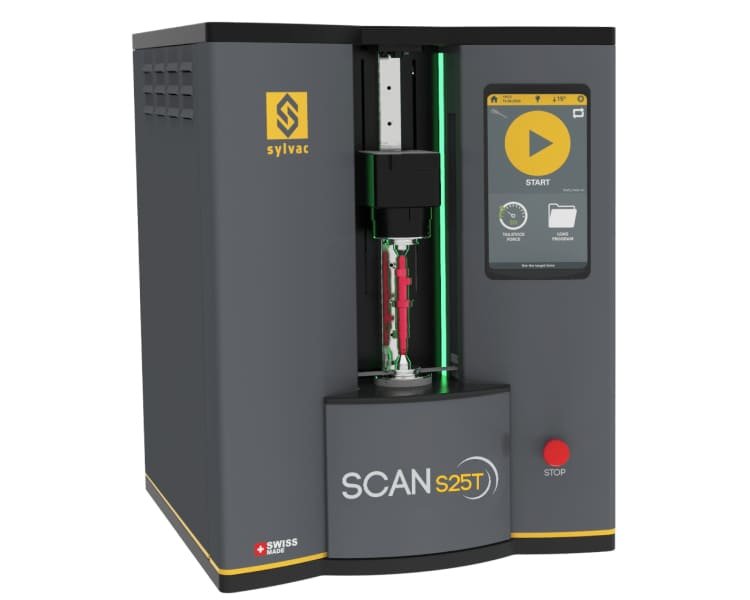

Optical Measurement Scan S25T Sylvac

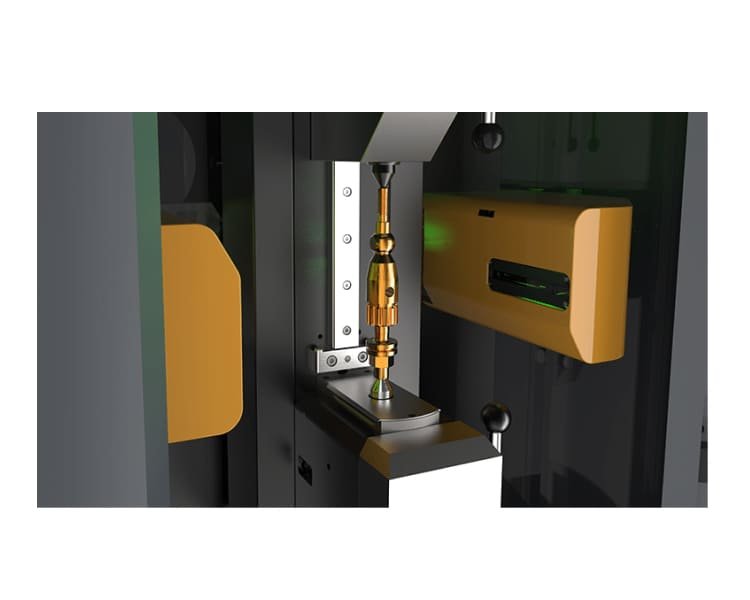

Introducing the Sylvac Optical Measurement Scan S25T, designed specifically for precise thread measurement on cylindrical parts up to 26mm wide and 200mm long. It features rapid 2D scanning, intuitive operation.

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Intelligent Power Management

enefit from the automatic wake-up feature (Absolute System S.I.S) when moving the electronic on its frame and enjoy the energy-saving sleeping mode (Absolute System S.I.S) after 20 minutes of inactivity.

Overview

	902-4025
EAN	7640125688986
	Diameter	Length
Measuring range (mm)	26	200
Resolution up to (mm)	0.0001
Max. error (µm)	0.9 +(D[mm]/100) µm ¹	2.5 +(L[mm]/200) µm ¹
Repeatability 2δ (µm)	0.5	0.8
Holding capacity diameter (mm)	51	200
Tilting for thread measurement	30°
Headstock	High precision rotary
Axial move speed (mm/s)	Up to 100mm/s
Max. weight of part (kg)	3
Machine’s weight (kg)	73
