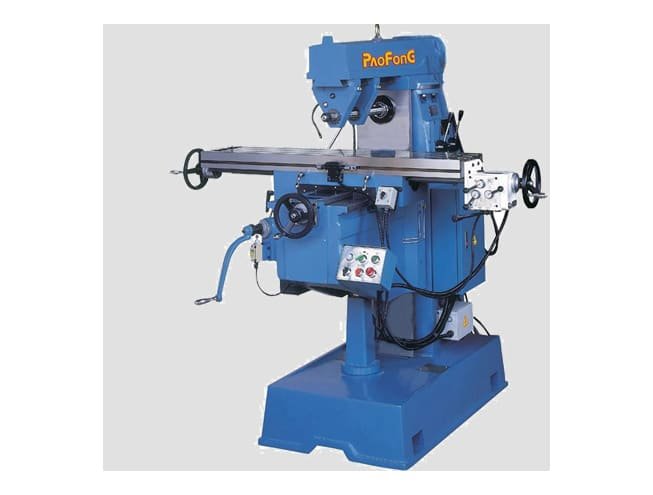

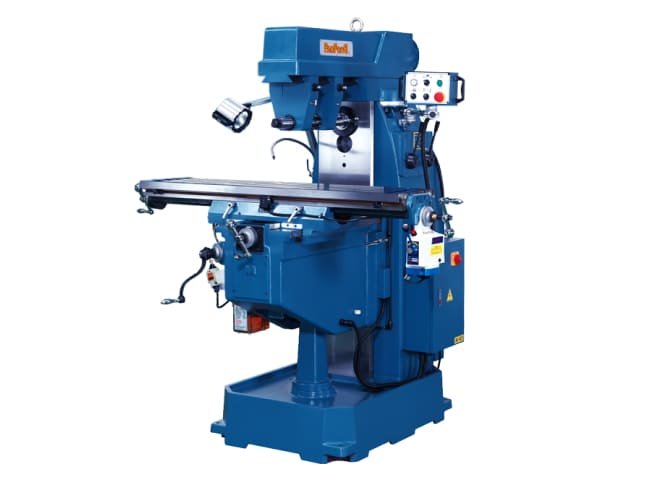

Pao Fong Horizontal Milling Machine PF-6H
The Pao Fong PF-6H horizontal milling machine delivers reliable performance with its 5 HP spindle and robust construction. Featuring a dual-way slide system, hardened & ground axes, and Turcite-B coatings, it supports medium to heavy milling tasks. Its optional accessories and lubricated feed screws enhance versatility and precision.
17 people are viewing this product right now
🔥 12 items sold in last 3 hours
Designed for horizontal milling operations, the PF-6H is equipped with a 5 HP spindle, NST 40 taper, and standard table (254 × 1372 mm). With dovetail X-axis and square Y/Z axes, automatic lubrication, and modular expansion options (power feed, DRO, coolant), it adapts to versatile machining needs.
Pao Fong Horizontal Milling Machine PF-6H
Pao Fong’s PF-6H marries structural stability with flexibility. Its hardened & ground axes, Turcite-B slide coatings, and automatic lubrication system ensure smooth motion and longevity. Optional features—such as power feed, chip guards, and readouts—allow tailored setups for advanced milling applications.
Features
Overview
| Specification | Detail |
|---|---|
| Model | PF-6H |
| Spindle Motor | 5 HP |
| Table (Standard) | 254 × 1372 mm |
| Table (Optional) | 305 × 1372 mm |
| Spindle Taper | NST 40 |
| X-Axis Slide Way | Dovetail |
| Y & Z Axes Slide Way | Square |
| Slide Coating | Turcite-B on X & Y axes |
| Axes Treatment | Hardened & ground (X, Y, Z) |
| Automatic Lubrication | Yes – lubricates feed screws and slides (60 min interval) |
| Optional Equipment | Coolant, chip guards, safety table cover, work lamp, milling chucks, collets, clamps, vises, ball screws, DRO, power feed, electrical cabinet with control panel + spindle auto brake |
| Standard Accessories | Horizontal mill arbor (27 mm), draw bar, toolset & toolbox, one-shot lubrication system, splash guards (front & rear) |
