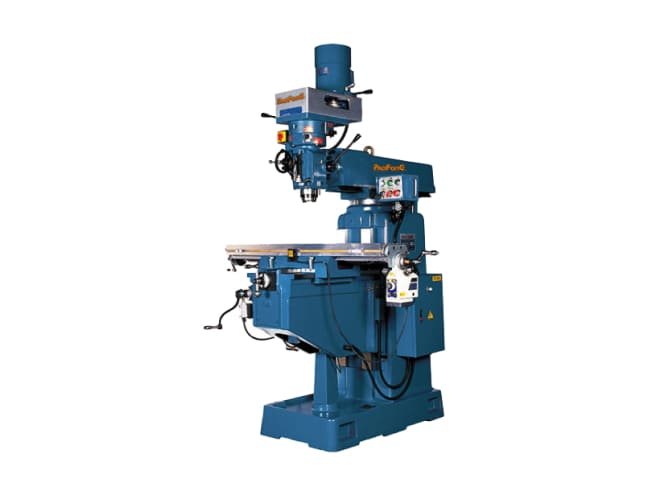

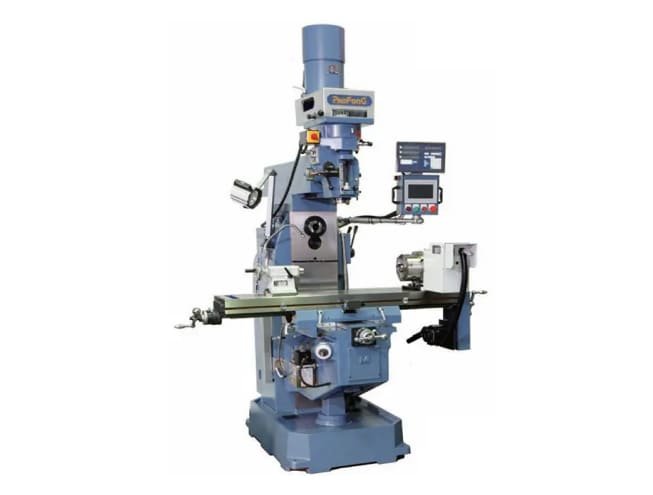

Pao Fong Vertical Milling Machine PF-2S
The Pao Fong PF-2S vertical milling machine features a 3 HP spindle motor, standard 229 × 1067 mm table, and hardened & ground axes. With dovetail ways and optional upgrades such as coolant, power feed, and chip guard, it supports versatile milling tasks in small to mid-sized workshops.
40 people are viewing this product right now
🔥 12 items sold in last 3 hours
Designed for reliable performance, the PF-2S includes Turcite-B coated X,Y axes, a step speed head, and selectable spindle taper (NST 30, R8, optional NST 40). Its compact design ensures adequate travel and adaptability, suitable for general machining, prototyping, and toolroom work.
Pao Fong Vertical Milling Machine PF-2S
The PF-2S combines structural rigidity with flexible configuration. With dovetail slides on X, Y, Z axes, a hardened & ground construction, and options for power feed, ball screws, and advanced accessories, it addresses both precision and productivity in vertical milling operations.
Features
Overview
| Specification | Detail |
|---|---|
| Model | PF-2S |
| Spindle Motor | 3 HP |
| Table (Standard) | 229 × 1067 mm |
| Table (Optional) | 229 × 1245 mm |
| Spindle Taper | NST 30 or R8 standard; NST 40 optional |
| Axes Slide Ways | Dovetail on X, Y, Z |
| Axes Surface | X, Y axes coated with Turcite-B |
| Axes Treatment | Hardened & ground for X, Y, Z |
| Longitudinal Travel (X) | 762 mm (as per local spec) |
| Cross Travel (Y) | 305 mm (as per local spec) |
| Knee Travel (Z) | 406 mm (as per local spec) |
| Net Weight | 1020 kg (as per local spec) |
