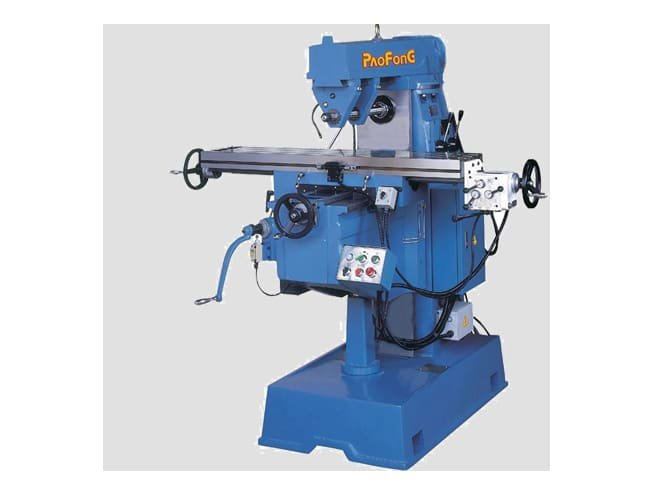

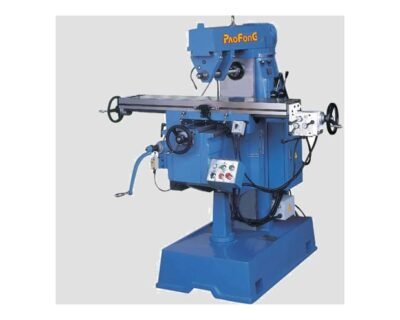

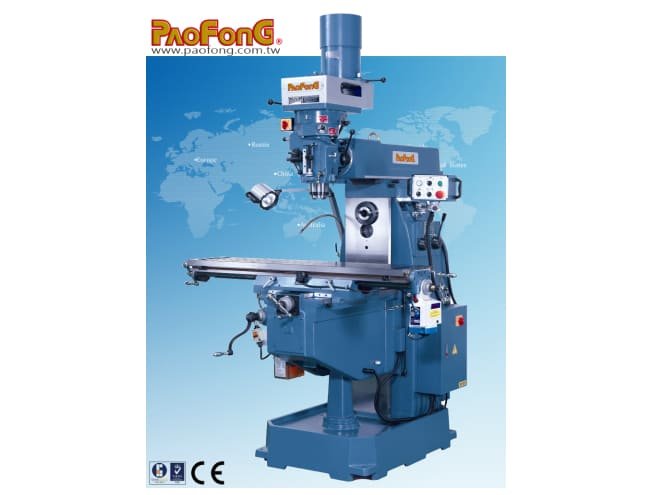

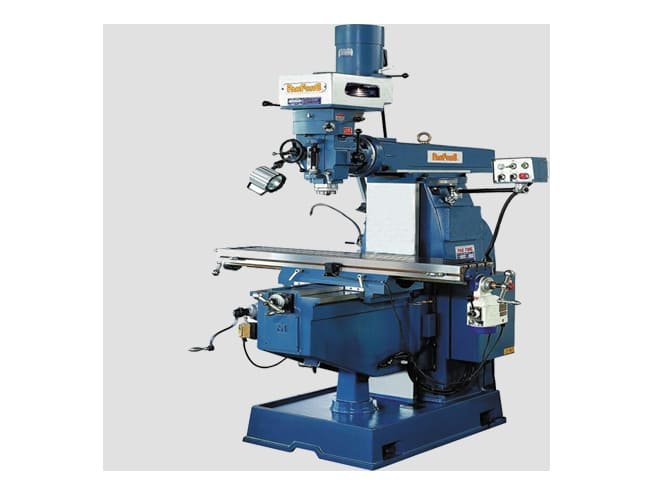

Pao Fong Vertical Horizontal Milling Machine PF-6SH
The PF-6SH is a combined vertical and horizontal milling machine featuring a 5 HP spindle, step speed head plus horizontal speed head, and dual-purpose capability. With rigid construction, auto lubrication, and interchangeable functions, it supports both vertical and horizontal machining tasks efficiently.
25 people are viewing this product right now
🔥 9 items sold in last 3 hours
Designed for versatility, the PF-6SH integrates vertical milling, horizontal arbor cutting, and drill press modes. Standard with a 254 × 1372 mm table and NST 40 spindle taper, the machine has hardened & ground axes, Turcite-B coated slides, and optional accessories to optimize workflow.
Pao Fong Vertical Horizontal Milling Machine PF-6SH
Pao Fong’s PF-6SH offers multi-axis milling flexibility. Equipped with step speed and horizontal heads, the machine can switch between vertical and horizontal operations. Automatic lubrication, robust slideways, and modular upgrade options (DRO, power feed, coolant) make it suited for varied machining tasks.
Features
Overview
| Specification | Detail |
|---|---|
| Model | PF-6SH |
| Spindle Motor | 5 HP, with auto stop brake |
| Standard Table | 254 × 1372 mm |
| Optional Table | 305 × 1372 mm |
| Spindle Taper | NST 40 |
| Head Type | Step speed head with horizontal speed head integrated |
| X-Axis Slide Way | Dovetail |
| Y, Z Axes Slide Way | Square |
| Axes Coating | Turcite-B on X, Y |
| Axes Treatment | Hardened & ground X, Y, Z |
| Automatic Lubrication | Yes (slides and feed screws), interval 60 min |
| Working Travels | X: 840 / 930 mm; Y: 420 mm; Z (knee): 470 mm |
| Quill Travel & Diameter | Quill travel: 125 mm; quill dia: 105 mm |
| Spindle Speed | Step spindle speeds: 70 4700 rpm etc. (per step head) |
| Machine Dimensions (L × W × H) | 2380 × 2000 × 1680 mm |
| Weight | 1750 kg |
| Standard Accessories | Horizontal mill arbor 27 mm, horizontal & vertical draw bars, tools & toolbox, splash guards, auto lubrication, etc. |
| Optional Equipment | Coolant system, chip guard, ball screws, DRO, power feed, control panel, table cover, etc. |
