Designed for flexibility and automation, the PF-6SH-PLC offers a standard 254 × 1372 mm table (optional 305 × 1372 mm), dovetail X-axis and square Y/Z axes, Turcite-B coated slides, and an auto spindle brake. Its touchscreen CNC control modernizes traditional milling workflows.

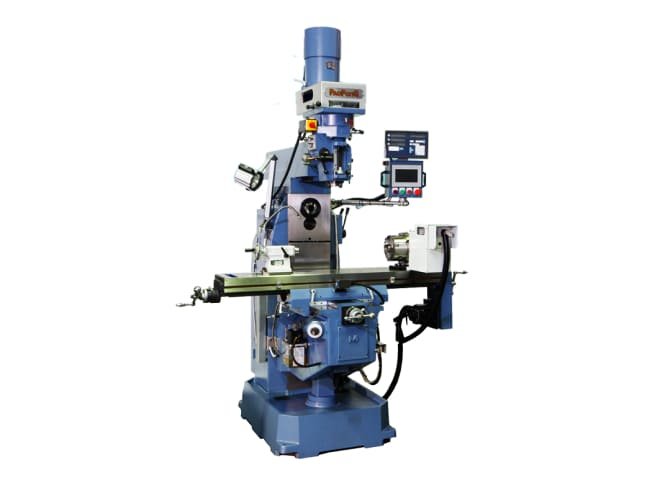

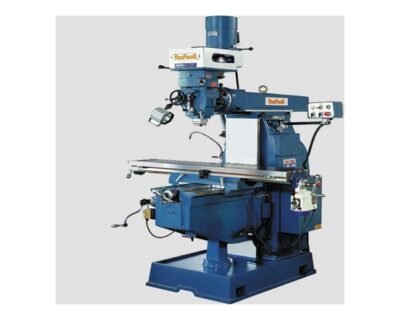

Pao Fong CNC Milling Machine PF-6SH-PLC
Pao Fong’s PF-6SH-PLC blends conventional milling structure with CNC enhancements: auto lubrication, power feed options, and digital readouts. The sturdy construction supports accurate motion, while optional accessories (coolant, chip guard, etc.) enhance usability in production settings.
Features
Overview
| Specification | Detail |
|---|---|
| Model | PF-6SH-PLC |
| Spindle Motor | 5 HP |
| Table (Standard) | 254 × 1372 mm |
| Table (Optional) | 305 × 1372 mm |
| Spindle Taper | NST 40 |
| Axes Types | X: dovetail; Y/Z: square |
| Slide Coating | X & Y axes coated with Turcite-B |
| Axes Treatment | Hardened & ground X, Y, Z axes |
| Lubrication | Automatic lubrication for slides and feed screws; interval 60 min (optional) |
| Optional Equipment | Coolant system, chip guard, safety table cover, work lamp, milling chuck & collets, clamping kits, vise, ball screws, DRO readouts, power feed, etc. |
| Standard Accessories | Horizontal mill arbor (27 mm), vertical draw bar, tools & toolbox, one-shot lubrication, splash guards, operation manual |
