Tachometers DT-2100 Shimpo
The Shimpo DT-2100 Tachometer offers data logging in various modes, USB output, and a powerful laser for non-contact measurements. Features include programmable multipliers, hi-lo limits, auto-detection of adapters, a reversible display, and optional low-speed contact adapter.
15 people are viewing this product right now
🔥 8 items sold in last 3 hours
Tachometers DT-2100 Shimpo

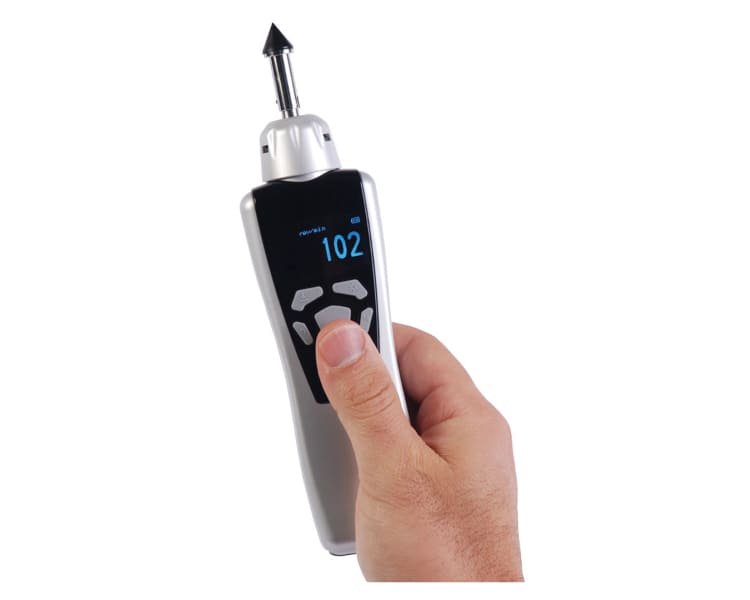

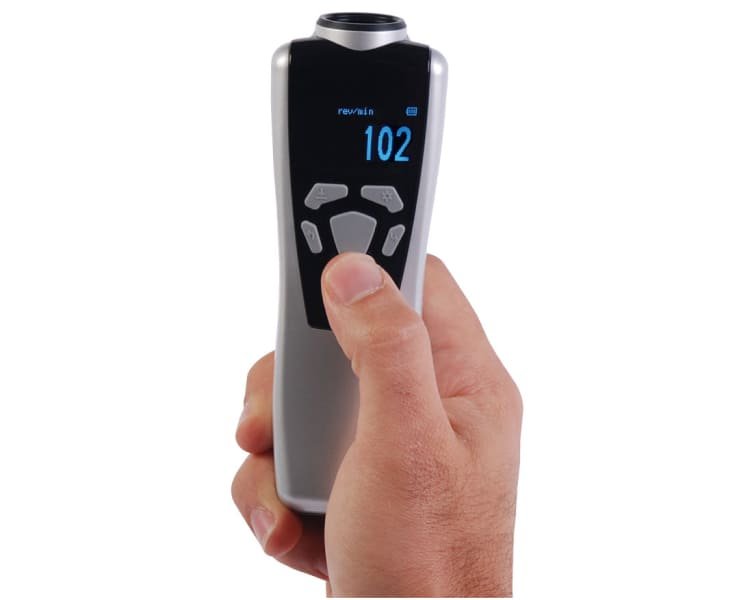

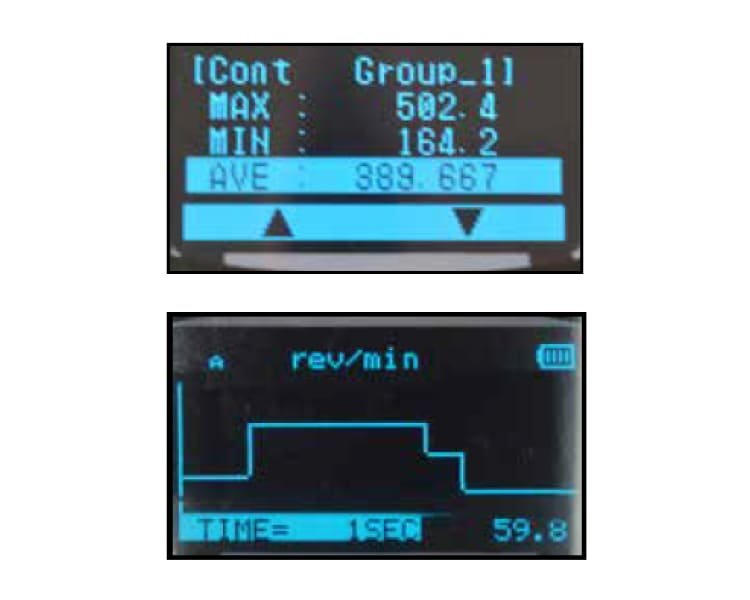

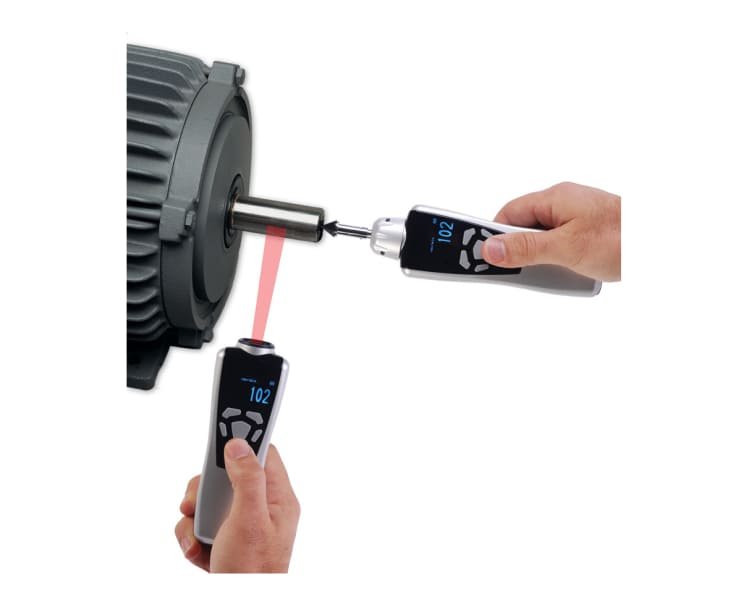

The all new Shimpo DT-2100 is a highly advanced combination contact / non-contact hand-held tachometer. The DT-2100 offers data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a blue backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode.
Features
Complete Kit
Specifications
| Range | 6-99,999 rpm Non-contact 0.8-25,000 rpm Contact |
| Accuracy | ±0.006% of reading ±1 least significant digit |
| Measuring Units | Speed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph Distance: cm, m, km, in, ft, yd |
| Memory | Continuous Mode: 1000 Single Mode: 100 Statistics Mode: 100 |
| Laser Sensing Distance | 2 inces up to 13.1 Feet (5 to 400 cm) |

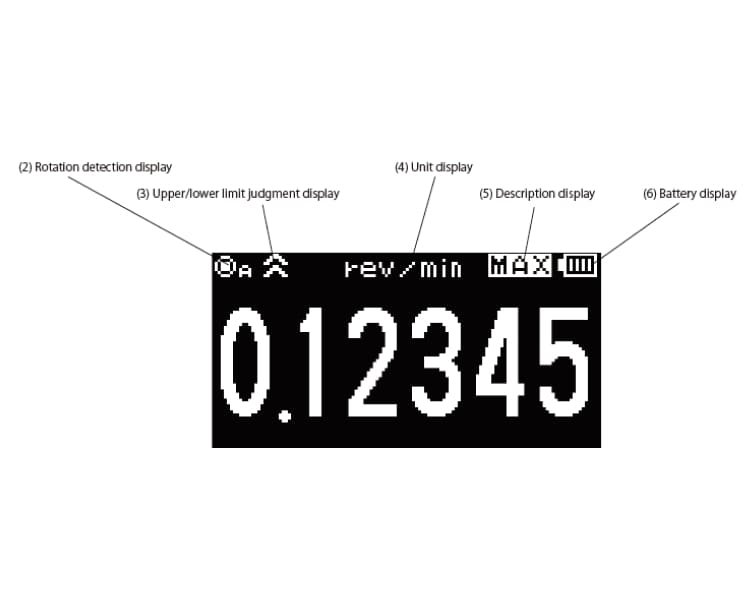

| Display | Graphical Blue Light OLED, reversible |
| Display Update Time | Selectable: 100 ms, 500 ms, 1 sec, 5 sec |
| Power | 2 AA 1.5V batteries or USB |
| Battery Life | Approx: 20 hours with brightness set to 20% |
| Temperature Limits | 32º – 113ºF (0º – 45ºC) Non-Condensing |
| Construction | Polycarbonate |
| Dimensions | 6.1” x 2.2” x 1.4” (155 x 55 x 35 mm) |
| Product Weight | 4.14 oz (125 g) |
| Approvals | CE, RoHs |
| Warranty | 1-Year |

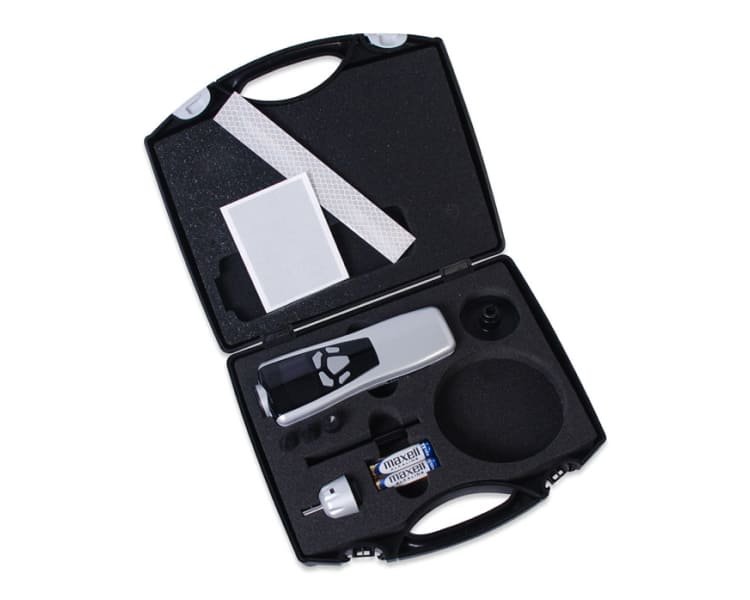

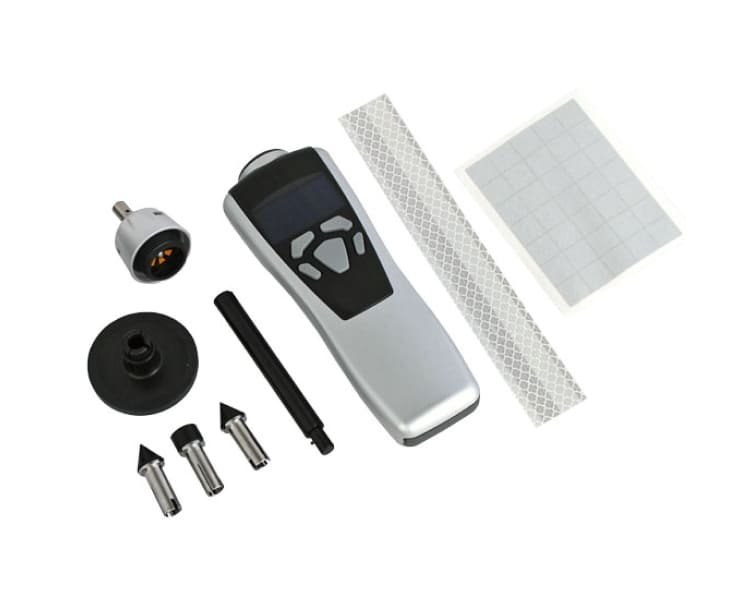

| Included Accessories | 2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case |
| Resolution Non-Contact | 1 RPM |
| Resolution Contact | 0-9,999: 0.1 RPM 10,000 and above: 1 RPM |
| Resolution Other | For other units, refer to PDF available in downloads section |
