Designed for precision and control, the CT-150A accommodates diamond or resin cutting discs from 100 to 150 mm, with a mobile rack enabling only 25 mm travel. Its fine positioning accuracy of 0.01 mm ensures repeatable cuts. With unattended operation possible and stable spindle performance, it’s ideal for industrial research and academic use.

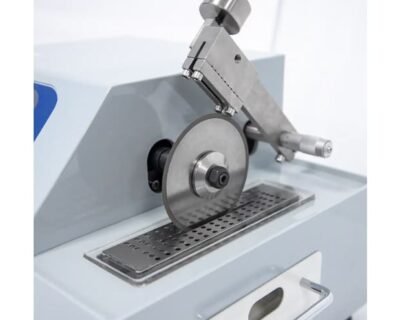

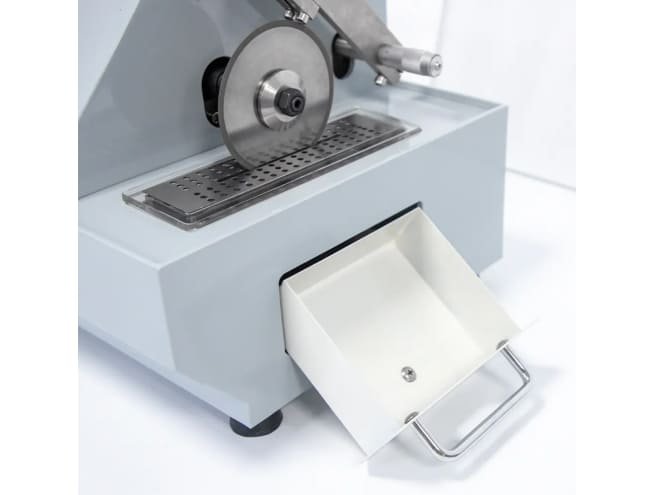

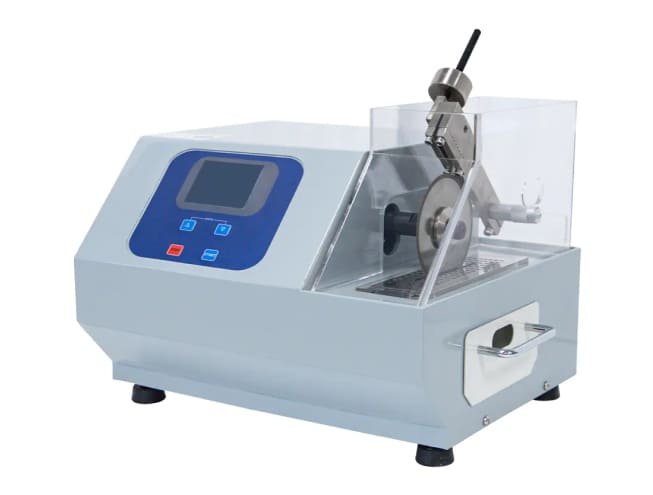

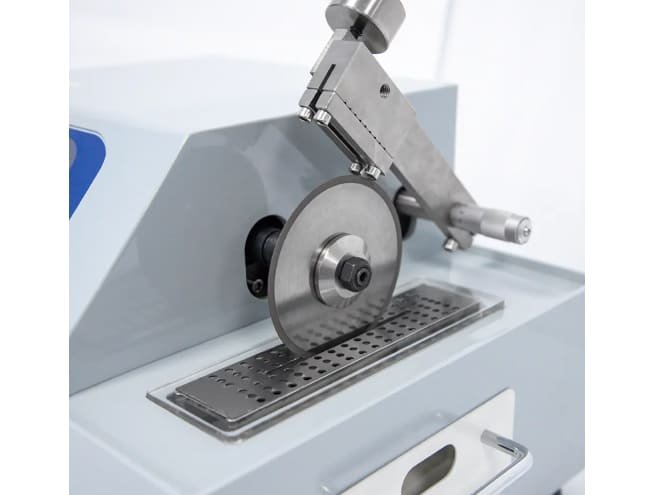

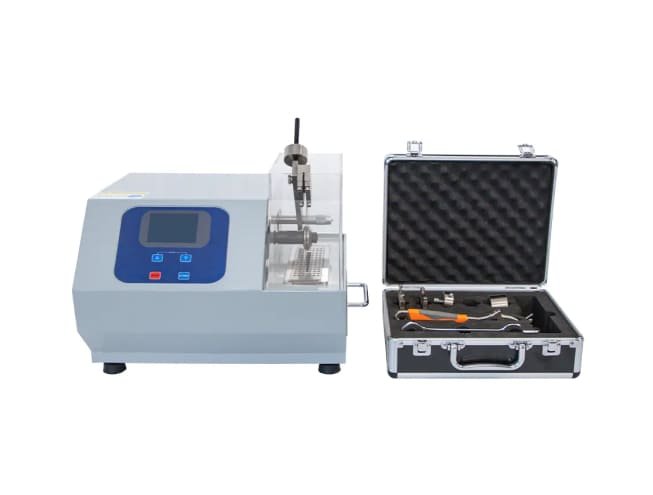

Trojan CT - 150A Low-Speed Precision Cutting Machine

Engineered for meticulous sample preparation, the CT-150A emphasizes consistency and fine detail. Low rotational speeds (0-700 rpm), exact positioning, and a full set of fixtures allow cuts at optimal angles with minimal distortion. Compact yet serious: laboratories, R&D departments, and metallurgical facilities will benefit from its combination of precision and versatility.

Features

Low Spindle Speed Range (0-700 rpm)

Enables cutting of hard, delicate, or heat-sensitive materials without overheating or introducing cracks—critical when clarity of microstructure matters.

High Positioning Accuracy (0.01 mm)

Offers very fine control over horizontal feed and sample placement, ensuring cuts are exactly where required, improving reproducibility.

Versatile Cutting Disc Sizes (Φ100-150 mm, Diamond or Resin)

Supports different disc types and sizes to suit a variety of materials—diamond discs for hard/polished surfaces, resin for gentler sectioning.

Mobile Rack Travel (25 mm)

Allows controlled movement of sample fixture for precise engagement with the blade, giving cleaner, more controlled cuts

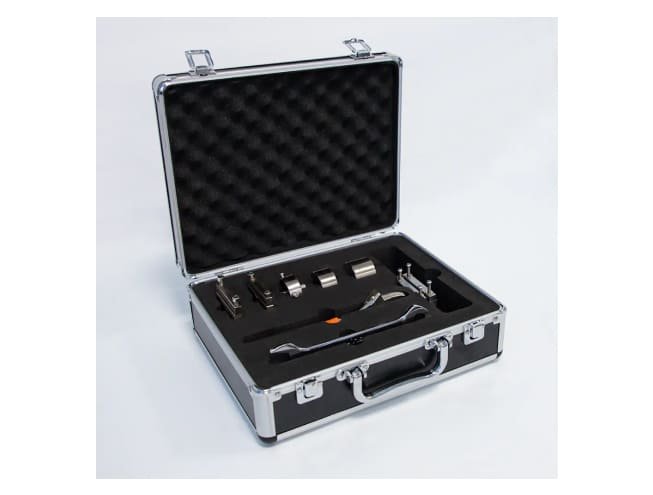

Unattended or Semi-automatic Operation with Sample Fixing

Comes with sample fixtures to position the object at optimal angle; machine can operate with minimal supervision once set up—ideal for repetitive or overnight work.

Overview

Specification	Parameter
Model	CT-150A Low-Speed Precision Cutting Machine
Electric Power	50 W
Voltage	220 V / 110 V
Spindle Speed	0 to 700 rpm
Cutting Disc Specification	Φ100–150 mm
Positioning Accuracy	0.01 mm
Travel of Mobile Rack	25 mm
Overall Dimension	350 × 350 × 200 mm
Weight	18 kg
