Engineered for accuracy and consistency, the TableCUT-200 features both manual and automatic feeding modes with four cutting options. With its fine speed control (0.01–5 mm/s), overload protection, and auto fixture options, it excels at cutting irregularly shaped workpieces with minimal operator intervention.

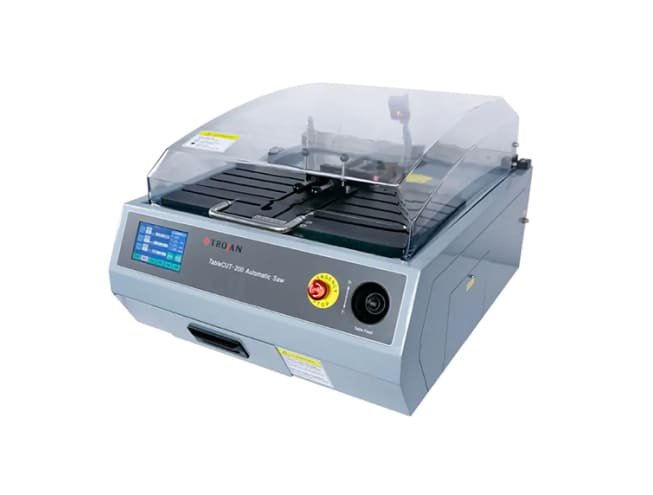

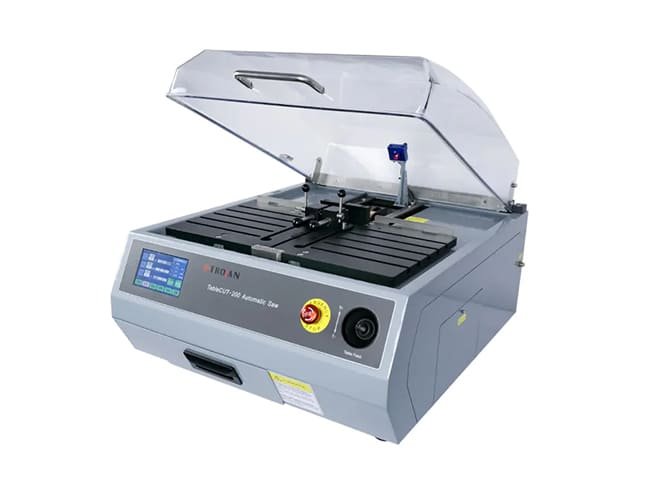

Trojan TableCUT-200 Automatic Precision Cut-Off Machine
This automatic precision cut-off machine offers robust performance: 1.0 kW motor, Φ200 mm disk, adjustable horizontal movement, and joystick or automatic control. Mounted in a stable base, with large touch screen, laser alignment, and versatile fixtures, it provides precise, reliable cuts across a wide range of materials.
Features
Overview
| Parameter | Specification |
|---|---|
| Model | TableCUT-200 Automatic Precision Cut-Off Machine |
| Cutting Wheel Diameter | Φ 200 mm |
| Motor Power | 1.0 kW |
| Wheel Speed | 500-3000 rpm (adjustable) |
| Feed Rate / Cutting Speed | 0.01-5 mm/s precisely adjustable |
| Wheel Movement | Horizontal |
| Maximum Cutting Diameter | Φ 50 mm |
| Maximum Square Cross-Section | 50 × 126 mm |
| Vise / Table Size | 465 × 270 mm |
| Travel Movement (Y-axis) | 240 mm |
| Control Modes | Manual (joystick) or Automatic feeding; 4 cutting options |
| Alignment | Laser alignment for sample positioning |
| Dimensions (Closed) | 570 × 717 × 405 mm |
| Dimensions (Open) | 570 × 717 × 900 mm |
| Weight | 63 kg |
