Designed for versatile inspection and imaging, the SX45-TR offers a wide 8×–50× magnification range with click-stop zoom and a long working distance ideal for manipulation, SMT rework, dissection, and quality control tasks. Its robust build and LED illumination ensure reliable performance and ergonomic operation.

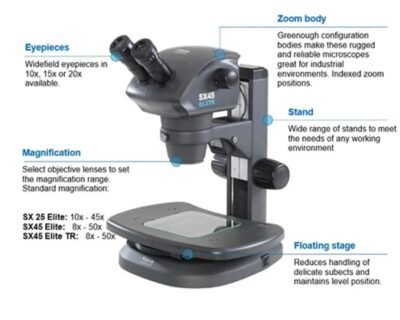

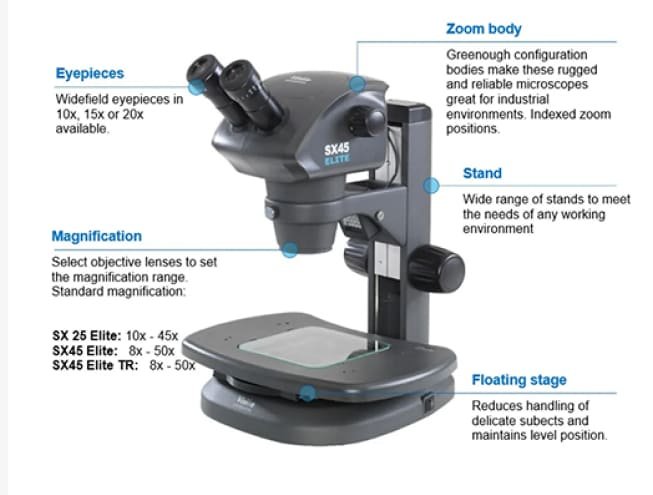

Vision Engineering SX45-TR Trinocular Stereo Microscope
The Vision Engineering SX45-TR Trinocular Stereo Microscope supports seamless image capture, archiving, and reporting when connected to a digital camera system. With adjustable interpupillary and diopter settings, true-colour LED lighting, and configurable accessories, it is excellent for detailed inspection in industrial and life science environments.
Features
Overview
| Specification | Typical Value / Notes |
|---|---|
| Optical Principle | Greenough stereo zoom optics. |
| Zoom Ratio | 6.3:1 click-stop stereo zoom. |
| Standard Magnification | 8×–50× (varies with eyepiece/objective). |
| Maximum Magnification | Up to ~200× capability. |
| Working Distance | Approx. 115 mm (1.0× objective). |
| Head Type | Trinocular (camera port included). |
| Camera Compatibility | Supports digital/video camera integration. |
| Interpupillary Adjustment | Adjustable 52–75 mm. |
| Diopter Adjustment | Diopter adjustable eyepieces. |
| Illumination | True-colour LED illumination system, long life. |
| Applications | Industrial inspection, SMT rework, life science, quality control. |
