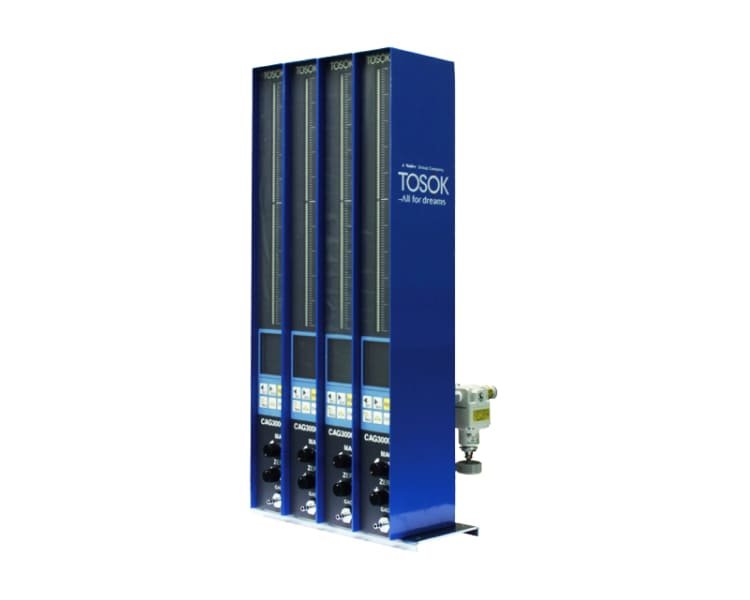

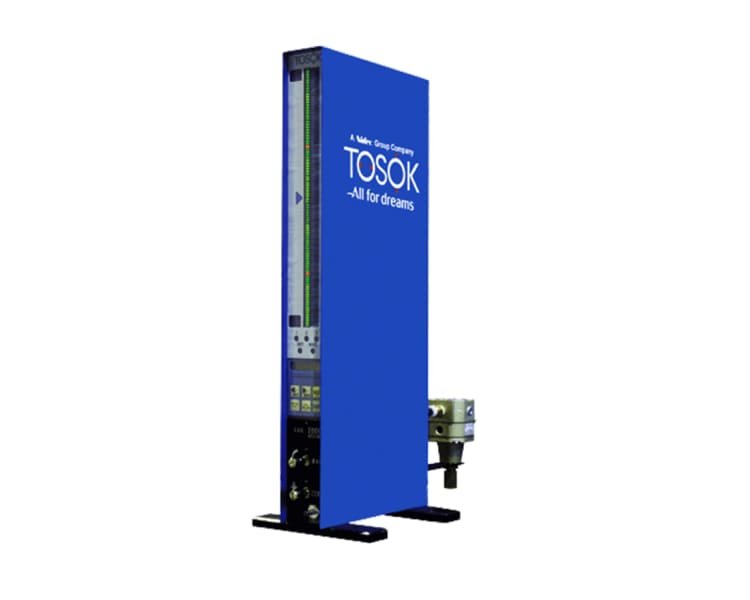

Air Gauge Display CAG-2000 Tosok

Tosok Air Gauge Display CAG-2000 with 1 or 2 channel air gauge, utilizes air flow and the resistance created between an object under test and the air gauge’s sensing probe. The air resistance (back pressure changes) with distance between the air probe and device under test. This air pressure change out of the air sensor can be scaled on by Tosok Air Gauge Display CAG-2000 to determine dimensional analysis as well as product quality tolerance.

Features

In coordination with the max./min. masters and the air probe sensor, control keys are used to automatically calibrate the zero and full scale of the display.

The display can be programmed to show technical drawing tolerances.

Actual values presented on the 8-digit alphanumeric display.

Possesses a slim 2” (50mm) wide frame allowing for placement on any bench, plus enables a small foot-print when daisy-chaining units.

10 types of setting can be programmed to save master values allowing quick retrieval for future tests.

Sensitivity adjustment knob allows fine tuning for more precise air control.

External signal input allows for automatic master calibration of zero and span with separate input switch.

Utilizing the standard serial output communications, data can be downloaded to a PC for processing and further evaluation.

Several options are available such as judgment result output, rank output, BCD output, and Digimatic output.

Ranges down to 10 micron

If choosing a 2 channel sensor input, evaluation of three parameters consisting of 2 measurements along with their arithmetic result can be performed with a single column display.

Red/Orange/Green 3- color, 101 segment bar graph display with programmable set points makes it convenient to quickly view measurements and make go/no-go judgments.

Tosok Air Gauge Display CAG-2000

Model	CAG-2000
Input	1 air channel; Optional 2 air channels
Measuring range μm (mm)	10 (0.0100), 20 (0.0200), 50 (0.0500), 100 (0.100), 200 (0.200)
Resolution in μm (mm)	0.01 (0.0001), 0.2 (0.0002), 0.5, (0.0005), 1 (0.001), 2 (0.002)
Shift Range	±1000% (full scale)
Display	Bar graph: 101 segment 3 color with Green (OK), Red (No Go)
Display	Measurement Values: 7 digits plus decimal point
Auto Mastering Range	Zero position: ±50% (full scale)
Auto Mastering Range	Sensitivity: ±20% (full scale)
Power Requirement	85 to 264 VAC, 50/60 Hz 100-VAC
Power Supply Capacity	30 VA
Air Supply Pressure	28.4 psi (196 kPa)
Source Pressure	43.5 psi (300 kPa) to 101.5 psi (700 kPa)
Air Supply Volume	1 CH: 106 cfh (50 l/min) 2 CH: 212 cfh (100 l/min)
Operating Temperature	32 to 113°F (0 to 45°C)
Dimensions	2″ wide x 19″ high x 8″ deep (50 × 480 × 200 mm)
Weight	8.8 lb (4 kg)

Tosok Air Gauge Display CAG-2000 Ordering Guide

CAG2001-1	Air gauge micrometer display with 10 micron range, 1 channel
CAG2002-1	Air gauge micrometer display with 20 micron range, 1 channel
CAG2005-1	Air gauge micrometer display with 50 micron range, 1 channel
CAG2010-1	Air gauge micrometer display with 100 micron range, 1 channel
CAG2020-1	Air gauge micrometer display with 200 micron range, 1 channel

Tosok Air Gauge Display CAG-2000 Ordering Options

-DP	Digimatic Output
-DC	Output
-P	Peak Measurement Function
-R	Rank Display Function
-DR	Rank Output
-BC	BCD Output

Tosok Air Gauge Display CAG-2000 Accessories Ordering Guide

CAG2000-OP-AF	Air Filter & oil Separator with manual drain
CAG2000-OP-AR	Precision Regulator
CAG2000-OP-CB-1	RS-232 Communication Cable 9 pin for PC
Foot Switch	Foot Switch Input
