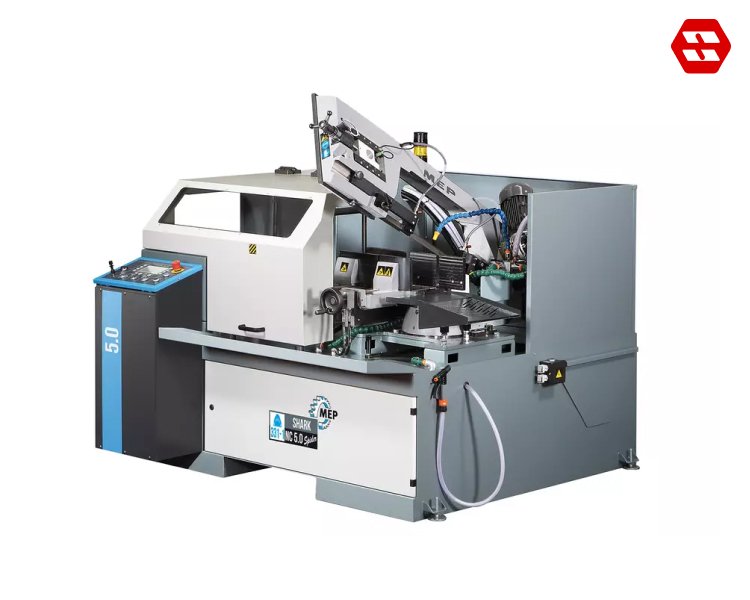

Automatic Bandsaw Machine SHARK 331-1 NC 5.0 SPIDER MEP

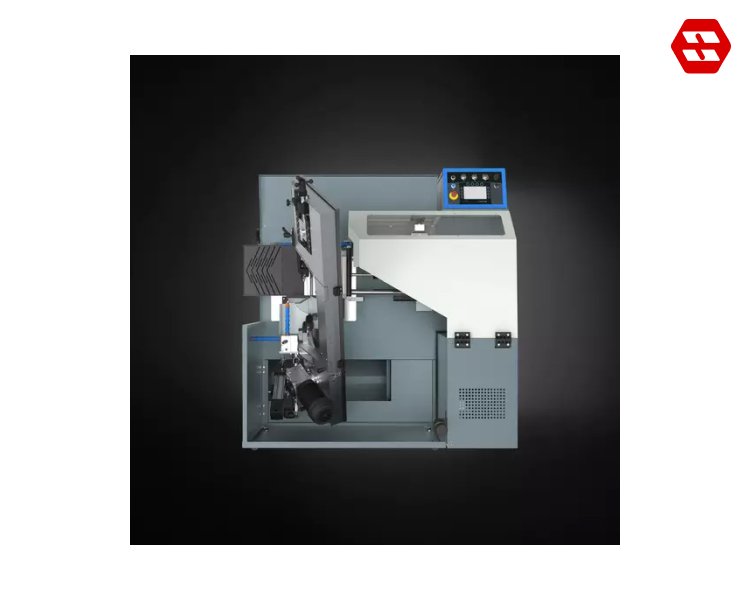

The MEP SHARK 331-1 NC 5.0 SPIDER is an electrohydraulic automatic bandsaw for metal cutting with semi-automatic cycle capability. It delivers precise miter cuts from 0° to +60° with compact design, 7″ touchscreen control, and advanced PLC that stores up to 100 cutting programs for efficient production.
9 people are viewing this product right now
🔥 10 items sold in last 3 hours
The SHARK 331-1 NC 5.0 SPIDER machine combines automatic and semi-automatic functionality for flexible cutting. Featuring a Windows-based MEP50 controller, variable blade speed, and robust safety guards, it ensures reliable performance, high productivity, and user-friendly operation for profiles, bars, and metal components.
Automatic Bandsaw Machine SHARK 331-1 NC 5.0 SPIDER MEP
MEP’s SHARK 331-1 NC 5.0 SPIDER is a fully automatic electrohydraulic bandsaw optimized for accuracy and repeatability. With cast-iron blade guides, adaptive feed control, and comprehensive alarm/event visualization, it supports demanding cutting processes while maintaining precision and long blade life.
Features
Overview
| Specification | Value |
|---|---|
| Blade Size | 3650 x 27 x 0.9 mm |
| Motor Power | 2.2 kW three-phase |
| Blade Speed Range | 15–100 m/min |
| Cutting Capacities (0°) | Round 300 mm / Square 260 mm / Flat 330 x 260 mm |
| Vice Opening Max | 335–340 mm |
| Machine Weight | 1240 kg |
| Footprint | Approx. 1.8 × 1.9 × 1.75 m |
| Min Cutting Length | 10 mm |
