Automatic Plate Saw VPS60-160A

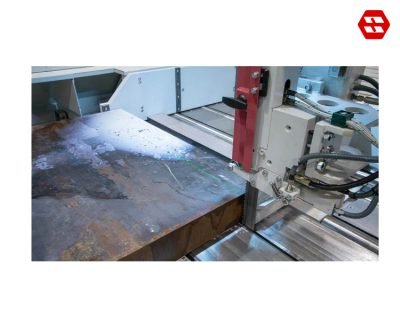

High-Performance Band Guide With Servo Feed System

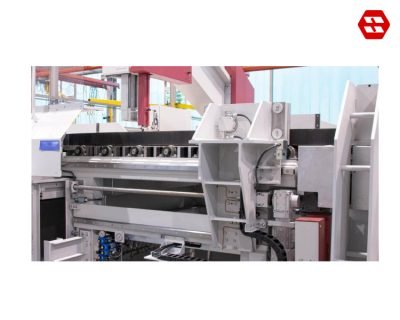

Feed Gripper With Ball Screw and Servo Motor

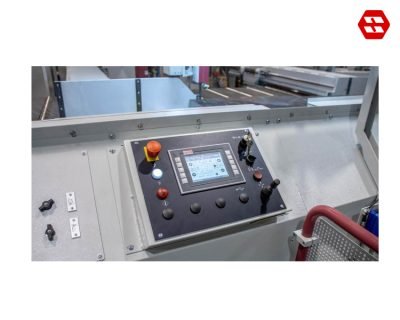

Intelligent Control System

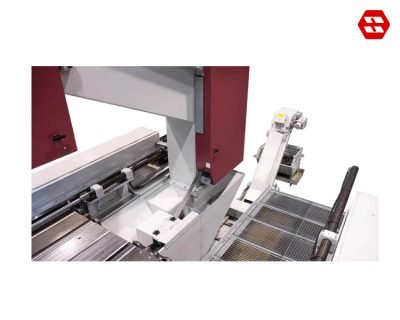

Efficient Chip Conveyor With Integrated Coolant Tank

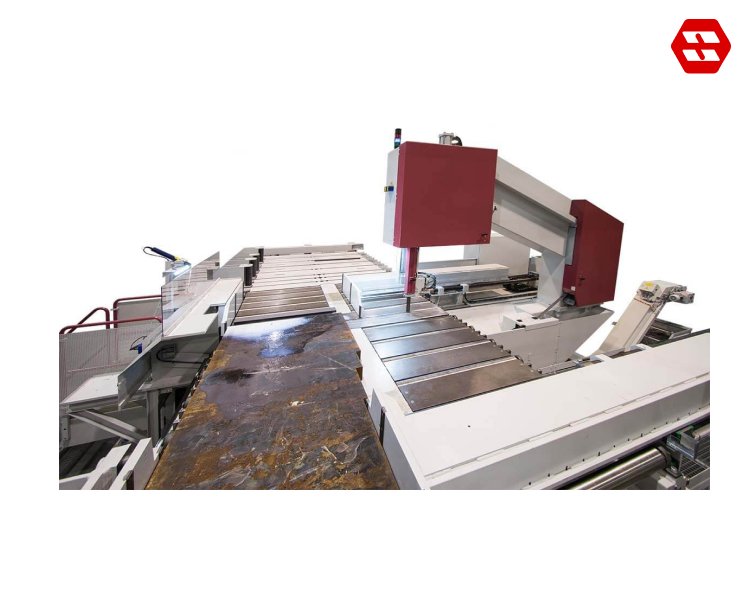

Covered Material Support
Unsurpassed Precise Cross Cutting Plate Saw
Features of The Automatic Plate Saw VPS60-160A
Technical Data Automatic Plate Saw VPS60-160A
| Cutting Range | |
| Cutting range flat W x H | 1,600 x 600 mm |
| Smallest dimension to be sawn flat W x H | 500 x 20 mm |
| Shortest cutting length | 15 mm |
| Performance Characteristics | |
| Feeding length single stroke | 1,500 mm |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 10,070 x 54 x 1.6 mm |
| Rest piece length in automatic operation | 40 mm |
| Total power | 15 kW |
| Saw feed | servo-feed via pinion gear |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 10,900 mm |
| Width | 3,600 mm |
| Height | 4,220 mm |
| Weight | 17,000 kg |
| Material support height | 1,620 mm |
