Automatic Bandsaw SLB240A
Saw Band Tensioning
Hydraulic Saw Feed

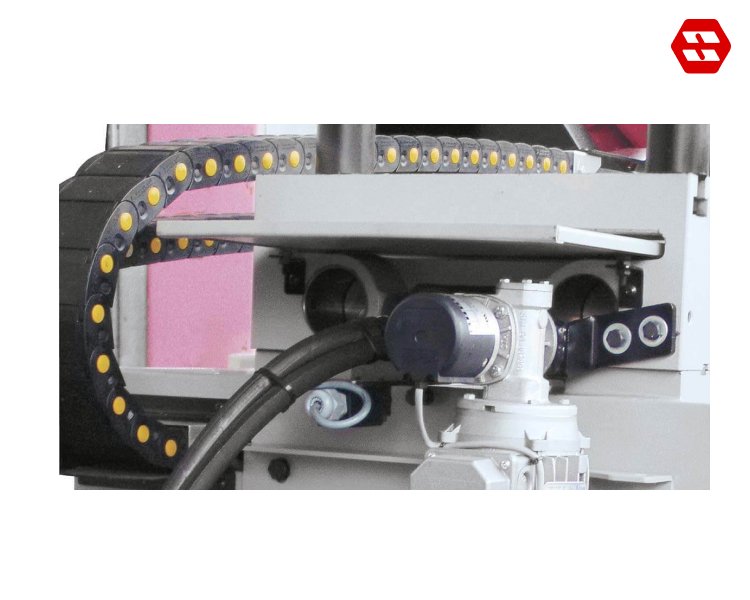

Automatic Material Feed
Control Panel
Features of The Automatic Bandsaw SLB240A
Technical Data Automatic Bandsaw SLB240A
| Cutting Range | |
| Cutting range 90° round | 260 mm |
| Cutting range 90° flat | 270 x 260 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 10 mm |
| Performance Characteristics | |
| Feeding length single stroke | 510 mm |
| Drive power | 1.5 kW |
| Blade speed | 16 – 120 m/min |
| Saw blade dimensions | 3,300 x 27 x 0.9 mm |
| Rest piece length in automatic mode | 80 mm |
| Shortes cutting length | 10 mm |
| Saw feed | hydraulic |
| Material feed | hydraulic |
| Dimensions and Weight | |
| Length | 1,700 mm |
| Width | 1,800 mm |
| Height | 1,700 mm |
| Weight | 950 kg |
| Material support height | 850 mm |
