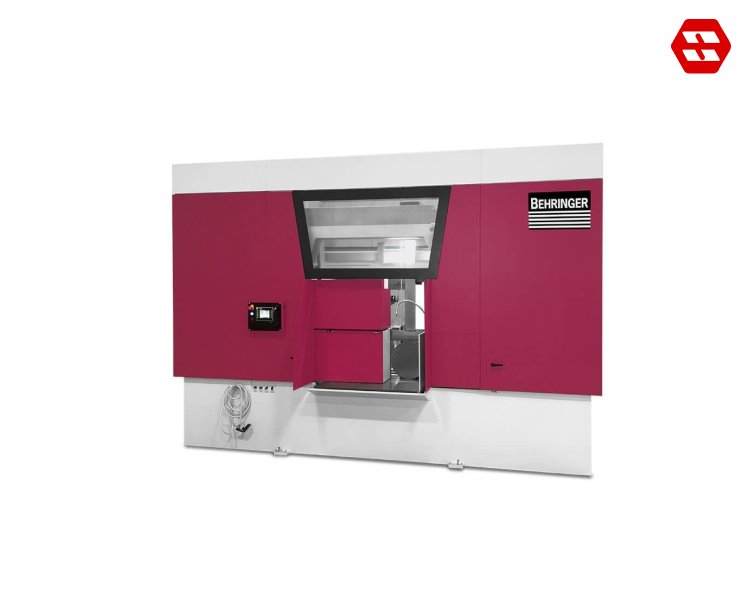

HBE1060A Performance
Intuitive BehrCtrl10 Touch Control
Servo-Downfeed With Cutting Pressure Control
Massive Feed Gripper With Ball Screw

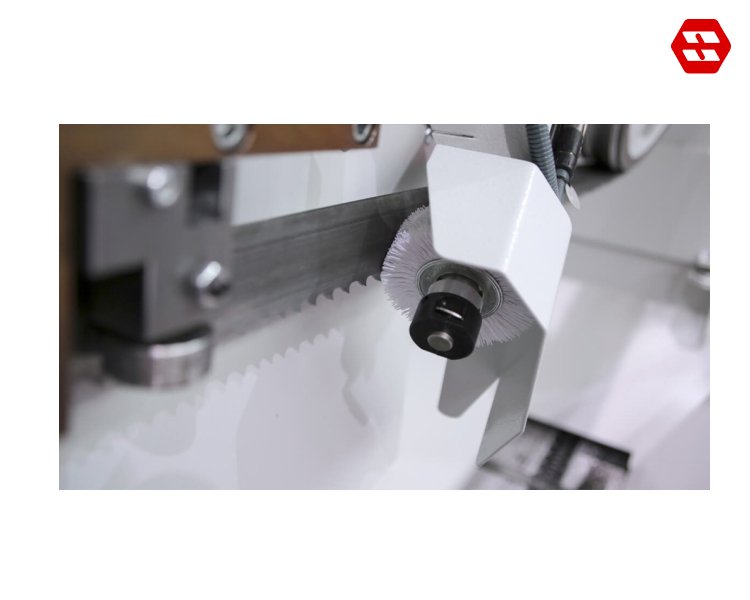

Electrically Driven Chip Brush
Features of The Production Bandsaw HBE1060A Performance
Technical Data Production Bandsaw HBE1060A Performance
| Cutting Range | |
| Cutting range 90° round | 1,060 mm |
| Cutting range 90° flat | 1,060 x 1,060 mm |
| Smallest dimension to be sawn round | 60 mm |
| Smallest dimension to be sawn flat | 60 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 7.5 kW |
| Blade speed | 10 – 110 m/min |
| Saw blade dimensions | 10,505 x 67 (80) x 1.6 mm |
| est piece length in automatic operation | 55 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,525 mm |
| Width | 4,800 mm |
| Height | 3,550 mm |
| Weight | 11,000 kg |
| Material support height | 800 mm |
