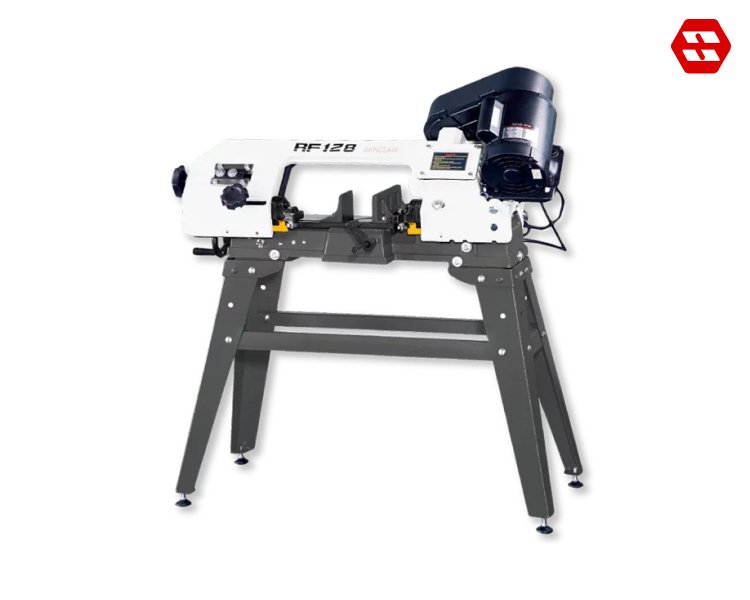

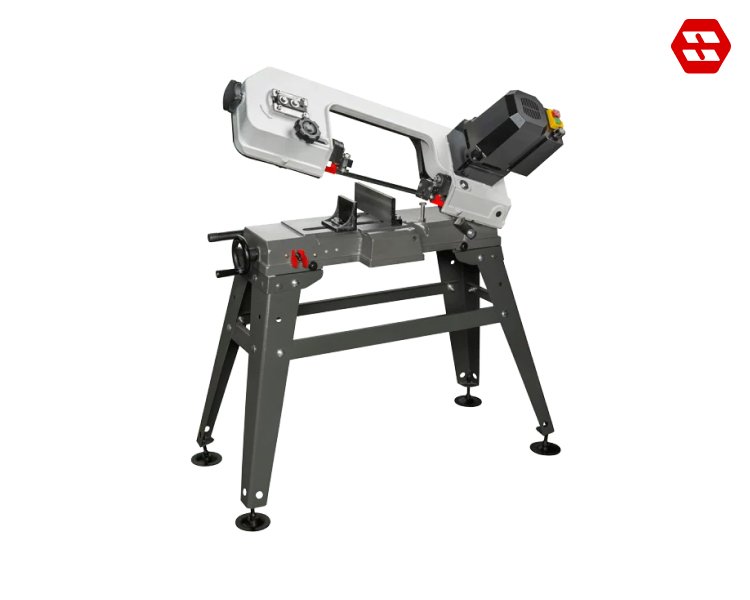

5″ Metal Bandsaw RF 128

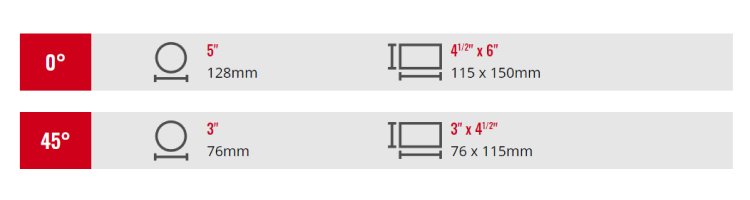

Cutting Capacity

Features

Table Specifications

ItemRF-128RF-128HDRRF-128HDRV
Main Motor HP1/31/3
Extraline
1/3
Extraline
Speed MT/min60HZ / 24-37-61
50HZ / 20-29-50
60HZ / 24-37-61
50HZ / 20-29-50
60HZ / 24-37-61
50HZ / 20-29-50
Speed Ft/min60HZ / 80-120-200
50HZ / 65-95-165
60HZ / 80-120-200
50HZ / 65-95-165
60HZ / 80-120-200
50HZ / 65-95-165
Saw Blade mm (WxTxL)12.7 x 0.65 x 1635 W / carbon12.7 x 0.65 x 1635 W / carbon12.7 x 0.65 x 1635 W / carbon
Saw Blade inch (WxTxL)0.5 x 0.025 x 64.370.5 x 0.025 x 64.370.5 x 0.025 x 64.37
Machine Dimensions mm (LxWxH)895 x 457 x 985980 x 385 x 1060980 x 385 x 1060
Machine Dimensions inch (LxWxH)35.24 x 17.99 x 38.7839 x 15 x 4239 x 15 x 42
Packing Dimensions mm (LxWxH)965 x 330 x 381965 x 330 x 381965 x 330 x 381
Packing Dimensions inch (LxWxH)38 x 13 x 1541 x 17.5 x 2241 x 17.5 x 22
Machine Weight
NW/GW
60 / 61 kgs
132 / 134 lbs
78 / 82 kgs
170 / 180 lbs
78 / 82 kgs
170 / 180 lbs
20″ Container249 sets(CE190set)108 sets108 sets
