Bench Table PS17 VS Sylvac

Introducing The Bench Table PS17 VS Sylvac a robust horizontal bench with a 37mm capacity and 10mm range. Featuring adjustable tailstock for customized setups and a precise micrometer screw, this compact unit is perfect for precise measurements in challenging environments.

28 people are viewing this product right now

🔥 4 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:June 15, 2026 - June 17, 2026

Description

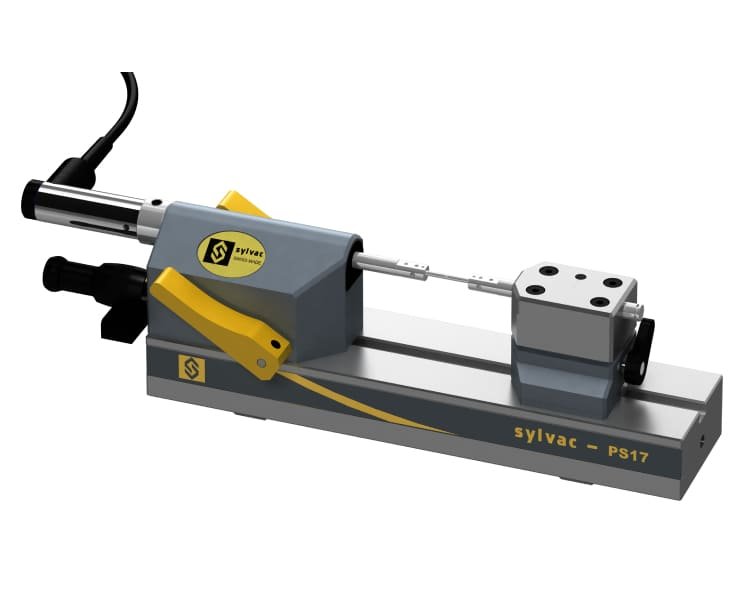

Bench Table PS17 VS Sylvac

Introducing the Bench Table PS17 VS by Sylvac, a robust horizontal bench with a 37mm capacity and 10mm range. It features an adjustable tailstock for customized setups and a precise micrometer screw.

Features

Powerful and Compact

With a 37mm measuring capacity and a 10mm range, our small footprint horizontal bench offers flexible use. The adjustable tailstock in the X (and optionally Z) axis allows for customizable setups to meet specific requirements.

Versatile and Customizable

Our bench can be equipped with either a digital indicator or a Sylvac measuring probe. An extensive range of measuring anvils and support tables, as well as tailored solutions, can be provided upon request.

Robust and user-friendly Design

Crafted from cast iron, our bench excels in tough environments. Effortless axis movement is achieved through two ergonomic levers with ball-bearing guides. The adjustable measuring force of 0.2-1.0N eliminates operator biases.

Superior Performance

Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. With a proven track record in demanding watchmaking applications.

Overview

	908-1242
EAN	7640125714548
Type	VS ¹
Measuring system	at choice ²
Tailstock adjustable in Z +1.75 mm	⬤
Measurement capacity C (mm)	37
Measuring scale (mm)	10
Adjustable measuring force (N)	0.2 – 1.0
Weight (kg)	1.4

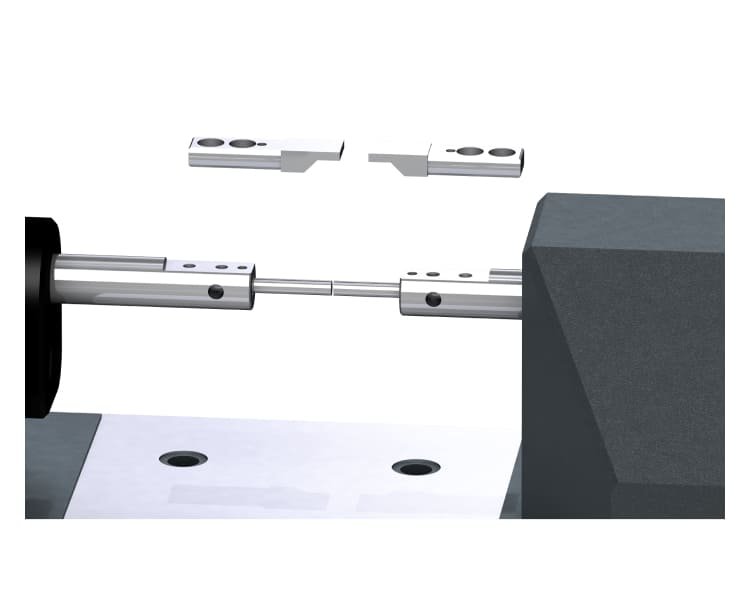

Clamping anvils Ø 1.5 mm	⬤
Compatibility with Cary	⬤
Micrometer screw	⬤
