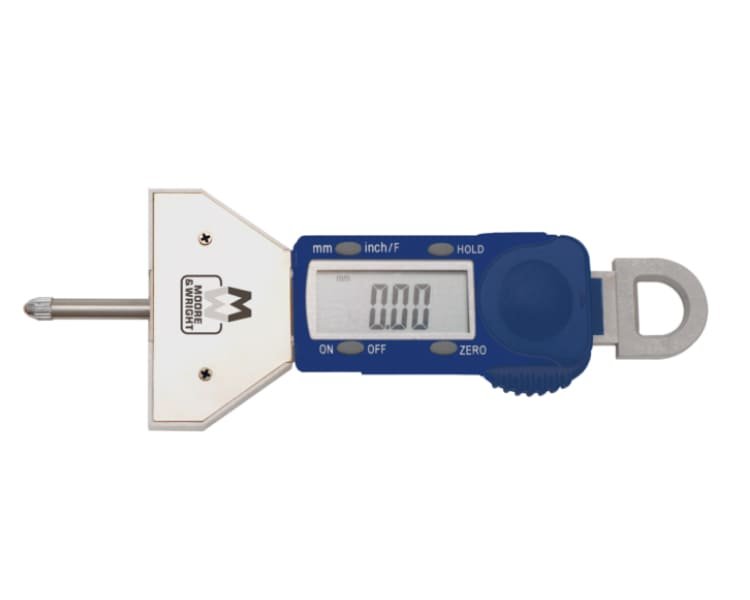

Digital Mini Depth Gauge 177 Series Moore & Wright
The Moore & Wright 177 Series Digital Mini Depth Gauge offers versatile measurement options in a compact design. Supplied in retail packaging, it includes a plastic 50mm base, M2.5 threaded rod, extension bars, and CR2032 battery for metric/inch/fraction readings.
25 people are viewing this product right now
🔥 12 items sold in last 3 hours
Digital Mini Depth Gauge 177 Series Moore & Wright

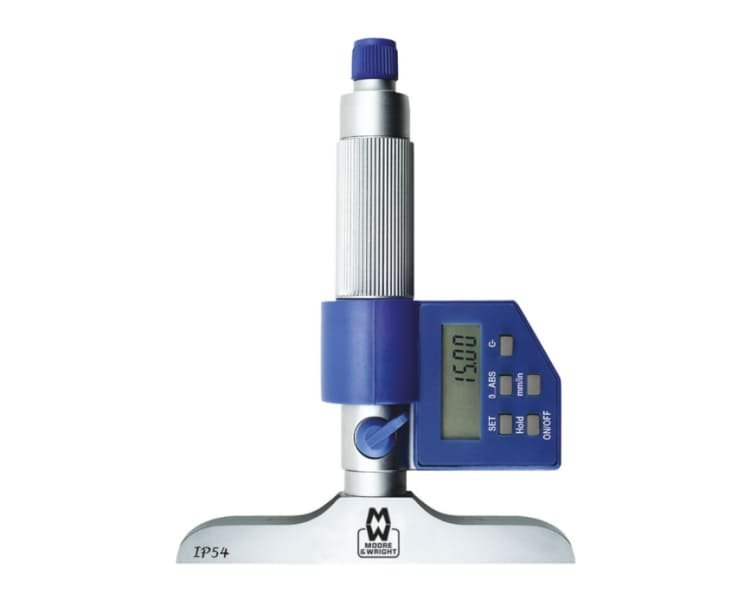

The Moore & Wright 305-DDL Series Digital Depth Micrometer offers advanced precision in measuring depths of slots, holes, and recesses. Featuring a digital display for immediate reading and enhanced accuracy, it has a robust construction and a range of interchangeable rods.
Features
Spesification
| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Size of Base (mm) | Price |
| MW305-00DDL | 0-25 | 0-1 | 0.004 | 0.001 | 0.00005 | 100 | POA |
| MW305-01DDL | 0-50 | 0-2 | 0.004 | 0.001 | 0.00005 | 100 | POA |
| MW305-02DDL | 0-100 0-100 | 0-4 | 0.005 | 0.0.1 | 0.00005 | 100 | POA |
| MW305-03DDL | 0-150 | 0-6 | 0.006 | 0.001 | 0.00005 | 100 | POA |
| MW305-04DDL | 0-200 | 0-8 | 0.007 | 0.001 | 0.00005 | 100 | POA |
| MW305-05DDL | 0-300 0-300 | 0-12 | 0.009 | 0.001 | 0.00005 | 100 | POA |
| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Size of Base (mm) | Price |
| MW305-00DDL | 0-25 | 0-1 | 0.004 | 0.001 | 0.00005 | 100 | POA |
| MW305-01DDL | 0-50 | 0-2 | 0.004 | 0.001 | 0.00005 | 100 | POA |
| MW305-02DDL | 0-100 0-100 | 0-4 | 0.005 | 0.0.1 | 0.00005 | 100 | POA |
| MW305-03DDL | 0-150 | 0-6 | 0.006 | 0.001 | 0.00005 | 100 | POA |
| MW305-04DDL | 0-200 | 0-8 | 0.007 | 0.001 | 0.00005 | 100 | POA |
| MW305-05DDL | 0-300 0-300 | 0-12 | 0.009 | 0.001 | 0.00005 | 100 | POA |
