External Taper Gauge AKT Series Diatest

Established in Germany in 1948, Diatest Hermann Költgen GmbH is renowned in the aerospace, defense, and medical industries. DIN ISO 9001 certified, Diatest ensures high-quality instruments with up to 0.0002 mm accuracy. The Diatest External Taper Gauge AKT Series measures angles on the smallest diameter of external cones and offers instant digital readouts.

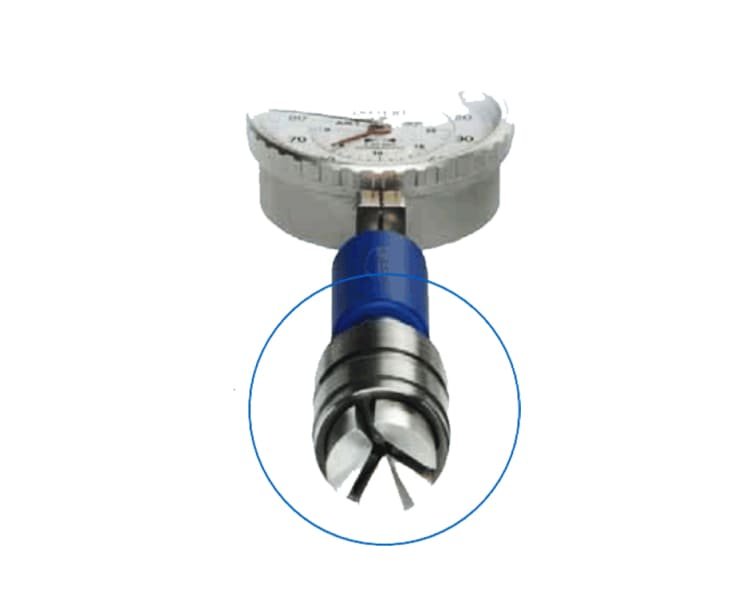

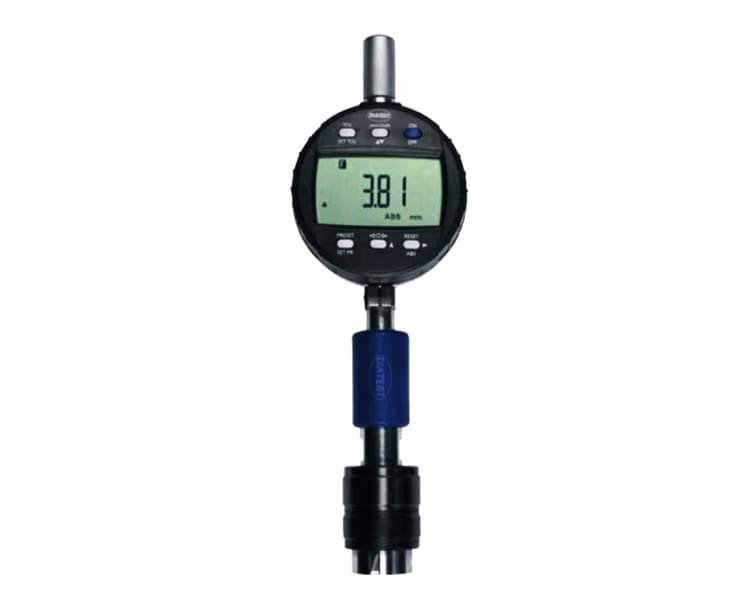

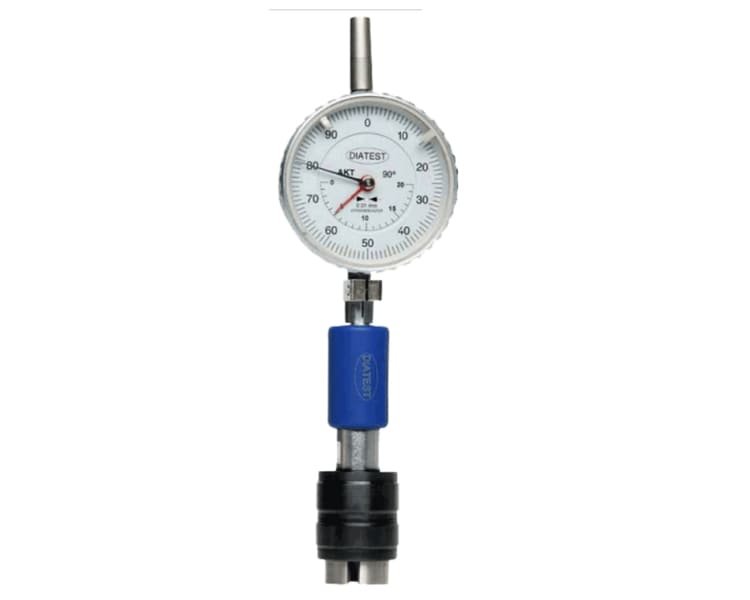

External Taper Gauge AKT Series 1

Diatest External Taper Gauge AKT Features

01

Powered by battery CR2450 with low energy consumption ensure your productivity with lesser down time and practical maintenance.

02

Operating distances: up to 200 m in a clear field, up to 20 m in a building.

03

Fast and secure wireless transfer of measured values to your computer system.

04

Delivered on stock by Diatest calibration lab.

05

Convenient internal calibration can easily be done by setting master or limit gauge.

06

Ease of use due to its direct approach of touch and go.

07

Shock protected indicator Scale graduation of indicator 0,01mm.

08

Made of hardened steel for durability and repetitive accuracy.

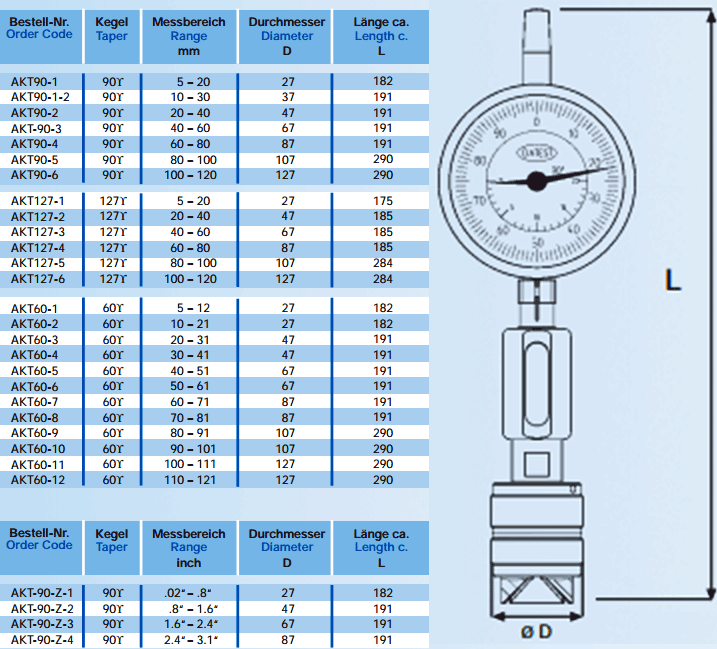

Diatest External Taper Gauge Selectable Models

01

Diatest IKT127 for cone < 90° and => 127° = Measuring range 0.5 to 121 mm, several instruments needed.

02

Diatest IKT60 for cone < 60° = Measuring range 0.5 to 121 mm, several instruments needed.

03

Diatest IKT90 for cone < 60° and > 90°= Measuring range 0.5 to 120 mm, several instruments needed.

Features
