Force Gauges FTS-HD Shimpo

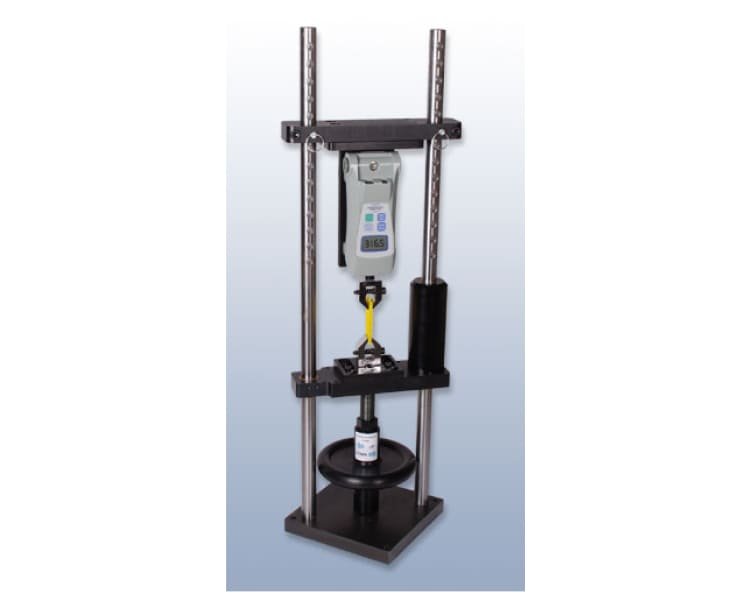

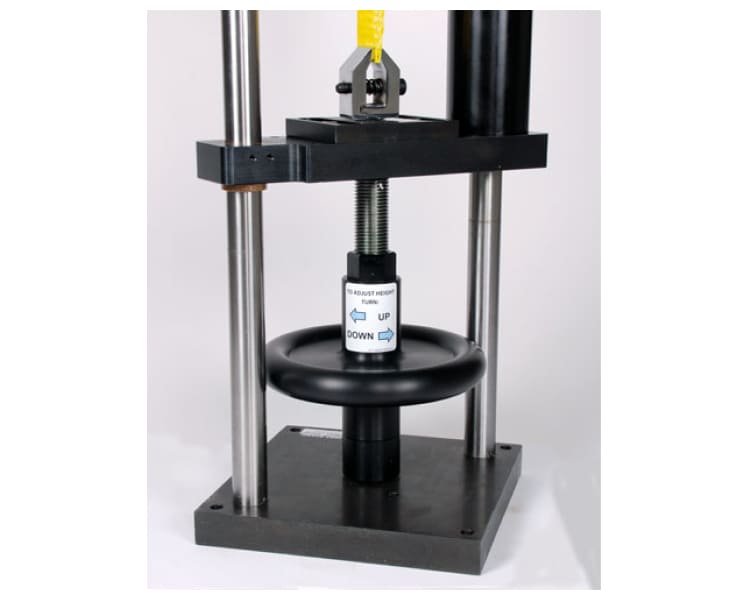

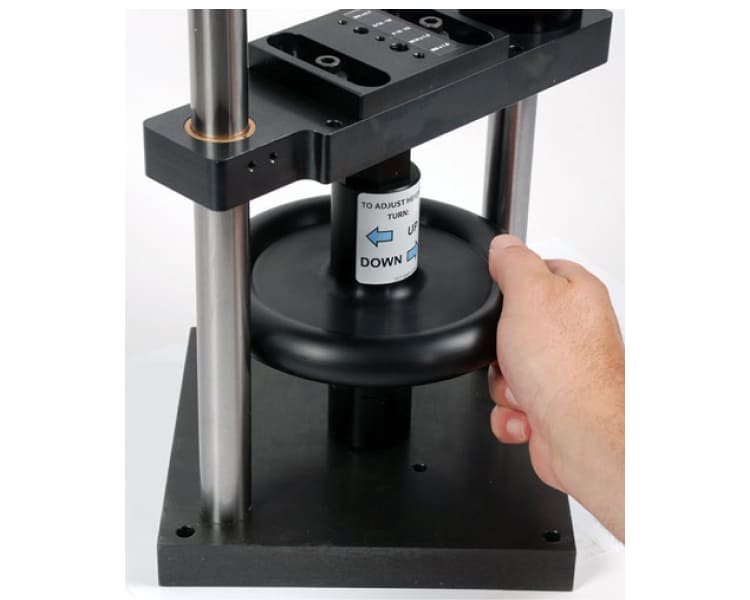

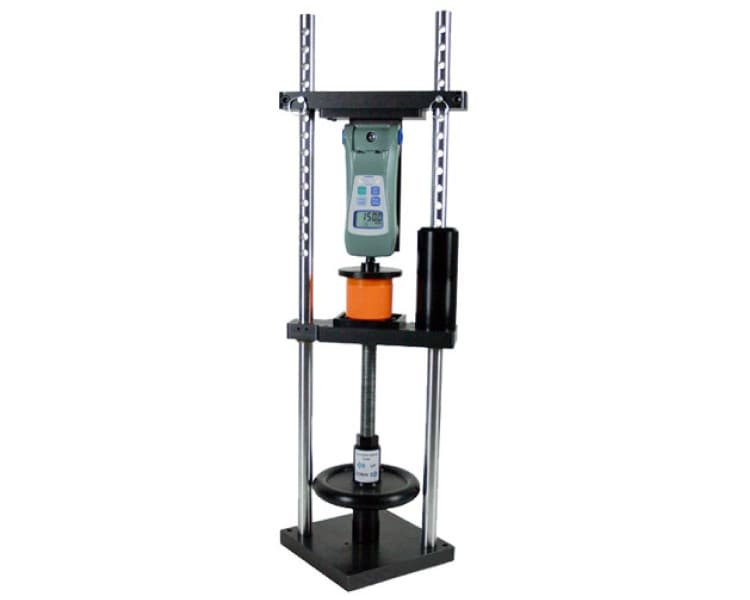

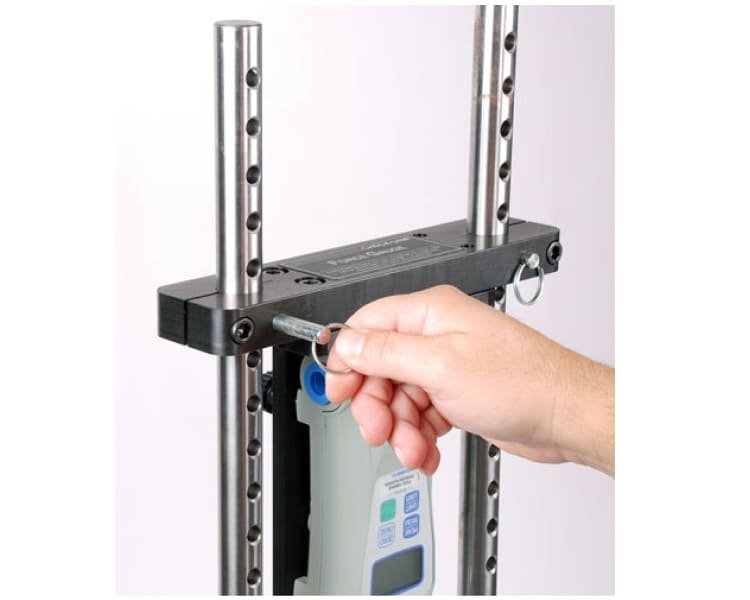

The FTS-HD is a high capacity force test system engineered for precise & repeatable measurements of push or pull forces up to 1000lbs. A smooth operating turn-wheel provides a precise 0.1″ travel per revolution. The FTS-HD heavy duty construction provides repeatable and reliable testing for many years. The FTS-HD features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter.
Features

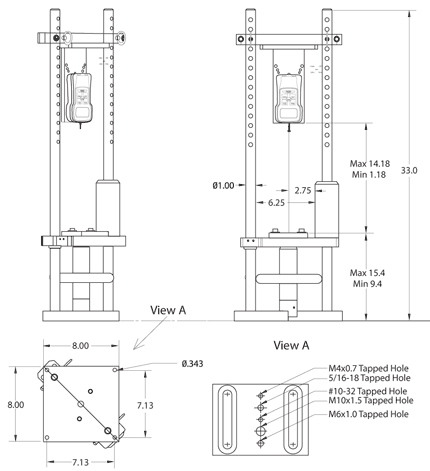

Dimensions
Specifications
| Accuracy | ±0.2% full scale |
| Resolution | 0.1 lb, 0.1 Kg, 1 N |
| Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 times per second |
| Overload Protection | 150% of full scale |
| Power | Rechargeable Ni-Cad battery or AC through adapter/charger |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Life | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |
| Dimensions | 8.43″ L x 3.23″ W x 2.15″ H (214 mm x 82 mm x 54.5 mm) |
| Weight | 78 lb (34 Kg) |
| Approvals | CE approved |
| Outputs | RS232C & Analog Output ±1 VDC (through a 12 bit D/A converter) |
| Overload Output | One NPN OC transistor for tension, one NPN OC transistor for compression |
| Warranty | 2 Years |
