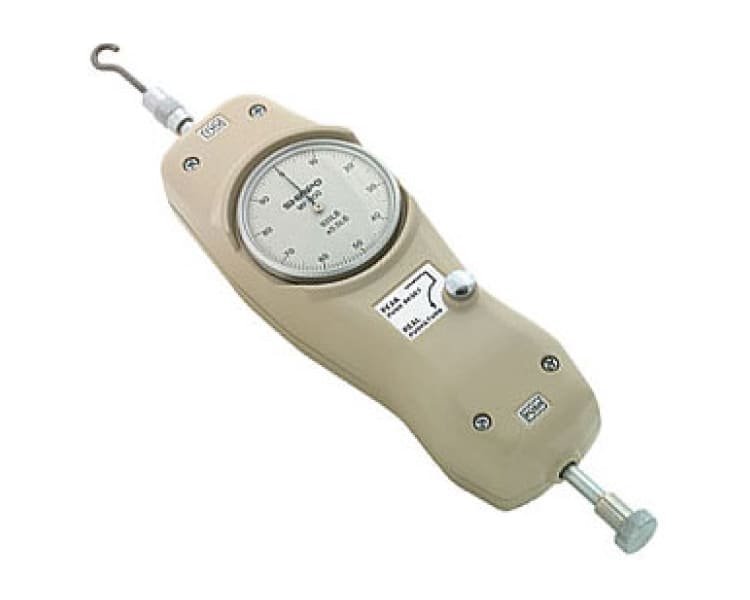

Force Gauges MF Shimpo
The Shimpo MF Force Gauge offers ± 0.2% accuracy and an easy-to-read analog scale. With peak mode, overload protection up to 165 pounds, and 100% mechanical operation (no batteries), it’s supplied as a complete kit for versatile use.
21 people are viewing this product right now
🔥 9 items sold in last 3 hours
Force Gauges MF Shimpo

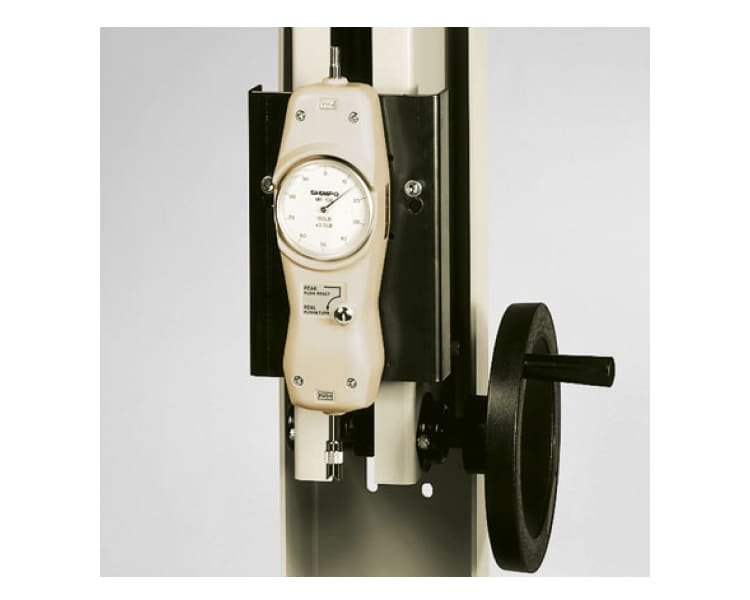

The economical and durable MF mechanical force gauges are ideal for push/pull force testing in manufacturing, material testing, maintenance, and inspection. They feature an easy push-button reset for repetitive testing, a large dial to reduce parallax errors, and immediate response time. Ergonomically designed for handheld use, they can handle loads over 15 pounds with an optional handle.
Features

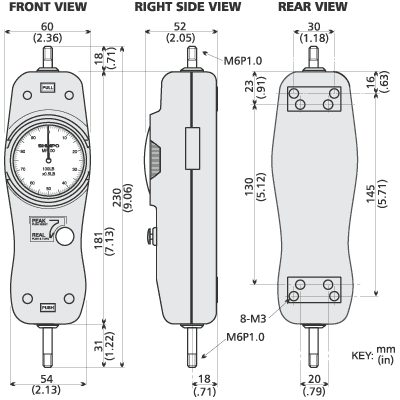

Dimensions

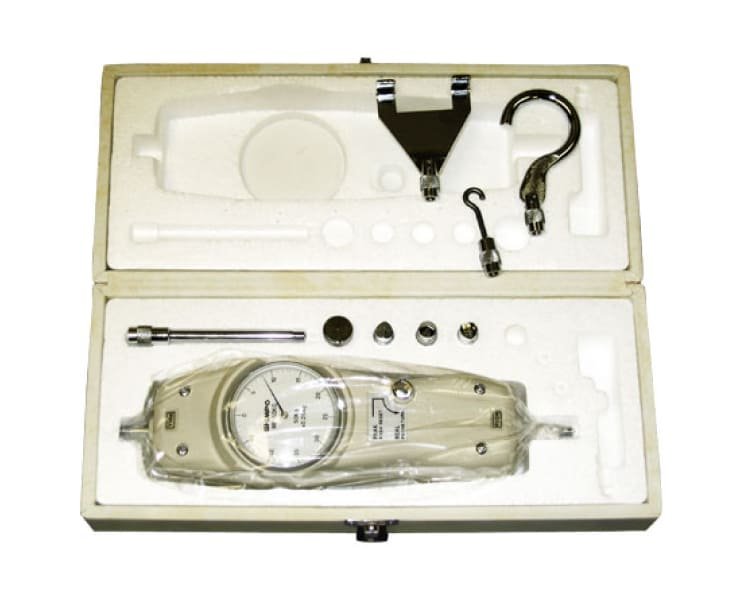

Complete Kit
Force Ranges
| Model | Capacity | Resolution |
|---|---|---|
| MF-2 | 2 lbs | 0.01 |
| MF-5 | 5 lbs | 0.025 |
| MF-10 | 10 lbs | 0.05 |
| MF-20 | 20 lbs | 0.20 |
| MF-30 | 30 lbs | 0.20 |
| MF-50 | 50 lbs | 0.25 |
| MF-100 | 100 lbs | 0.50 |
| MF-1KG | 1 kg | 0.005 |
| MF-2KG | 2 kg | 0.01 |
| MF-3KG | 3 kg | 0.02 |
| MF-5KG | 5 kg | 0.025 |
| MF-10KG | 10 kg | 0.05 |
| MF-20KG | 20 kg | 0.10 |
| MF-30KG | 30 kg | 0.20 |
| MF-50KG | 50 kg | 0.25 |
Specifications
| Accuracy | ±0.2% F.S. |
| Display | Analog dial, 2″ (50mm) diameter |
| Operating Modes | Real time or Peak-Hold |
| Overload Protection | 165lb (75kg) |
| Operating Temp Range | 40-110 ⁰F |
| Standard Accessories | flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook all supplied in a foam fitted carrying case |
| Weight | 1.6 lbs (0.73 kg), net 4 lbs (1.81 kg), gross |
| Warranty | 2 Years |
