Force Gauges FG-7000 Shimpo

The Shimpo FG-7000 Force Gauge boasts a 1000 Hz Sample Rate and ±0.2% F.S. accuracy for precise results. It offers three operation modes, programmable High & Low Limits, and a rugged die-cast aluminum construction for demanding applications.

21 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

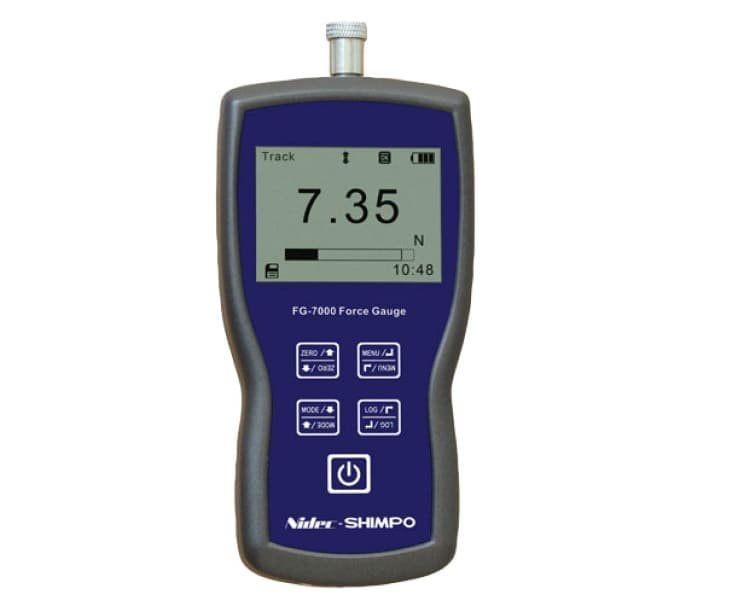

Force Gauges FG-7000 Shimpo

The FG-7000 Series digital force gauges simplify compression and tension testing with multiple-language menu programming and three operational modes: Track, Peak, and Auto Peak. They feature programmable limits for quick pass/fail indications and can integrate into quality systems for repetitive testing. Data logging is easy, with options for on-screen viewing, printing, or analysis via free software.

Features

1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis.

Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing.

Three mode operation: Track, Peak & Auto-Peak.

Field Calibration capability eliminates need to send to lab

calibration Certificate included along with popular adapter attachments.

1000 Hz Sample Rate combined with &0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results.

Multi-language and engineering unit’s selection provides flexible user comfort.

Rugged, ergonomic die cast aluminum construction allows usage in demanding applications.

Comparator output function provides user with easy Pass/Fail testing system integration capabilities.

Free Data logging/graphing software provided, sample rate up to 60 readings/sec.

180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand.

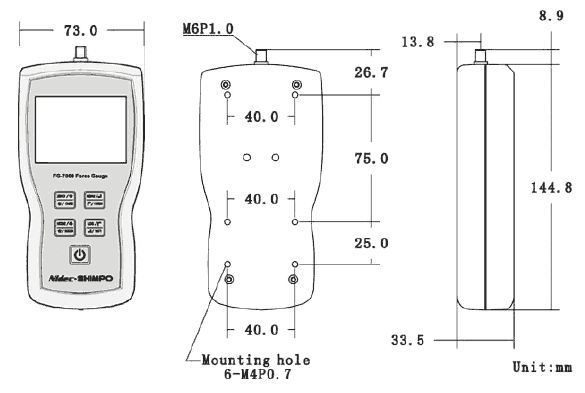

Dimensions

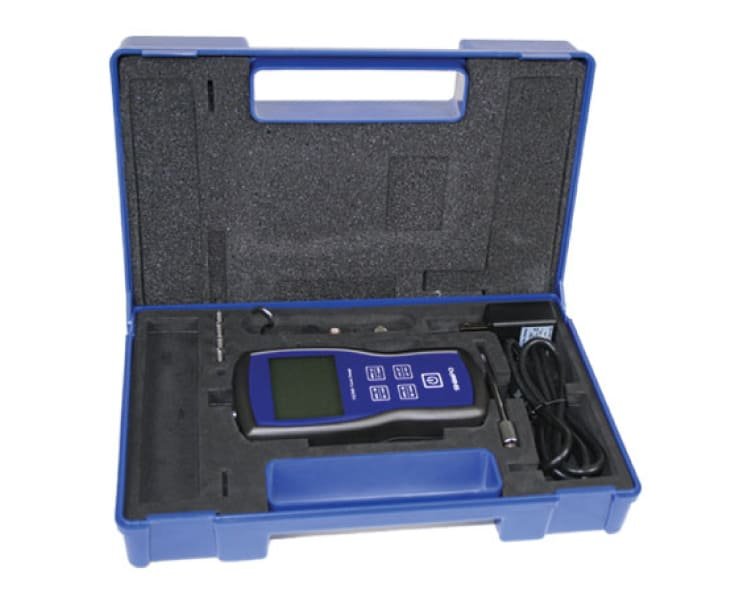

Complete Kit

All models are supplied as a complete kit including AC adapter/charger, USB cable, hook attachment, flat tip attachment, cone tip attachment, notched tip attachment, extension shaft attachment, calibration certificate, and and an operating instruction manual - all supplied in a foam-fitted carrying case.

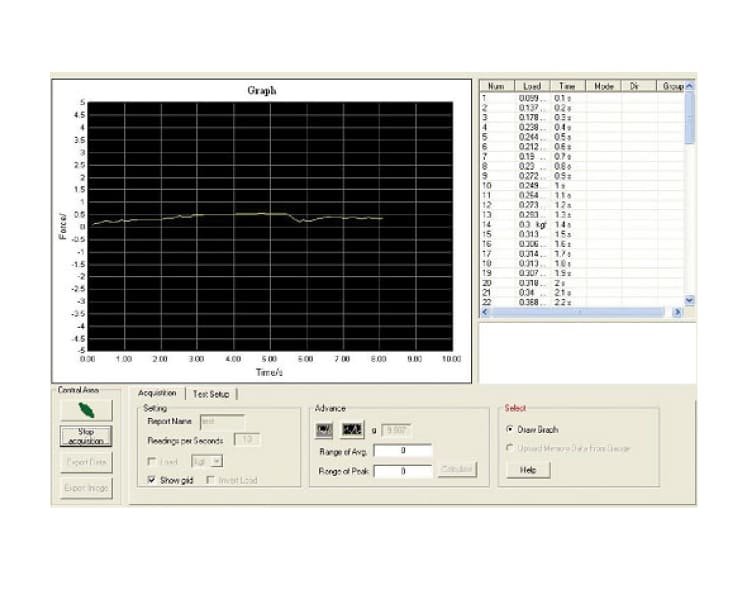

EDMS Data Acquisition Software

The FG-7000 Series Force Gauges allow for comprehensive testing with live analysis via the EDMS program. Users can set delays, time periods, and load thresholds for data recording. The load can be inverted for desired graph orientation, and average and peak readings are automatically calculated.

Force Ranges

Model	Capacity	Resolution
FG-7002	5000.0 mN 5.0000 N 500.00 gf 18.000 ozf 1.1000 lbf	0.5 mN 0.0005 N 0.05 gf 0.005 ozf 0.0001 lbf
FG-7003	10000 mN 10.000 N 1000.0 gf 1.0000 kgf 35.00 ofz 2.2000 lbf	1 mN 0.001 N 0.1 gf 0.0001 kgf 0.01 ozf 0.0005 lbf
FG-7004	20000 mN 20.000 N 2000.0 gf 2.0000 kgf 70.00 ozf 4.400 lbf	5 mN 0.005 N 0.5 gf 0.0005 kgf 0.01 ozf 0.0001 lbf
FG-7005	50000 mN 50.000 N 5000.0 gf 5.0000 kgf 180.00 ozf 11.000 lbf	5 mN 0.005 N 0.5 gf 0.0005 kgf 0.05 ozf 0.0001 lbf
FG-7006	100.00 N 10000 gf 10.000 kgf 350.0 ozf 22.000 lbf	0.01 N 1 gf 0.001 kgf 0.1 ozf 0.005 lbf
FG-7007	200.00 N 20000 gf 20.000 kgf 700.0 ozf 44.00 lbf	0.05 N 5 gf 0.005 kgf 0.1 ozf 0.01 lbf
FG-7008	500.00 N 50.000 gf 50.000 kgf 1800.0 ozf 110.00 lbf	0.05 N 0.005 gf 0.005 kgf 0.5 ozf 0.01 lbf
FG-7009	1000.0 N 100.00 gf 100.00 kgf 3500 ozf 220.00 lbf	0.1 N 0.01 gf 0.01 kgf 1 ozf 0.05 lbf

Specifications

Accuracy	± 0.2% F.S.
Measurement Method	Peak, Autopeak or Track Mode
Selectable Units	mN, N, gf, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity	150% of F.S. (LCD flashes beyond 110% of F.S.)
Data Sampling Rate	1000 Hz
Display	2.1 x 1.6″ (54 x 40 mm); dot matrix LCD with LED Backlight
Display Update Rate	10 times/second
Memory	1000 data
Set Point	Programmable high and low limits
Battery Indicator	Display flashes battery icon when battery is low
Power	3.6VDC 800mAH Ni-MH rechargeable batteries
Battery Life	Approximately 16 hours continuous use per full charge
Charger / Adapter	Universal USB/BM charger, Input: 110 ~ 240VAC
Temperature Effects	<0.054% per °F (0.03% FS per °C)
Outputs	1.) RS-232, 2.) “Within” set point output 3.) “Under or over” set point output
Operating Temperature	14 to 104 °F (-10 to 40 °C)
Storage Relative Humidity	20 to 80%
Housing	Aluminum
Storage Temperature	-4 to 122 °F (-20 to 50 °C)
Oper. Relative Humidity	5 to 95%
Dimensions	5.7 x 2.9 x 1.4″” (145 x 73 x 35.5 mm)
Weight	1.5 lb (0.7 kg)
Origin	China
Warranty	1 year
