Force Gauges FGE-500HXY Shimpo

The Shimpo FGE-500HXY Force Gauge features a 1000 Hz Sample Rate for faster sampling and high accuracy of ±0.2% F.S., ideal for strict tolerances. It records compression and tension tests, offers a reversible display, and is CE Mark & RoHS Approved.

27 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Force Gauges FGE-500HXY Shimpo

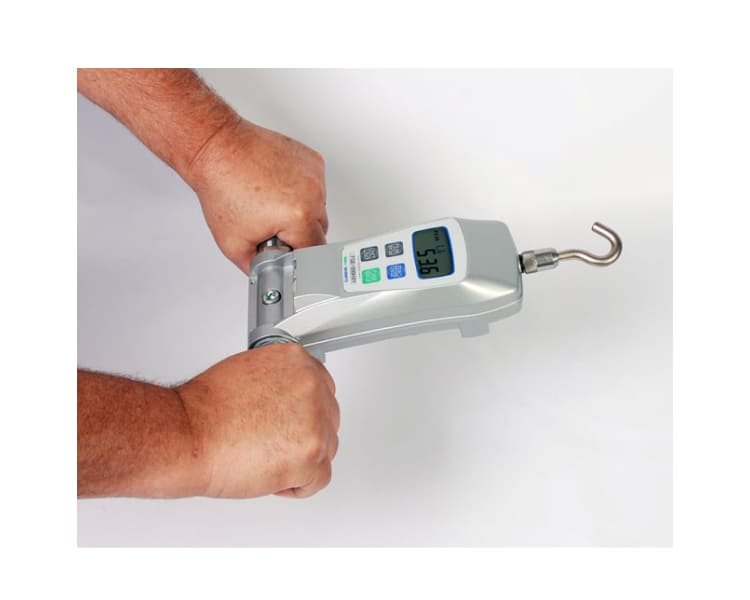

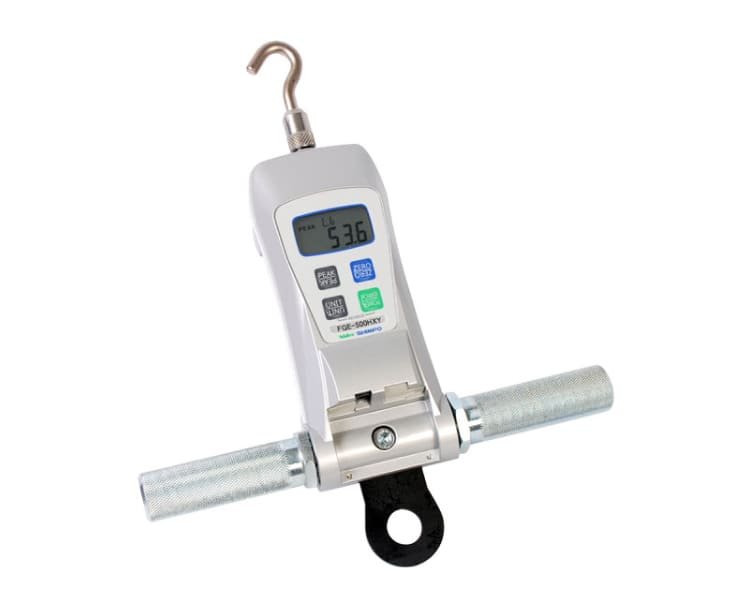

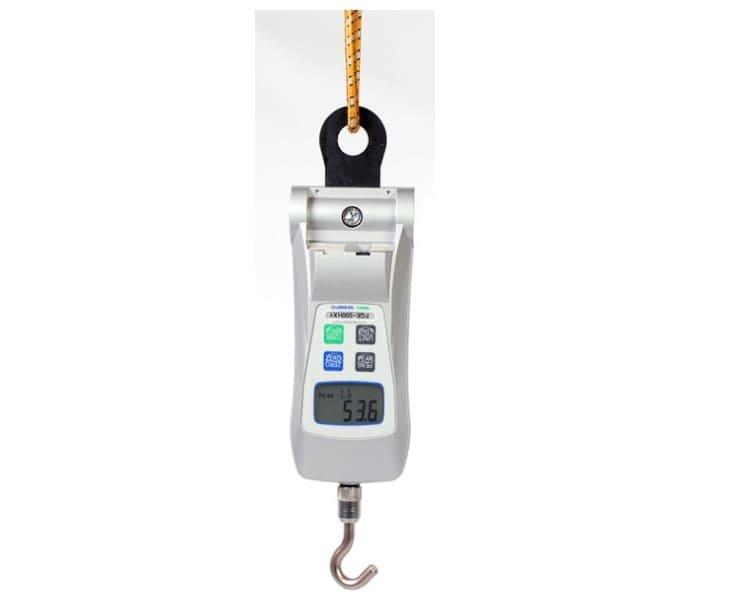

The Shimpo FGE-500HXY Capacity Digital Force Gauge measures both push and pull forces up to 500 lbs / 250 kg. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.
Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test.

Features

1 million operation load cell with superior overload protection provides a long-life, damage free product.

Ideal for strict tolerances with its high accuracy +/-0.2% F.S..

Measure and record compression and tension tests. Permits true “push-pull” testing.

Variable display response rate aids viewing of readings.

High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor.

Measure and record compression and tension tests. Permits true “push-pull” testing.

CE Mark & RoHS Approval.

Dual power capable with rechargeable battery or AC.

Field calibration through keypad eliminates down time.

Real Time or Peak hold mode easily selectable with a single button push.

180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand..

1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results..

Dimensions

Complete Kit

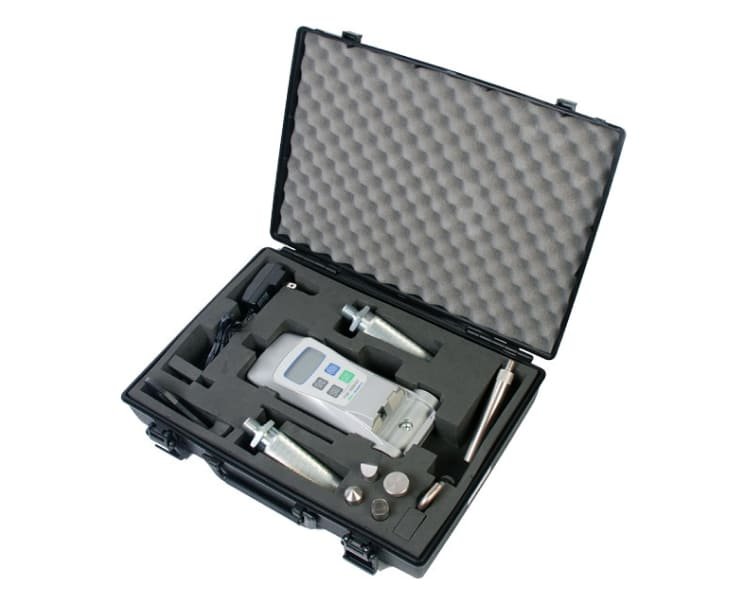

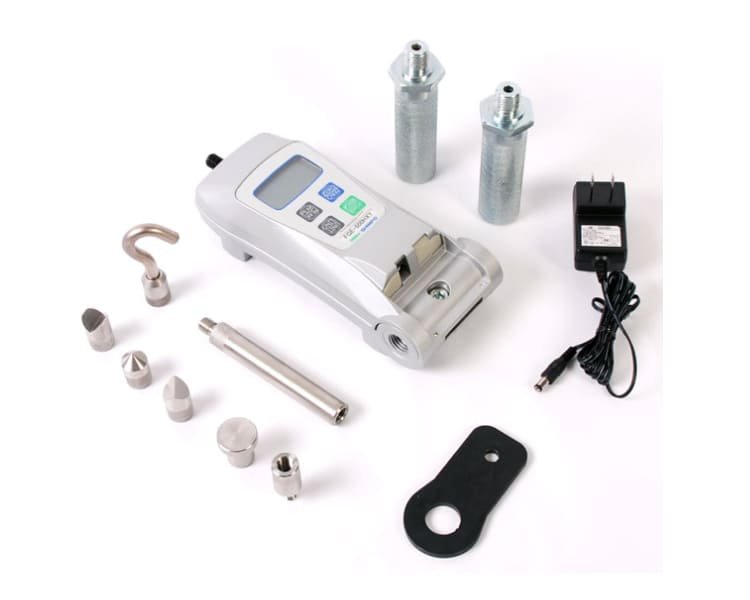

The FGE-HXY is supplied as a complete kit including AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case.

Ranges

Model	Capacity	Resolution
FGE-HXY	500 lb 250 Kg 2500 N	0.1 lb 0.1 Kg

Specifications

Accuracy	±0.2% full scale
Resolution	0.1 lb, 0.1 Kg, 1 N
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 times per second
Overload Protection	150% of full scale
Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Life	12 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged
Dimensions	8.43″ L x 3.23″ W x 2.15″ H (214 mm x 82 mm x 54.5 mm)
Weight	2 lb (900 g)
Approvals	CE approved
Warranty	1 Year
Certification	CE, RoHS
