Force Gauges FGE-XY Shimpo
The Shimpo FGE-XY Force Gauge provides versatile measurement options with options for “real-time” or “peak” force display and user-selected units. With ±0.2% accuracy and 200% overload protection, it includes a 1-year warranty and Traceable Calibration Certificate.
37 people are viewing this product right now
🔥 3 items sold in last 3 hours
Force Gauges FGE-XY Shimpo

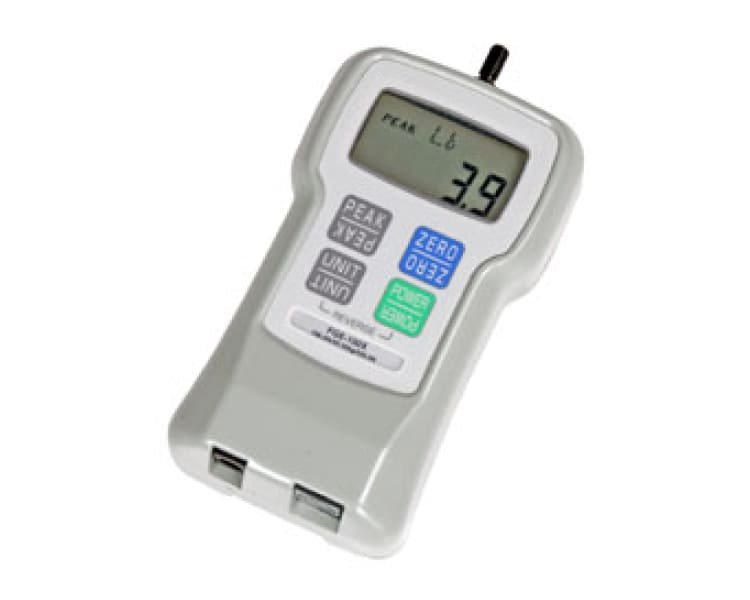

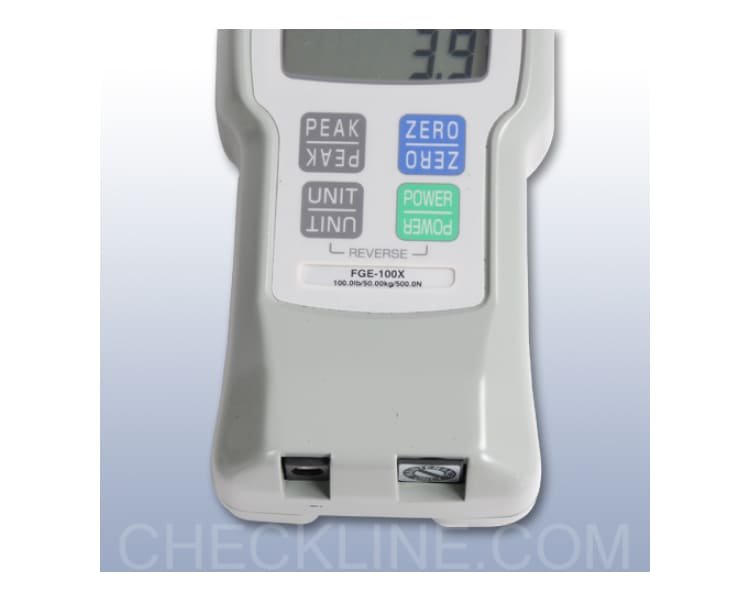

The Series FGE-XY Digital Force Gauges feature a 180° reversible display and dual-labeled keypad for versatile push and pull applications. These rugged, ergonomic, and compact gauges are highly accurate and suitable for various applications, including quality inspection, finished goods testing, R&D, and portable or force stand testing.
Features
Overview

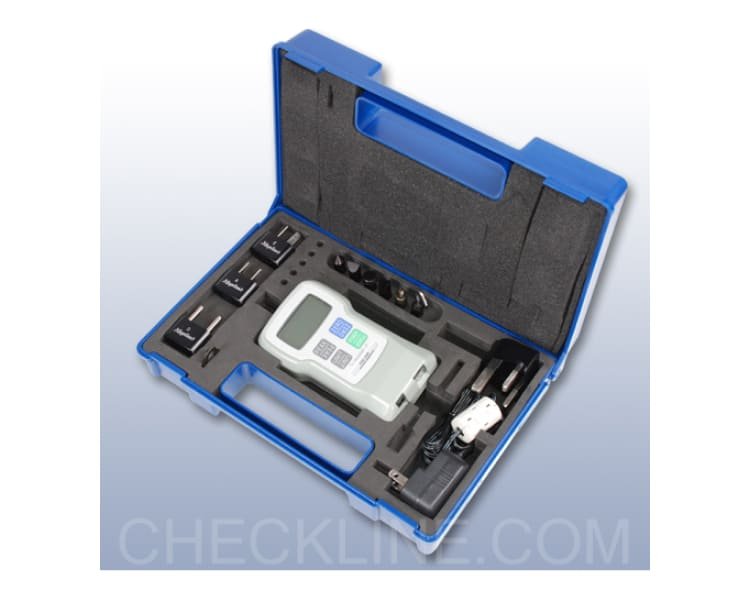

Complete Kit
Ranges
| Model | Capacity | Resolution |
|---|---|---|
| FGE-0.5XY | 8.00 oz 200.0 g 2.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-1XY | 16.00 oz 500.0 g 5.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-2XY | 2.000 lb 1000 g 10.00 N | 0.001 lb 1 g 0.01 N |
| FGE-5XY | 5.000 lb 2.000 Kg 20.00 N | 0.001 lb 0.001 kg 0.01 N |
| FGE-10XY | 10.00 lb 5.000 Kg 50.00 N | 0.01 lb 0.001 kg 0.01 N |
| FGE-20XY | 20.00 lb 10.00 Kg 100.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-50XY | 50.00 lb 20.00 Kg 200.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-100XY | 100.0 lb 50.00 Kg 500.0 N | 0.1 lb 0.01 kg 0.1 N |
| FGE-200XY | 200.0 lb 100.0 Kg 1000 N | 0.1lb 0.01 kg 1 N |
Specifications
| Accuracy | ±0.2% full scale |
| Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 times per second |
| Overload Protection | 200% of full scale |
| Power | Rechargeable Ni-MH battery or AC through adapter/charger |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Life | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |

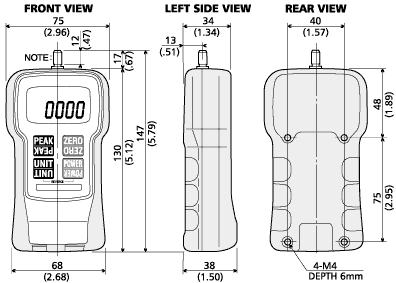

| Dimensions | 5.8″ L x 3.0″ W x 1.5″ H (147 mm x 75 mm x 38 mm) |
| Weight | 1 lb (450 g); FGE-200XY Approx. 1.1 lb (500 g) |
| Approvals | CE and ROHS certified |
| Warranty | 1 Year |
| International P/N | FGJN |
