Force Gauges FGE-HX – FGV-HX Shimpo
The Shimpo FGE-HX and FGV-HX Force Gauges offer ±0.2% accuracy, measuring both compression and tension forces. Featuring 200% overload protection, heavy-duty load sensor, and removable hanger, they display real-time or peak force in Pounds, Kilograms, or Newtons. Includes Traceable Calibration Certificate.
24 people are viewing this product right now
🔥 10 items sold in last 3 hours
Force Gauges FGE-HX – FGV-HX Shimpo

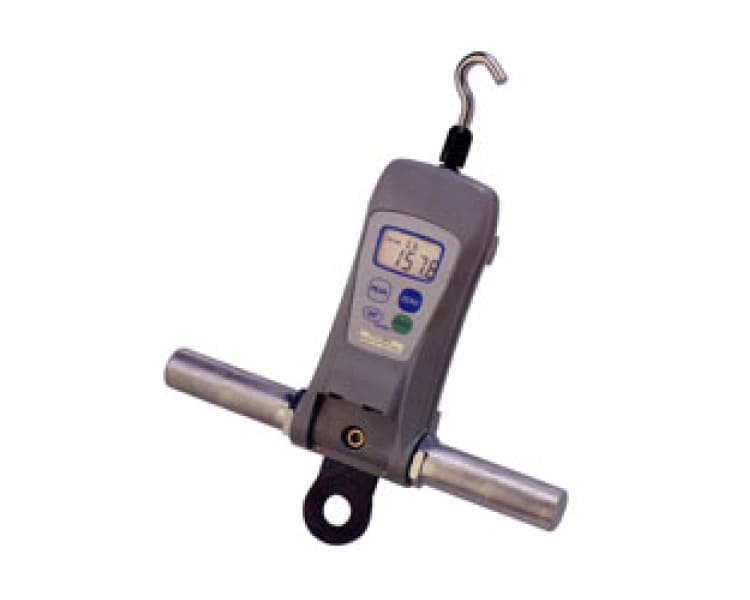

The microprocessor-controlled, digital FGE-HX and FGV-HX offer the same user-friendly features of our popular FGE/FGV series, but in an extremely heavy-duty case, allowing the gauges to handle larger capacities from 0 to 1000 pounds. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.
Features

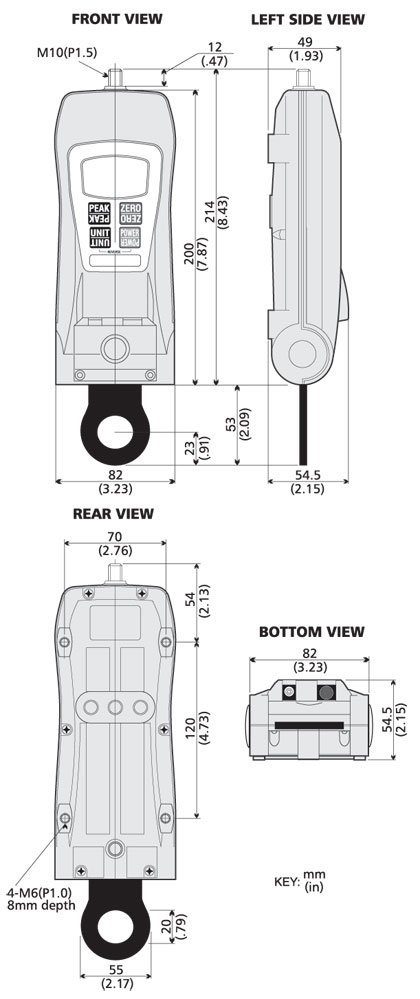

Dimensions
Force Ranges
| Model | Capacity | Resolution |
|---|---|---|
| FGE-200HX | 200 lb 100 Kg 1000 N | 0.1 lb 0.1 Kg 1 N |
| FGE-500HX FGV-500HX | 500 lb 250 Kg 2500 N | 0.1 lb 0.1 Kg 1 N |
| FGV-1000HX | 1000 lb 500 Kg 5000 N | 0.1 lb 0.1 Kg 1 N |
Specifications
| Accuracy | ±0.2% full scale |
| Resolution | 0.1 lb, 0.1 Kg, 1 N |
| Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 times per second |
| Overload Protection | 150% of full scale |
| Power | Rechargeable Ni-Cad battery or AC through adapter/charger |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Life | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |
| Dimensions | 8.43″ L x 3.23″ W x 2.15″ H (214 mm x 82 mm x 54.5 mm) |
| Weight | 2 lb (900 g) |
| Approvals | CE approved |
| Outputs (FGV MODEL ONLY) | RS232C & Analog Output -1 to +1 VDC (through a 12 bit D/A converter) |
| Overload Output (FGV MODEL ONLY) | One NPN OC transistor for tension, one NPN OC transistor for compression |
| Warranty | 1 Year |
