Force Gauges Mechanical PT Kits Shimpo

The Shimpo Mechanical PT Kits offer outstanding ±0.2% F.S. accuracy and quick-response precision gauge movement. With real-time and peak modes, rugged die-cast aluminum housing, and overload protection, they are ideal for handheld use in harsh conditions. Includes all accessories for ergonomic and therapy testing.

10 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Force Gauges Mechanical PT Kits Shimpo

The kits display peak compression, tension, or real-time forces, with an easy push-button reset for repetitive testing. A large dial indicator reduces parallax errors and provides immediate response time. Calibration is achieved with precisely matched springs, overload protected to 165 lb (75 kg). The durable MF gauges feature die-cast aluminum housing and come with padded ERGO accessories, adapters, and N.I.S.T. traceable certificates of calibration.

Features

Outstanding ±0.2% F.S. accuracy makes the MF’s applicable even for the strictest applications.

Precision gauge movement provides a quick response for instantaneous analysis.

Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded.

Peak Mode Reset is ideal for repetitive peak testing applications.

Smooth mechanical operation with precise action produces repetitive, accurate readings.

Exceptionally rugged die-cast aluminum housing enables usage in harsh conditions.

Overload protected to 165 pounds (74.84 kg) protects gauge from accidental damage.

Compact, ergonomic design is perfect for handheld use.

Dial rotation enables easing taring adjustment.

All accessories and attachments required for ergonomic and therapy testing included.

Complete Kit

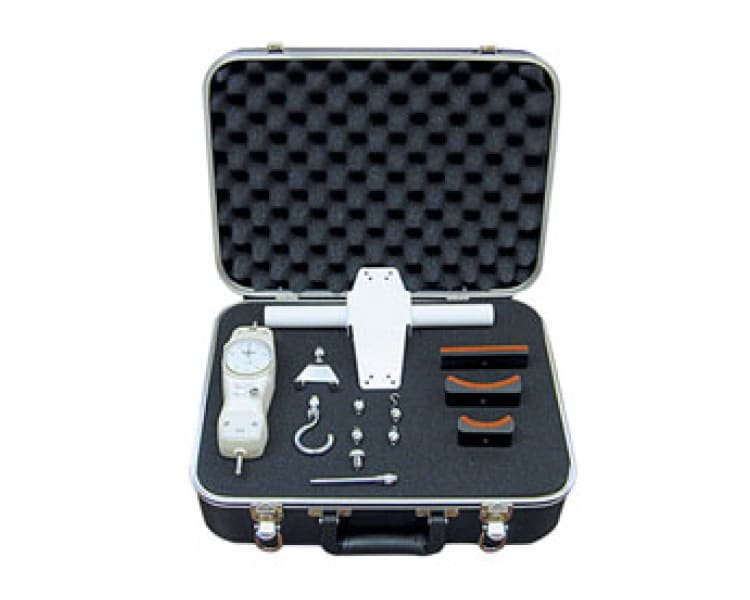

MF Force gauge, carrying case 7 attachments (flat head, hook chisel, notched head, cone head, extension rod, large hook, large v-hook) padded ERGO accessories, handle and free N.I.S.T. traceable certificate of calibration.

Ranges

Model	Capacity	Overload Capacity	Dial Graduations
MF-PT100	100 lb	165 lb	0.5 lb
MF-PT50KG	50 kg	75 kg	0.25 kg

Specifications

Accuracy	± 0.2% F.S.
Display	Analog dial, 2″ diameter (50 mm); Rotatable 360° for taring/zeroing
Real/Peak Mode	Selectable
Display Update	Immediate
Kit Weight	8.0 lb (3.6 kg)
Warranty	1 Year
