Force Gauges MFD Shimpo
The Shimpo MFD Force Gauges offer dual units (kg/lb) for flexible testing, measuring both tension and compression. Featuring real-time and peak modes, precise gauge movement, and an ergonomic design, they are ideal for handheld use or mounting on test stands.
41 people are viewing this product right now
🔥 12 items sold in last 3 hours

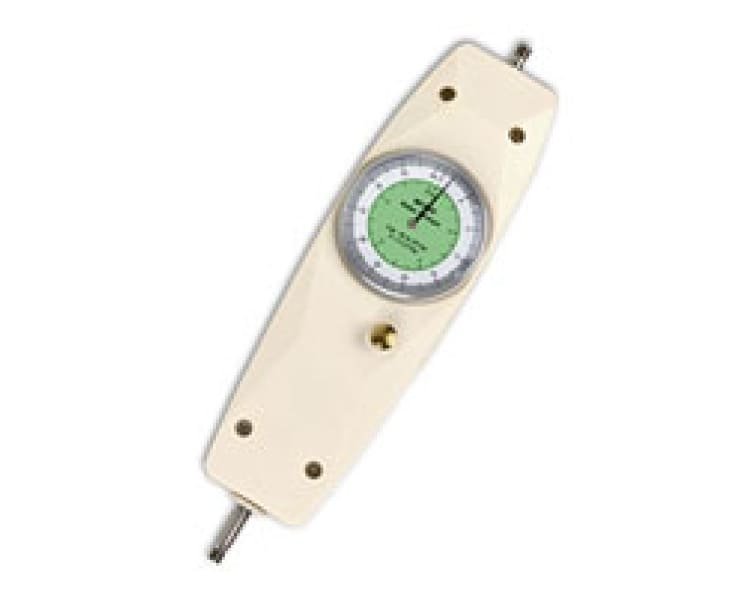

Force Gauges MFD Shimpo
The MFD was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected. All standard Series MFD gauges include a protective carrying case, calibration certificate, plus attachment adapters.
Features

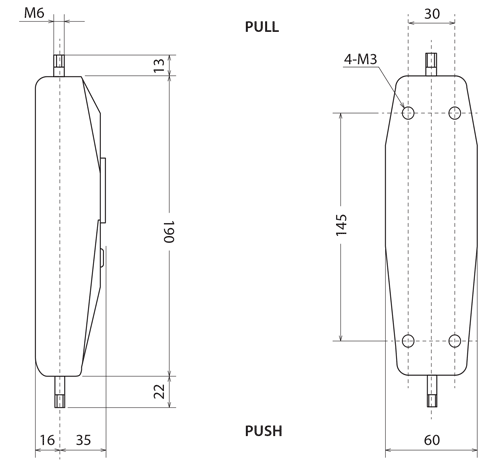

Dimensions
Dimensions
Force Ranges
| Model | Capacity | Resolution |
|---|---|---|
| MFD-02 | 4.5 lb (2 kg) | 0.02 lb (0.02 kg) |
| MFD-03 | 11 lb (5 kg) | 0.05 lb (0.05 kg) |
| MFD-04 | 22 lb (10 kg) | 0.1 lb (0.1 kg) |
| MFD-05 | 45 lb (20 kg) | 0.2 lb (0.2 kg) |
| MFD-06 | 110 lb (50 kg) | 0.5 lb (0.5 kg) |
Specifications
| Accuracy | ±1% F.S. |
| Display Analog | 2 in. diameter (50 mm); rotatable 360° for taring purposes |
| Live/Peak Mode | Selectable |
| Needle Update | Immediate |
| Threaded Insert | 4 on back for mounting inserts |
| Overload Capacity | 120% of range |
| Product Weight | 1.25 lb (0.57 kg) |
| Warranty | 1-Year |
