Gear Gauges DIA COME C2 Series Diatest
The Diatest DIA COME C2 Series Gear Gauges offer precise measurements of gears. With advanced features and high precision, they’re essential tools for ensuring accurate fits and alignments in engineering and manufacturing applications requiring precise gear measurements.
35 people are viewing this product right now
🔥 6 items sold in last 3 hours
Gear Gauges DIA COME C2 Series Diatest

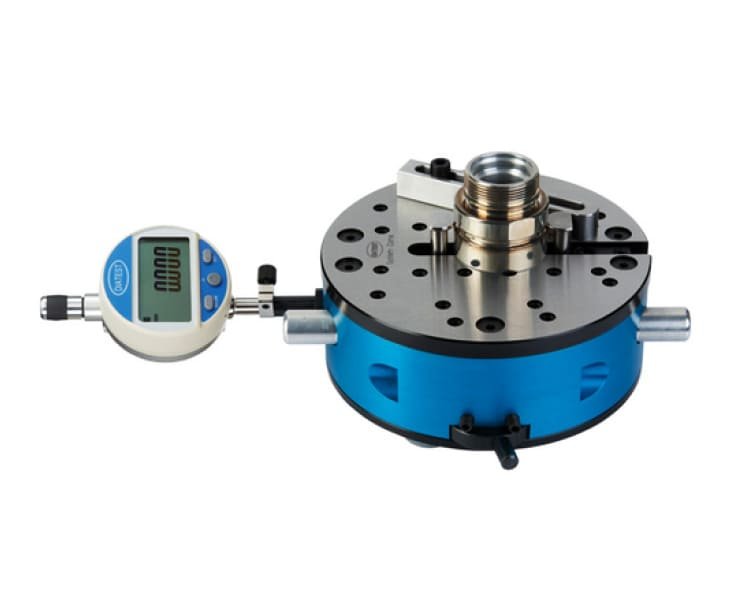

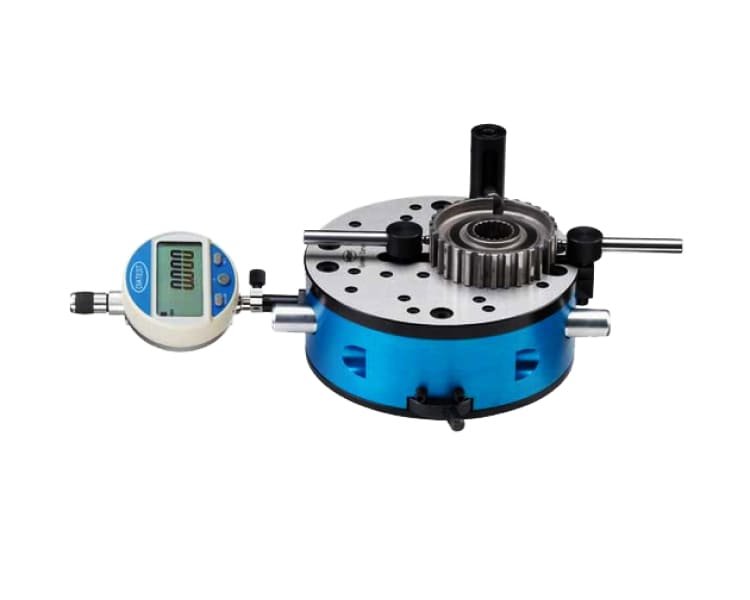

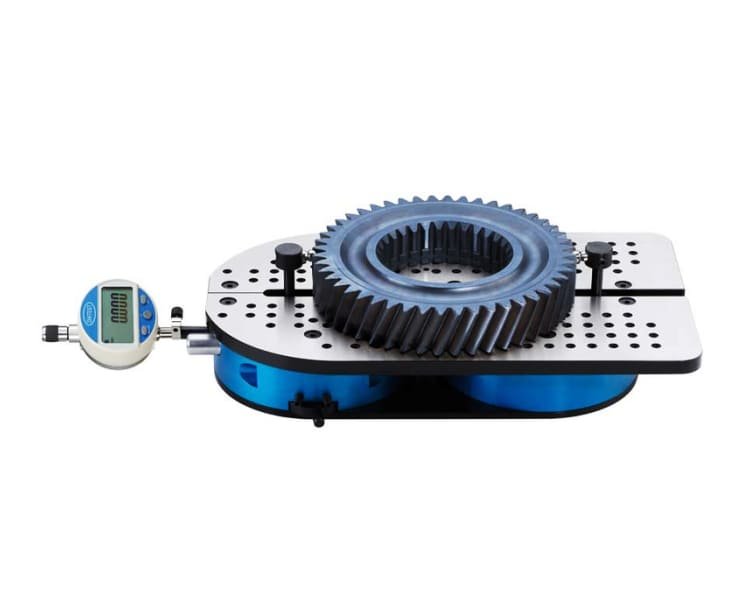

The Diatest Gear Gauges DIA-COME Series are versatile measuring centers designed for precise measurement of external and internal diameters in gears, spline gears, rings, couplings, and fastenings. With an exceptional accuracy of ±0.002 mm, these benchtop tools cover a wide measuring range from Mi 11.5-300 mm and Ma 0-275 mm. Featuring sturdy construction, they are ideal for workshop use.
Features
Spesification
Code No. | DIA-COME C2-ZM (For smaller diameter) | DIA-COME C2-ZM AL (For mid-range diameter) | DIA-COME C2-ZM JS (For larger diameter) | |||
Range | Mi=70 – 120 mm | Ma=0 – 80 mm | Mi=70 – 195 mm | Ma=0 – 155 mm | Mi=70 – 275 mm | Ma=0 – 245 mm |
DIA-COME C2-ZM Standard | Measuring table with 2 supports for ball pins, 1 stop bar Additionally required: 2 ball pins (indicate Ø of balls) | Measuring table with 2 supports for ball pins, 1 stop bar Additionally required:2 ball pins (indicate Ø of balls) | Measuring table with 2 supports for ball pins, 1 stop bar Additionally required:2 ball pins (indicate Ø of balls) | |||
DIA-COME C2-ZM Kit 1 (Small Workpiece) | 1 support for adaptor; 2 adaptors for ball anvil holder; 2 support tables for small work pieces Additionally required: 2 KS-ZM3-Ø (indicate Ø of balls) | 1 support for adaptor; 2 adaptors for ball anvil holder; 2 support tables for small work pieces Additionally required: 2 KS-ZM3-Ø (indicate Ø of balls) | 1 support for adaptor; 2 adaptors for ball anvil holder; 2 support tables for small work pieces Additionally required: 2 KS-ZM3-Ø (indicate Ø of balls) Support of measuring contacts L= 110 mm | |||
DIA-COME C2-ZM Kit 2 (High Workpiece) | 2 x long supports for ball pins |
|
| |||
DIA-COME C2-ZM Kit 3 (Stop adjustable in height) | 1 x basic part; 1 x stop with thread M2,5 (to screw in any type of inserts; inserts are not included!) |
|
| |||
DIA-COME C2-ZM Kit 4 Ball anvil support | 2 x supports for ball anvil for e.g. KS- MU-Ø or any other insert with thread M2,5 (KS-MU is not included) |
|
| |||
