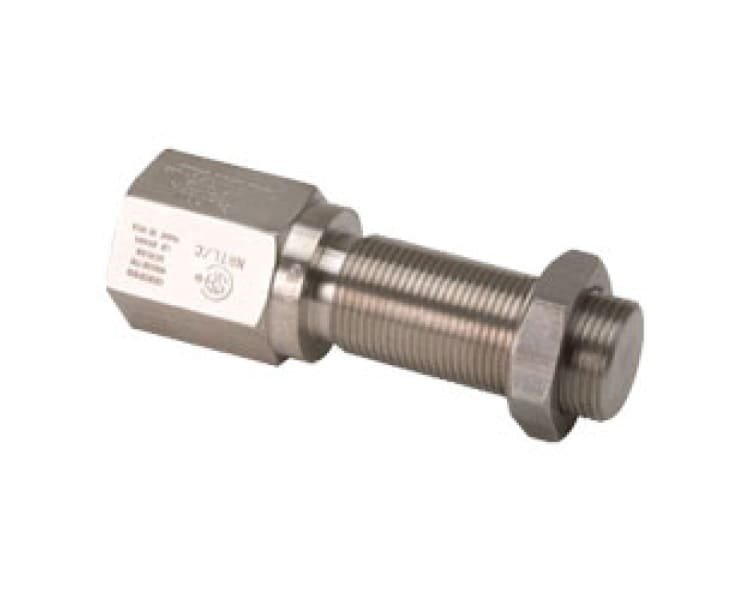

Magnetic Pick Up 3070-XP12010 Sensors Shimpo
The Shimpo 3070-XP12010 Magnetic Pick Up Sensor generates a sine wave output triggered by magnetic to non-magnetic changes, with voltage changes proportional to magnetic flux intensity over time. It typically operates with a clearance range of 0.01″ (0.25 mm) and features a stainless steel housing, explosion-proof ATEX approval.
38 people are viewing this product right now
🔥 4 items sold in last 3 hours
Magnetic Pick Up 3070-XP12010 Sensors Shimpo
Specifically engineered for use in the oil and petrochemical industries, this stainless steel sensor is completely sealed and explosion-proof. Low impedance allows for transistor circuit input. When mated with conduit, it provides positive protection against damage due to water, high humidity, oil, dirt, or corrosive liquids.
Features
Specifications
| Output Voltage | 60 VPP MIN. |
| Coil Resistance | 170 – 210 OHM@ |
| Output Inductance | 80 mH TYP |
| Dielectric | 500V RMS @ 60 Hz |
| Leakage Resistance | 100 MEGAOHMS MIN. |
| Temp Spec. | – 65 to +200 Deg. F |
