Magnetic Pick Up 3030AN Sensors Shimpo
The Shimpo 3030AN Magnetic Pick Up Sensor provides a sine wave output triggered by magnetic to non-magnetic transitions, with voltage changes proportional to magnetic flux intensity over time. It typically operates with a clearance range of 0.01″ (0.25 mm).
27 people are viewing this product right now
🔥 8 items sold in last 3 hours
Magnetic Pick Up 3030AN Sensors Shimpo

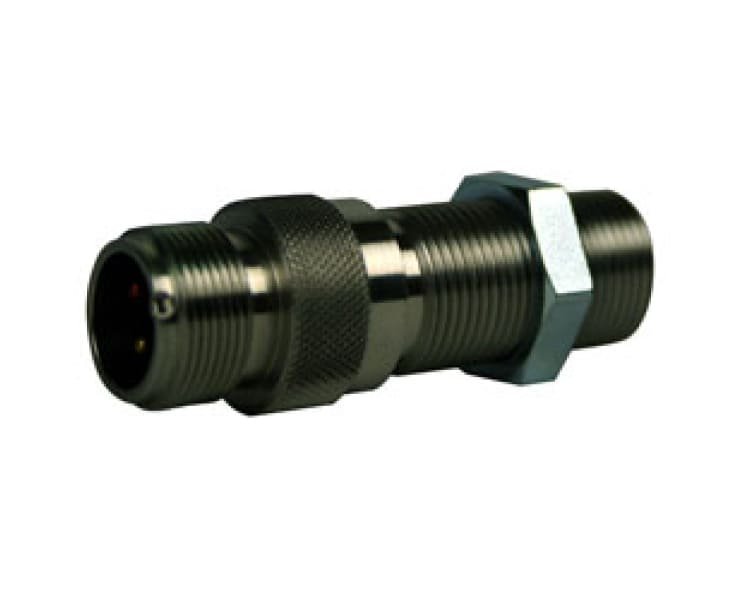

The 3030AN magnetic pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time. The 3030AN is designed to mount in a 5/8″-18 threaded hole and is provided with a jam nut for sensor securing.
Features
Specifications
| Mounting | 5/8″ – 18 threaded hole |
| Output | Sine wave |
| Adjustment | Clearance of 0.1″ between the sensor and gear |
| Temperature Range | -100 to 225 °F (-75 to 107 °C) |
