Magnetic Pick Up MP-10 Sensors Shimpo
The Shimpo MP-10 Magnetic Pick Up Sensor is engineered to detect changes in magnetic fields, offering reliable signal output for rotational speed sensing applications. Its compact design and durability make it suitable for various industrial environments.
41 people are viewing this product right now
🔥 10 items sold in last 3 hours

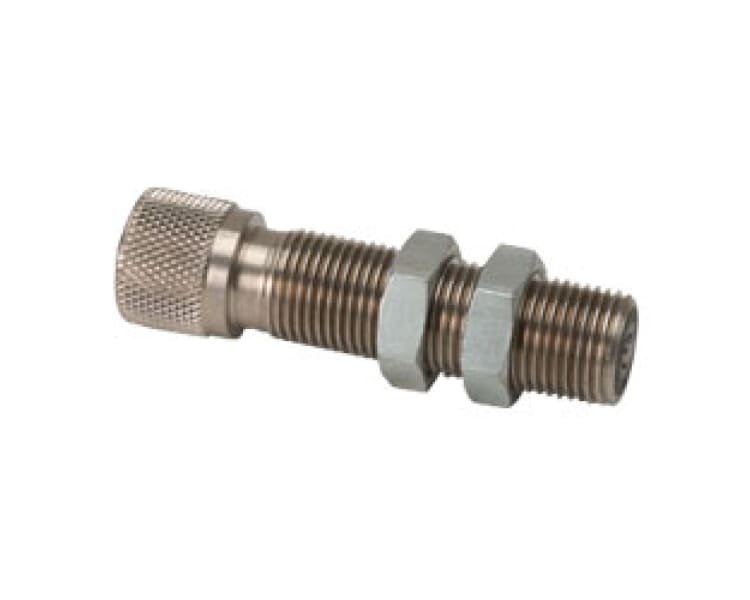

Magnetic Pick Up MP-10 Sensors Shimpo
Model MP-10 pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output volate is directly proportional to the change in magnetic flux intensity over the change in time.
Features
Dimensions

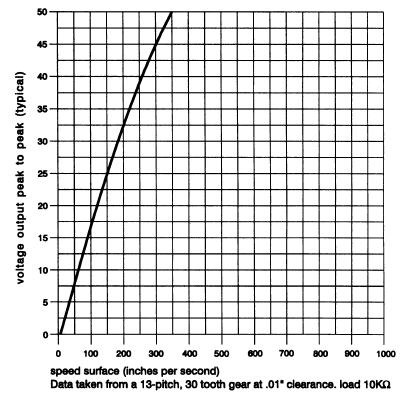

Speed vs.Voltage
Specifications
| Mounting | 5/8″ thread hole |
| Adjustment | Typical clearance of 0.1″ between sensor and gear |
| Temperature | -40 to 221 °F |
| Connections: Lead wire | Shield White Black |
| Tachometer: Terminal | E SIG |
