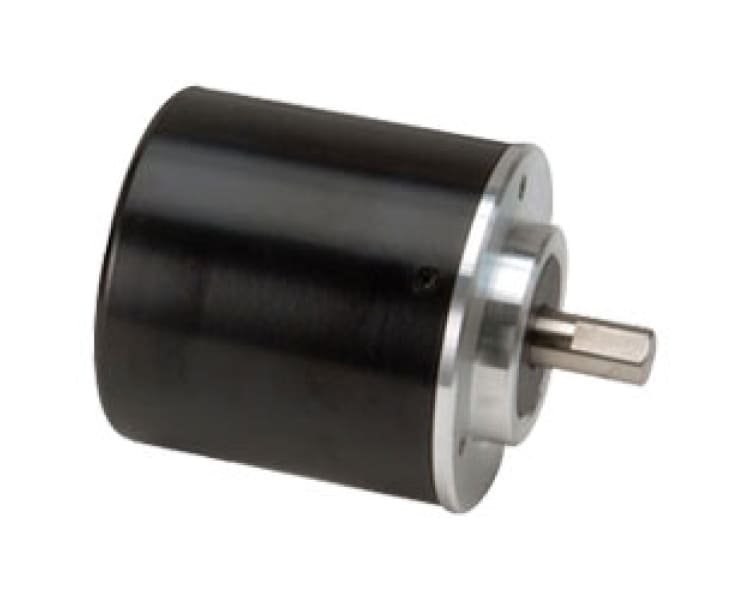

Sensors RE1B Rotary Pulse Generator Shimpo
The Shimpo RE1B Rotary Pulse Generator is a versatile sensor designed to convert rotational motion into electrical pulses. With precise accuracy and compatibility, it offers reliable performance for various applications requiring rotary motion detection.
24 people are viewing this product right now
🔥 11 items sold in last 3 hours
Sensors RE1B Rotary Pulse Generator Shimpo
The RE1B Rotary Pulse Generator by SHIMPO is a precision sensor designed to provide accurate rotational speed and position feedback. Ideal for various industrial applications, the RE1B features robust construction for reliable performance in harsh environments. It delivers high-resolution pulse signals, making it suitable for use in monitoring and control systems.
Specifications
| Model | RE1B-60C | RE1B-600C | RE1B-1000C |
|---|---|---|---|
| Resolution | 60 pulses per revolution | 600 pulses per revolution | 1000 pulses per revolution |
| Maximum Speed | 5000 rpm | 3000 rpm | 1800 rpm |
| Power Supply | 4.75 – 30 VDC, 50 mA (max) | ||
| Output Voltage | logic “1” …Vs – 2.5 V, 10 mA (max) | ||
| Shaft Torque | 0.41 oz – in, 30 g-cm (max) | ||
| Shaft Allowable Load | Overhung load 11 lbs. (Thrust load 6.6 lbs.) | ||
| Cable Length | 10′ | 10′ | 3′ |
| Operation Temperature | 14 to 122 °F (-10 to 50 °C) | ||
| Weight | 8.8 oz (250 g) | ||
| Construction | Die-cast aluminum housing | ||
| Mounting | Base or face mounting | ||
| Model | RE2B-30C | RE2B-60C | RE2B-600C |
|---|---|---|---|
| Resolution | 30 pulses per revolution | 60 pulses per revolution | 600 pulses per revolution |
| Maximum Speed | 5000 rpm | 5000 rpm | 3000 rpm |
| Power Supply | 4.75 – 30 VDC, 50 mA (max) | ||
| Output Signal | Logic “1” … Supply voltage minus 2.5 V or more, 10 mA (max), Logic “0” … less than 0.4V, 30 mA (max) | ||
| Duty Cycle | 50% (±25%) | ||
| Quadrature Output Phase | 50% (±25%) | ||
| Shaft Torque | 0.41 oz – in, 30 g-cm (max) | ||
| Shaft Allowable Load | Overhung load 11 lbs. (Thrust load 6.6 lbs.) | ||
| Cable Length | 10′ | 10′ | 1.6′ |
| Operation Temperature | 14 to 122 °F (-10 to 50 °C) | ||
| Weight | 8.8 oz (250 g) | ||
| Construction | Die-cast aluminum housing | ||
| Mounting | Base or face mounting | ||
