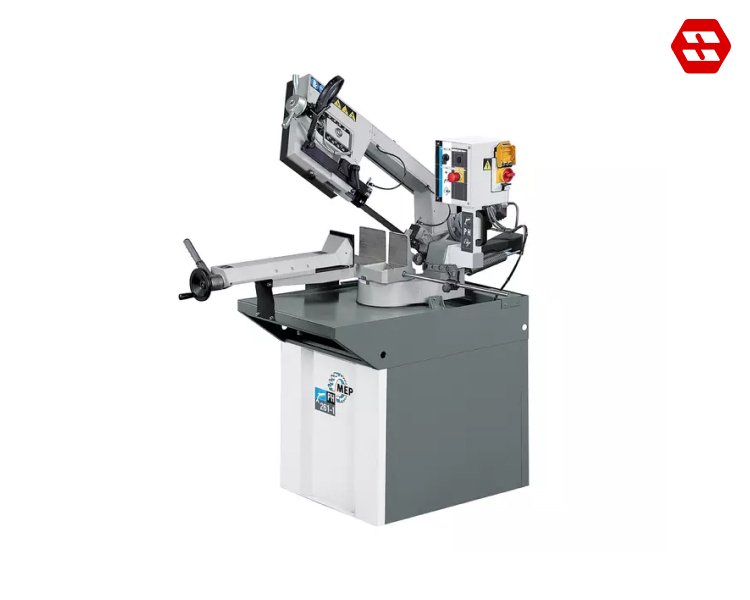

Manual Bandsaw Machine PH 261-1 MEP
Cast Iron Structure
Hard Metal Blade-Guide Pads
Optional HB-System
Technical Data Manual Bandsaw Machine
PH 261-1 MEP
CUTTING RANGE
 |  | | |
| 0° | 225 mm | 200 mm | 240 x 160 mm |
| +45° | 160 mm | 140 mm | 155 x 115 mm |
| +60° | 90 mm | 90 mm | 90 x 90 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 245 mm |
| Band size | 2450 x 27 x 0.9 mm |
| Blade motor power | 0.94 / 1.1 Kw – Three-phase |
| Blade rotation speed | 46 / 92 m/min – 2 Speeds |
