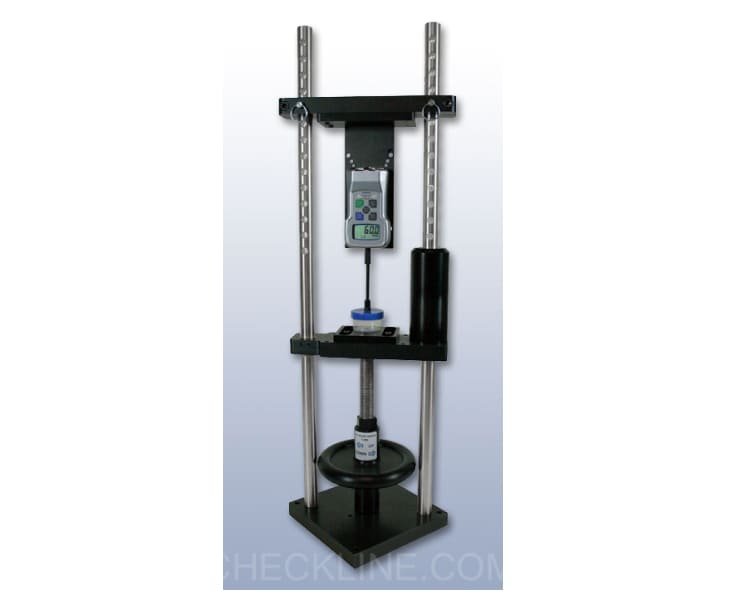

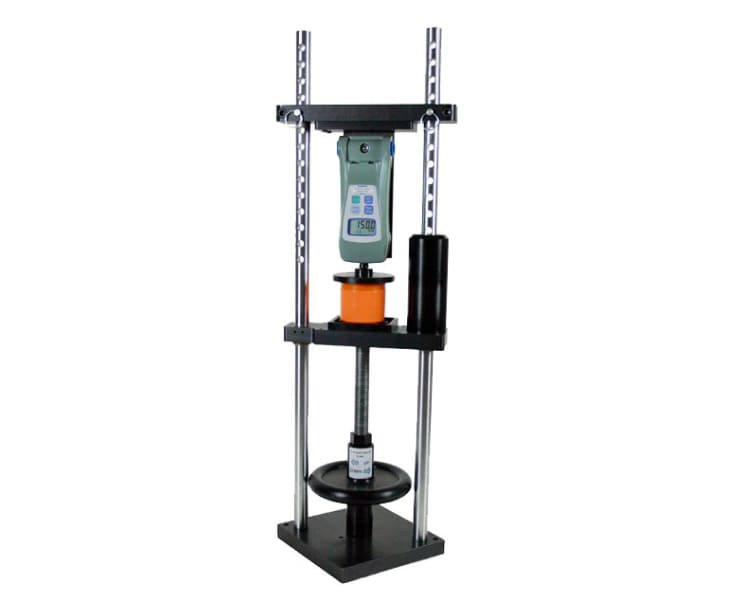

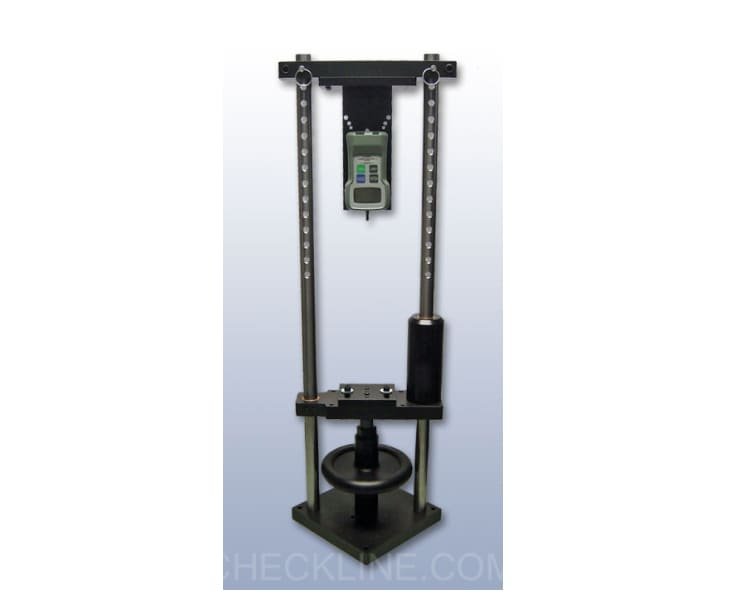

Manual Test Stands FGS-1000H Shimpo

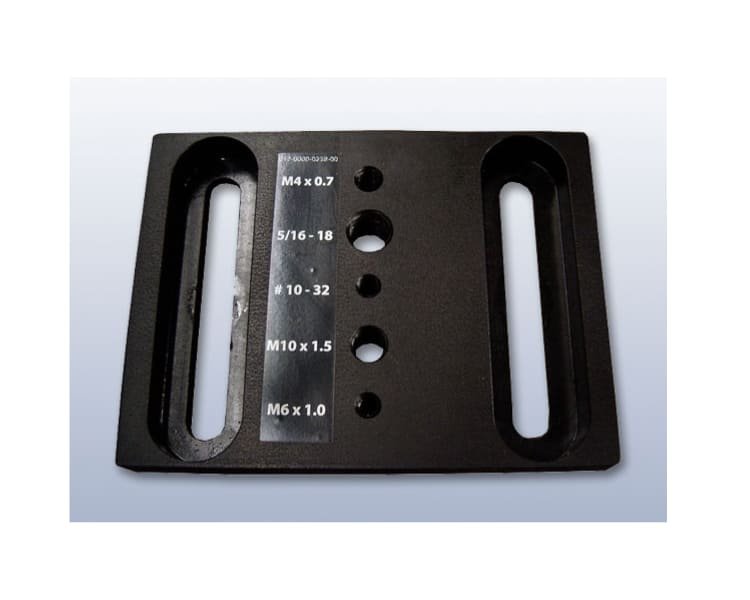

The Shimpo FGS-1000H Manual Test Stand features a versatile mounting plate, adjustable clearance settings, and precision gear movement for consistent accuracy. Its compact, modular design, sturdy steel construction, and compatibility with various force gauges enhance testing flexibility and durability.
33 people are viewing this product right now
🔥 3 items sold in last 3 hours
Manual Test Stands FGS-1000H Shimpo
The FGS-1000H is a versatile manual test stand designed for both tension and compression testing. It accommodates various force gauges including the FGV-1000HX (up to 1000 lbs or 2500N capacity) and all FGE/FGV-X series models. Its smooth turn-wheel provides precise 0.1″ travel per revolution, while heavy-duty construction ensures reliable and repeatable testing over time.
Features

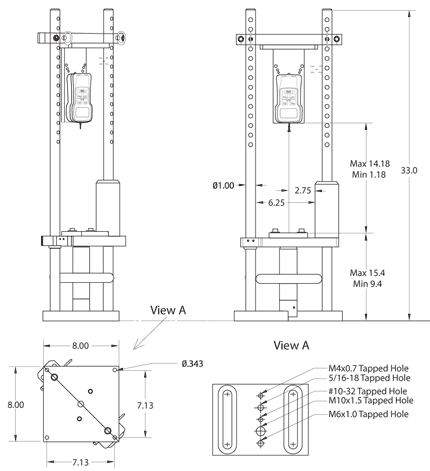

Dimensions
Specifications
| Capacity | 1000 lbs, 2500N, 500KG |
| Stroke | 6″ ( 15.2 cm) |
| Travel | 0.1″ ( 2.5 mm)/ wheel turn approx. |
| Vertical Clearance | Up to 13″ (33 cm) |
| Warranty | 1 Year |
