Manual Test Stands FGS-250W Shimpo
The Shimpo FGS-250W Manual Test Stand features a versatile bottom mounting plate for various attachments, sturdy all-steel construction, and precision gear movements for consistent linear motion, ensuring accurate and reliable testing.
43 people are viewing this product right now
🔥 9 items sold in last 3 hours
Manual Test Stands FGS-250W Shimpo
The FGS-250W is a versatile manual test stand designed for both tensile and compressive force testing, including destructive or failure testing in research applications across various industries. Its movement is driven by a trapezoidal screw with an integral nut, offering fine resolution with stable operation. The stand can be used vertically or horizontally without additional equipment; simply adjust it horizontally by laying it on its back and leveling with an adjustment screw.
Features

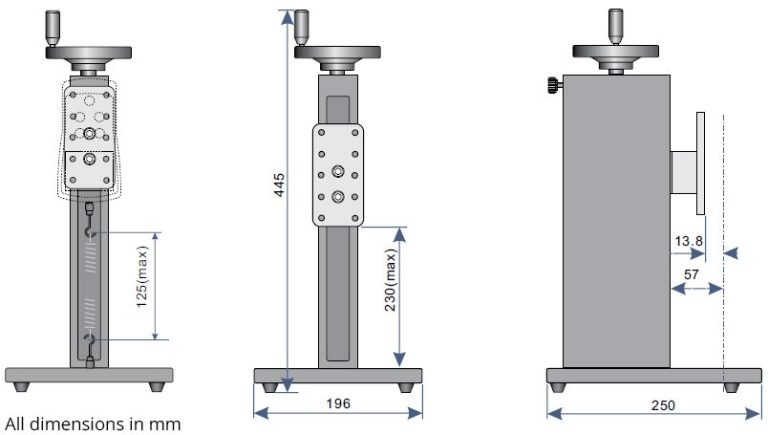

Dimensions
Specifications
| Capacity | Up to 250 lbf (125 kg); 143 lbf (65 kg) with optional Tensile frame |
| Travel | 0.12″ (3 mm)/turn |
| Stroke | 9″ (230 mm) max.; 10.24″ (260 mm) max. with Tensile Frame kit. |
| Dimensions | 9.8 x 7.7 x 17.5″ (250 x 196 x 445 mm) |
| Weight | 15.4 lb (7 kg) |
| Warranty | 1 year |
