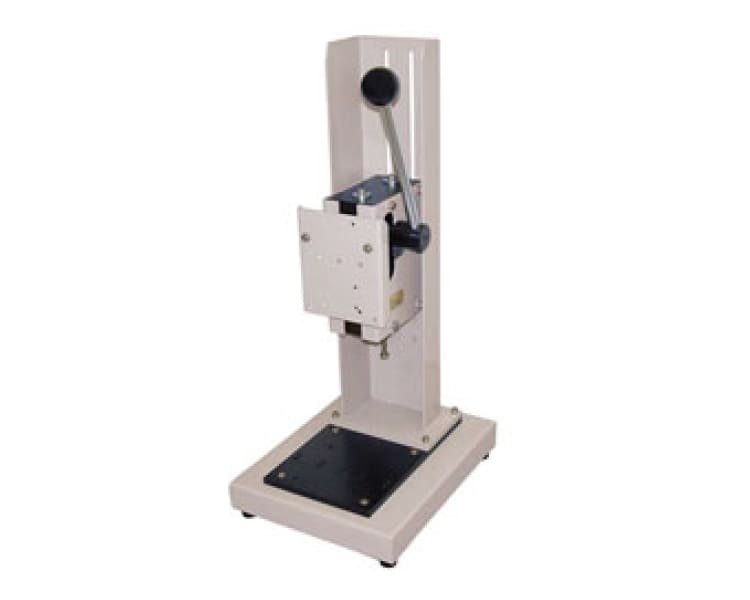

Manual Test Stands FGS-100L Shimpo

The Shimpo FGS-100L Manual Test Stand features a versatile mounting plate, adjustable clearance settings, and precision gear movement for accurate results. Its compact, modular design and sturdy steel construction ensure durability, while compatibility with various force gauges enhances testing flexibility.

35 people are viewing this product right now

🔥 7 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 17, 2026 - June 19, 2026

Description

Manual Test Stands FGS-100L Shimpo

The FGS-100L manual test stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. Our hand-lever operated test stands are ideal for rapid testing applications.
The FGS-100L manual hand-lever test stand has a 200 lb. (100 kg) capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.

Features

Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing.

Sturdy all steel construction allows exceptional durability and extended life of the product.

Compatibility with many vendors' force gauges facilitates flexibility when replacing older test stands.

Precision gear movement provides a consistent linear motion that produces repetitively accurate results.

Adjustable clearance setting enables testing on a wide range of samples.

Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments.

Modular, compact design reduces footprint, weight and cost.

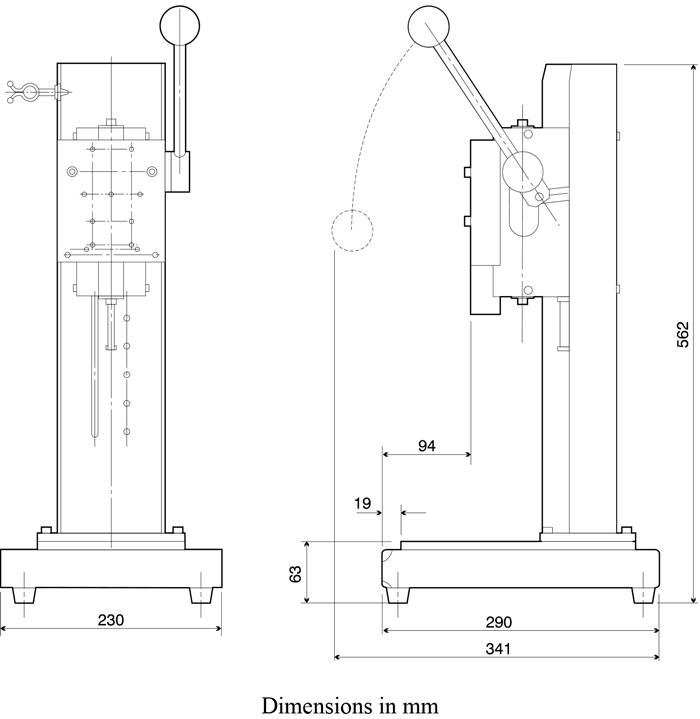

Dimensions

Specifications

Capacity	200 lb (100 kg)
Stroke	1.97″ (50 mm)
Vertical Clearance	3.31″ – 11.57″ (84 – 294 mm) 8 steps, 1.18″/step (30 mm/step)
Product Weight	33 lb (15 kg)
Warranty	1 Year
