Manual Test Stands FGS-50S Shimpo

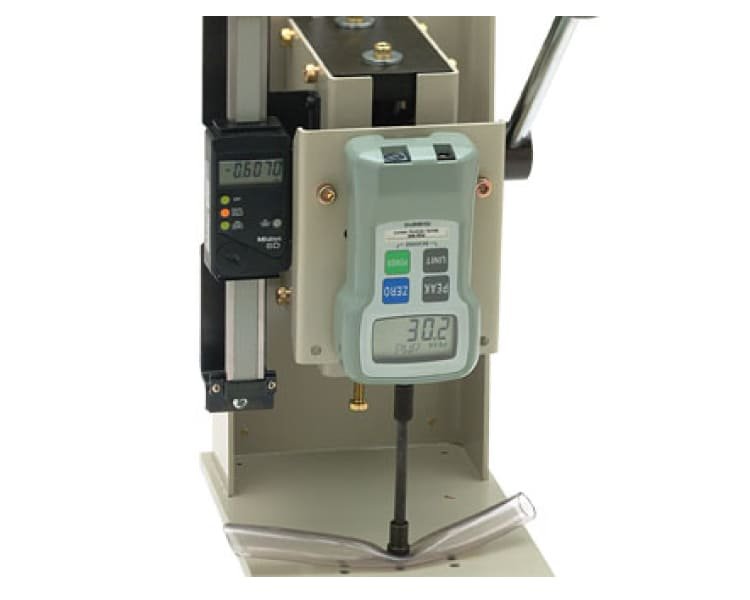

The Shimpo FGS-50S Manual Test Stand features lever-operated compression measurements, adjustable stroke, and a sturdy steel construction. It offers a 50 lbs (22 kg) capacity, versatile platform base, and optional digital length meter for precise deflection measurements.
11 people are viewing this product right now
🔥 7 items sold in last 3 hours
Manual Test Stands FGS-50S Shimpo

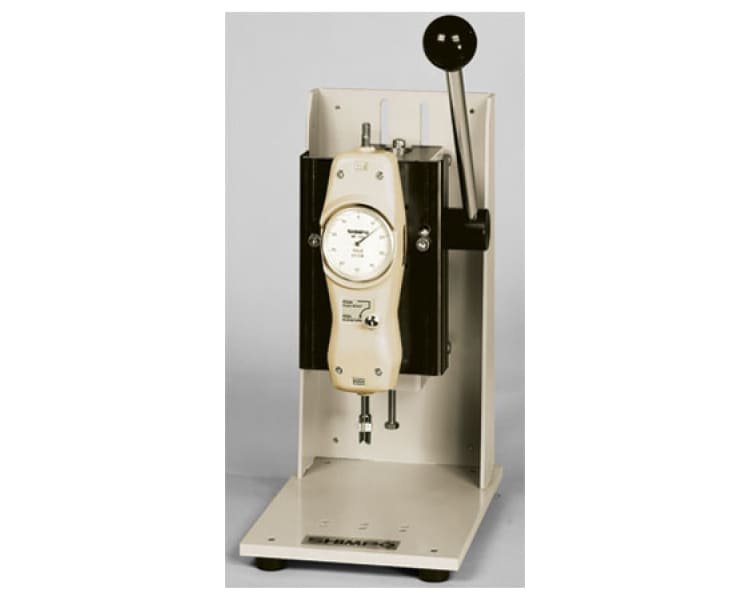

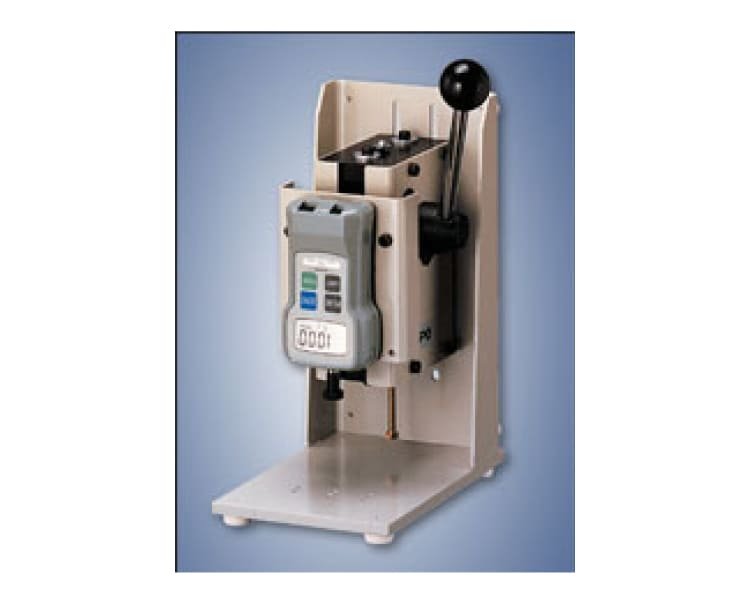

The FGS-50S manual lever test stand is designed to provide accurate and repeatable test results with the addition of a digital or mechanical force gauge. It’s compact design is ideal for a wide range compression force testing applications up to 50 lbf / 22 Kg.
Formerly part number FGS-5S
Features

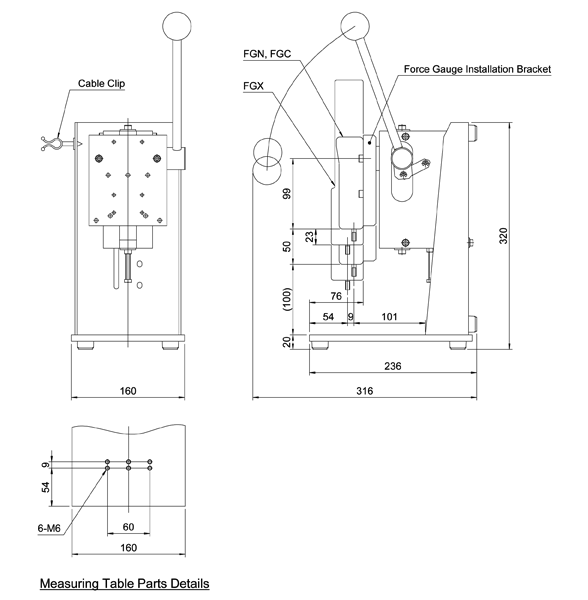

Dimensions
Specifications
| Capacity | 50 lbf / 22 kg / 200 N |
| Stroke | 1.97” (50 mm) |
| Dimensions | 150 x 240 x 320 mm (L x W x H) |
| Weight | 22 lb (10 kg) |
| Warranty | 1 year |
