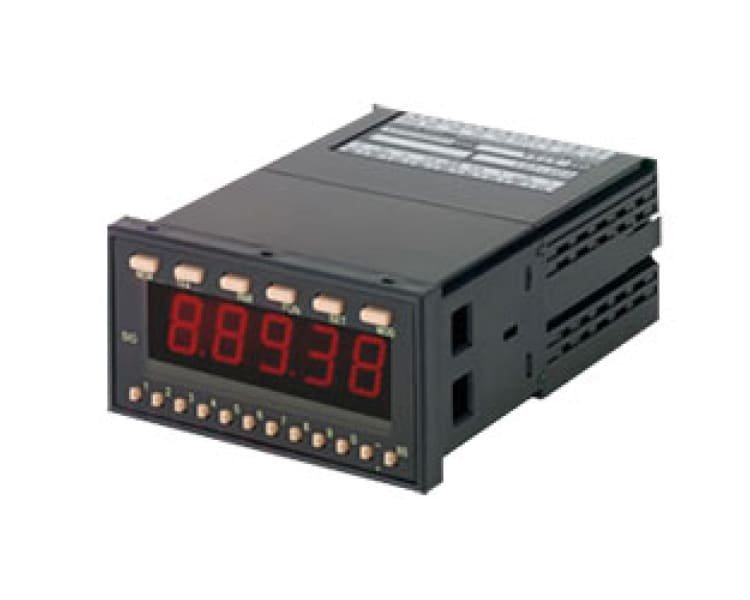

Process Panel Meters DT-5TXR Shimpo
The Shimpo DT-5TXR Process Panel Meter features a large 6-digit primary and two secondary displays for clear distant viewing, with high accuracy perfect for precise process control. It supports multiple sensor inputs and output modules, offers IP66 protection, and is easily mountable with its 1/8 DIN size. Scalable programming and DC power output further enhance its versatility.
8 people are viewing this product right now
🔥 12 items sold in last 3 hours
Process Panel Meters DT-5TXR Shimpo
The DT-5TXR panel meter is a cost-effective solution for speed and process time monitoring when paired with an appropriate in-line sensor. It offers advanced features typically found in more expensive units, including versatility with selectable inputs. The meter supports RPM/linear speed/rate, elapsed time, and process time measurements with three selectable modes. It accepts a wide range of signal inputs from sensors such as pulse generators, proximity sensors, and photoelectric sensors.
Features

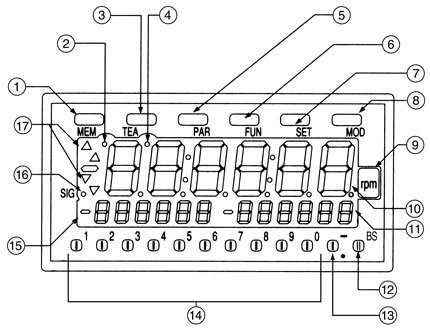

Display
| Designation | Function | |
|---|---|---|
| 1 | Memory Button | Activates memory function |
| 2 | Memory Indicator | ON when memory function is activated |
| 3 | Teaching Button | Quick scaling setup mode |
| 4 | Teaching Indicator | ON when in quick scaling setup mode |
| 5 | Parameter Button | For parameter setup |
| 6 | Function Button | For function setup |
| 7 | Set Button | Sets parameter’s functions |
| 8 | Mode Button | Mode selection |
| 9 | Unit Decal | Area for decal |
| 10 | Primary Display | Displays units of measurement |
| 11 | Secondary Display B | Secondary display |
| 12 | Backspace Button | Backspace for corrections |
| 13 | Negative Sign/Decimal Point Button | Negative sign setting/decimal point shift |
| 14 | Numeric Button | For various functions |
| 15 | Secondary Display A | Secondary display |
| 16 | Signal Indicator | Blinking when signal is present |
| 17 | Comparator Indicator | Indicates comparator condition |
Plug-In Modules
| Module | Description |
|---|---|
| DOP-BCD | BCD output module, 36 Pin Connection |
| DOP-CPTR | Relay output module, terminal block connection |
| DOP-FVC | Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), 36-pin connection |
| DOP-FVTR | Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), terminal block connection |
| DOP-RMTR | Ratio input module, terminal block connection |
| DOP-TRC | NPN open collector output module, 36 pin connection |
| DOP-TRTR | NPN open collector output module, terminal block connection |
Specifications
| Measuring Range | 10 – 99,999 rpm (at 1 p/r) 0.2 – 30,000 rpm (at 60 p/r) |
| Display Range | Tachometer/Rate Meter: 0 – 999999 with selectable decimal point Elapsed Time: 0:00:00 – 9:59:59 or 0.00 – 999.99 sec. Process Time: 0:00:00 – 0:59:59 or 0.00 – 999.99 sec. |
| Scalable | Yes (with outputs, see modules) |
| Accuracy | Tachometer/Rate Meter & Elapsed Time: ± 0.008 % ± 1 digit Process Time: ± 0.008 % ± 1 digit |
| Display Update Time | 0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec. |
| Input No. of P/R | 1 to 9,999 (programmable) |
| Input Signal Characteristics | NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz – Sine wave input (magnetic pickup): max. frequency 10 kHz |
| Sensor Power Supply | 12 VDC (150 mA) |
| Power Requirement | 85 – 264 VAC (50/60 Hz) Optional (9 – 35 VDC at 1 W also available) |
| Ambient Temperature | 32° – 113° F (0 – 45° C) |
| Dimensions | 5.27″ x 3.78″ x 1.89″ (134 x 96 x 48 mm) |
| Product Weight | 0.66 lb (300 g) |
| Package Weight | 0.95 lb (430 g) |
| Warranty | 2 Years |
| Included Accessories | Mounting adapters & screws, decal sheet |
