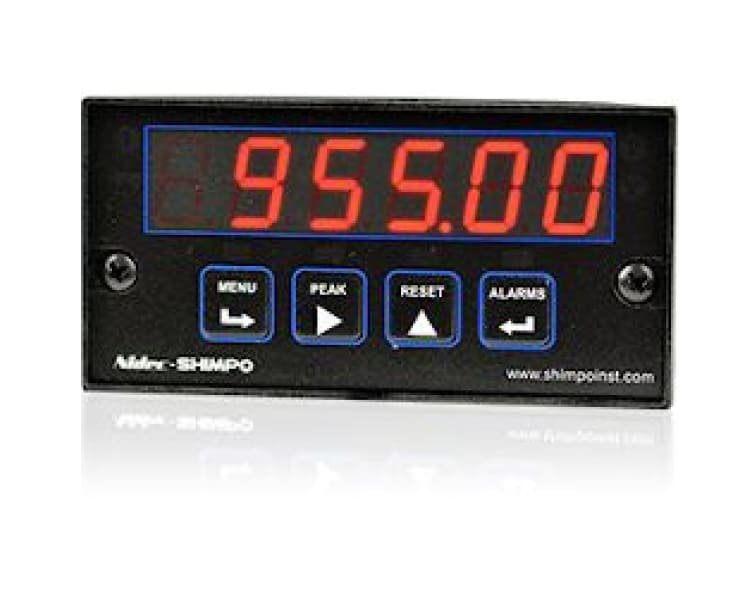

The Series PM-THC & PM-RTD 1/8 DIN Temperature Meters are designed for various process temperature monitoring and control applications. These versatile meters support multiple input and output options. The PM-THC units can accept J, K, T, E, N, R, and S thermocouples with selectable resolutions of 1° or 0.1° Fahrenheit or Celsius. The PM-RTD models accommodate platinum, nickel, and copper RTD ranges with adjustable resolutions of 1°, 0.1°, or 0.01°. Displaying in Rankin or Kelvin is also possible.
Features

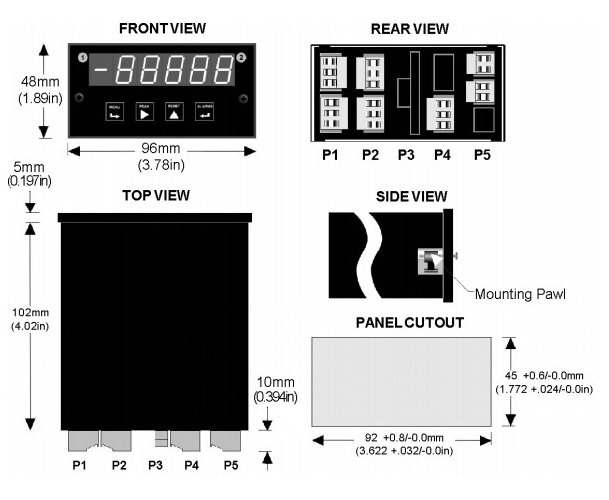

Dimensions
Specifications
| Model | PM-THC & RM-RTD |
| Input Signal Ranges (Jumper Selectable) | See model chart |
| Display Range | -99999 to 99999 |
| Accuracy @ 77°F (25°C) Over Entire Range | PM-THC: ±0.01% of full span + conformity error (See range chart); PM-RTD: See range chart |
| Reference Junction Accuracy (PM-THC Only) | 0.9°F from 50 to 104 °F (0.5°C from 10 to 40°C) |
| Display Update Time | 3.5/s at 60 Hz, 3/s at 50 Hz |
| Relay Output (Optional) | Mechanical Relays: 8 A @ 250 V ac or 24 V dc; SSR: 120 mA @ 140 V ac or 180 V dc |
| Analog Signal Output (Optional) | Jumper Selectable: 4-20 mA, 0-20 mA, 0-10 V, -10 V to 10 V |
| Communication: (Optional) | RS-232, RS-485, USB |
| Power Requirement | 85-264 V ac / 95-300 V dc; Optional 10-48 V dc / 12-34 V ac |
| Dimensions | 1.89 x 3.78 x 4 in. (48 x 96 x 102 mm) 1/8 DIN. Panel Cutout: 1.77 x 3.62 in. (45 x 92 mm); Max. Panel Thickness: 0.18” (4.5 mm) |
| Product Weight | 7.4 oz (210 g) |
| Package Weight | 15.9 oz (450 g) |
| Approvals | CE & RoHS |
| Warranty | 1-Year |
Ranges
| Power Option | Relay Output Option | Signal Output Option | Serial Comm. | |
|---|---|---|---|---|
| PM-RTD | 0 = 85-264 V ac or 95-300 V dc | R = Contact Relays – Two 8A Form C | A = 4-20 mA, 0-10 V, -10 to +10V | C1 = RS-232 |
| RTD Input | 1 = 12-34 V ac or 10-48 V dc | S = SSR Relays – Two 120 mA | 0 = No Output | C2 = RS-485 |
| 0 = No Output | C5 = USB | |||
| * Jumper Selectable | ||||
| Pt 100 Ω DIN, -202 to 850°C | ||||
| Pt 100 Ω DIN, -331 to 1562°F | ||||
| Pt 100 Ω ANSI, -202 to 631°C | ||||
| Pt 100 Ω ANSI, -331 to 1168°F | ||||
| Ni 120 Ω, -100 to 260°C | ||||
| Ni 120 Ω, -148 to 500°F | ||||
| Cu 10 Ω, -100 to +260°C | ||||
| Cu 10 Ω -148 to +500°F |
| PM-THC | 0 = 85-264 V ac or 95-300 V dc | R = Contact Relays – Two 8A Form C | A = 4-20 mA, 0-10 V, -10 to +10V | C1 = RS-232 |
| Thermocouple Input | 1 = 12-34 V ac or 10-48 V dc | S = SSR Relays – Two 120 mA | 0 = No Output | C2 = RS-485 |
| * Jumper Selectable | 0 = No Output | C5 = USB | ||
| Type J, -210 to 760°C | ||||
| Type J, -347 to 1400°F | ||||
| Type K, -244 to 1372°C | ||||
| Type K, -408 to 2501°F | ||||
| Type T, -257 to 400°C | ||||
| Type T, -430 to 752°F | ||||
| Type E, -240 to 1000°C | ||||
| Type E, -400 to 1830°F | ||||
| Type N, -245 to 1300°C | ||||
| Type N, -410 to 2370°F | ||||
| Type S, -46 to 1768°C | ||||
| Type S, -51 to 3214°F | ||||
| Type R, -45 to 1768°C | ||||
| Type R, -49 to 3213°F |
