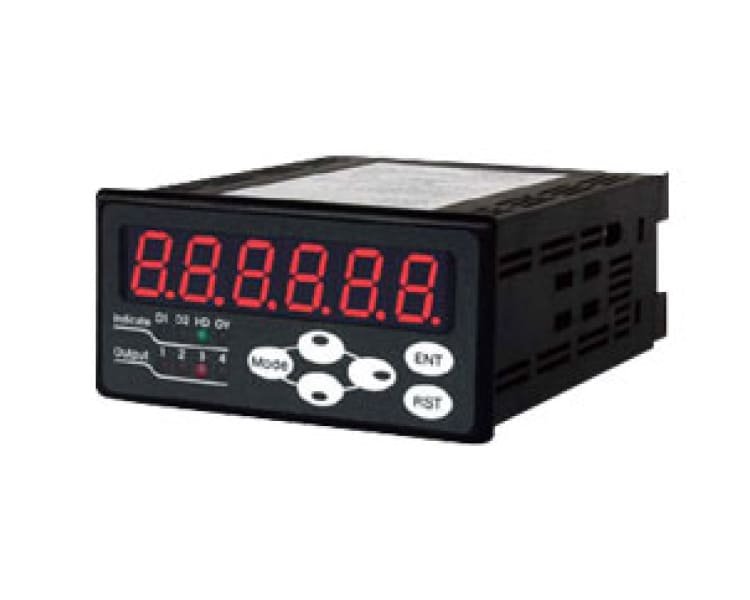

Process Panel Meters DT-601CG Shimpo

The Shimpo DT-601CG Process Panel Meter features bi-directional and batch counting with an expansive range (-999,999 to +999,999), making it ideal for high-speed part counting. Its scalable design converts values to linear units, and the large LED display ensures visibility. Includes memory backup and flexible power options for various sensors.

12 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Measurement

Estimated delivery:September 29, 2026 - October 1, 2026

Description

Process Panel Meters DT-601CG Shimpo

The Series DT-601CG counter is fully programmable, bi-directional and features an automatic multiplier, allowing the unit to count up or down. This model can be used as a ”batch” counter/controller to count and display groups of articles such as cartons, cans, bottles etc. as well as allow adjustment factor for linear units totalization. The DT-601CG comes standard with NPN input for connection with compatible NPN sensors.

Features

Expansive counting range (-999,999 to +999,999) enables usage in a variety of applications, ideal for fast moving part counting.

Fully scalable - Can convert process values to linear units.

Bi-directional and batch counting capability eliminates need for multiple counters. One unit does it all.

Accepts a wide range of input voltages; eliminates need to stock dual units and/or additional transformers.

Counting process can be viewed easily from a distance with the large 6 digit LED display.

Provides DC voltage to power various sensors; reduces cost by eliminating separate power supply.

Memory backup saves time during a power failure (important setups are retained in memory).

Auto or manual reset allows user to operate or the control to operate a reset.

Selectable decimal point provides very high resolution, up to 1000th of a digit.

Specifications

Counter Type	Bi-directional, batch
Display Range	-999,999 – +999,999
Resolution	0, 0.0, 0.00, 0.000 (selectable)
Display	6 digit, LED, 0.56″ high (14.2 mm)
Input	NPN open collector pulse input
Output	2 NPN outputs, 2 photo MOS relay outputs
Input Signal Characteristics	10 milliamp minimum or dry contact
Sensor Power Supply	12 VDC (100mA max.)
Power Requirement	85 – 264 VAC, 50/60 Hz
Power Consumption	2 W
Ambient Temperature	32°-113° F (0-45° C)
Dimensions	3.46″ x 3.78″ x 1.89″ (88 x 96 x 48 mm)
Product Weight	0.55 lb (250 g)
Package Weight	1.05 lb (476 g)
Included Accessories	Mounting brackets (attached to unit), rubber gasket, sticker sheet with units of measure
Warranty	2-Year
