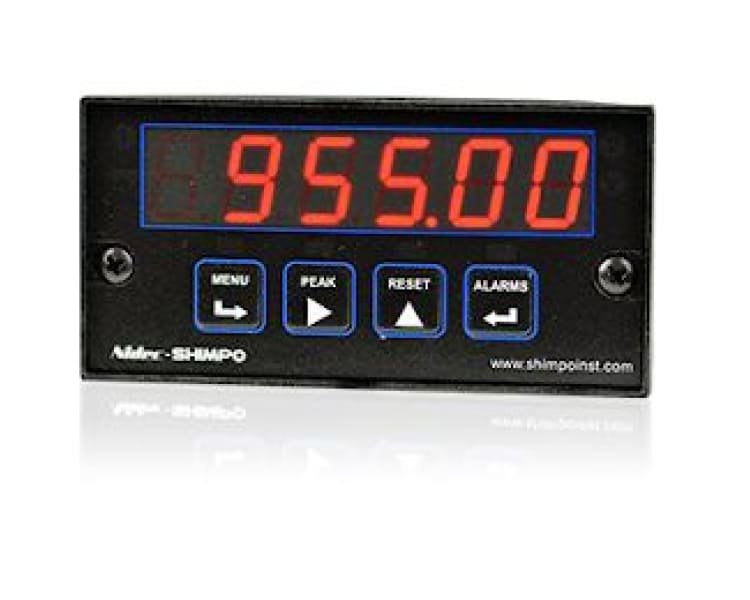

Process Panel Meters PM-DC Process Meters Shimpo

The Shimpo PM-DC Process Meter features a bright, scalable 5-digit LED display and universal power compatibility, reducing the need for country-specific models. It offers programmable scaling, multiple output options, serial communication, and isolated power output. Ideal for noisy environments with NEMA 4X protection for wash-down areas.

45 people are viewing this product right now

🔥 11 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 22, 2026 - June 24, 2026

Description

Process Panel Meters PM-DC Process Meters Shimpo

The Series PM-DC 1/8 DIN Process Meters are designed for process automation, offering jumper-selectable DC signal input ranges for versatile applications. They are fully scalable to match specific engineering unit requirements for various process signals. Current input models support 4 ranges from ±2.0000 mA to ±5.000 A, while voltage input models offer 6 ranges from ±200.00 mV to ±600.0 V. They operate on universal AC or DC power, providing flexibility in different power environments.

Features

Variety of Output and Communication Options:
Analog signal option provides: 4-20 mA, 0-20 mA, 0-10 V or -10 V to +10 V outputs.

Variety of Output and Communication Options:
Choice of 2 relays or 2 solid state relays.

Variety of Output and Communication Options:
Serial data communication of either USB, RS485 or RS232.

Peak and valley values are automatically captured and may be displayed via a pushbutton, control signal input, or be transmitted as serial data if a communication option was ordered.

When panel mounted, NEMA 4X (IP65) front cover protection keeps fluids out; enables installation in environments exposed to wash-downs.

Universal power range of 85-264 V ac / 90-300 V dc or 10-48 V dc / 12-32 V ac power eliminates need to purchase country specific models.

Programmable scaling provides flexibility to set up and monitor virtually any process in the desired engineering units.

Bright, red 5 digit LED display scalable to ±99,999 with adjustable decimal point.

Programmable scaling provides flexibility to set up and monitor virtually any process in the desired engineering units.

Isolated transducer power output of 5, 10 or 24 V dc, eliminates need for an additional power supply reducing installation costs.

Digital filtering is menu-selectable for electrically noisy environments.

High read rates at up to 60 or 50 conversions per second.

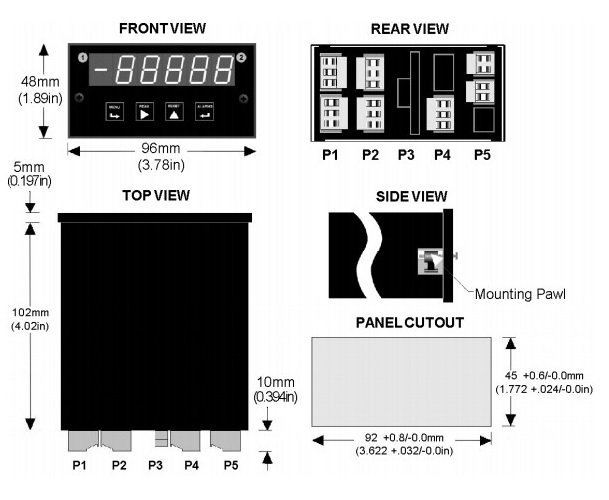

Dimensions

Specifications

Model	PM-DC
Input Signal Ranges (Jumper Selectable)	DCA: ±2.0000 mA, ±20.000 mA, ±200.00 mA, ±5.000 A
	DCV:±200.00 mV, ±2.0000 V, ± 20.000 V, ± 200.00 V,±300.0 V, ±600.0 V
Display Range	-99999 to 99999
Scaling Function	5 digits with decimal point adjustment
Accuracy @ 77°F (25°C)	±0.01% of FS ±2 Counts; 5A Range ±10 mA; 300 V & 600 V = ±0.4 V
Display Update Time	3.5/s at 60 Hz, 3/s at 50 Hz
Relay Output (Optional)	Mechanical Relays: 8 A @ 250 V ac or 24 V dc; SSR: 120 mA @ 140 V ac or 180 V dc
Analog Signal Output (Optional)	Jumper Selectable: 4-20 mA, 0-20 mA, 0-10 V, -10 V to 10 V
Communication: (Optional)	RS-232, RS-485, USB
Power Requirement	85-264 V ac / 95-300 V dc; Optional 10-48 V dc / 12-34 V ac
Sensor Excitation (Isolated)	5 Vdc ±5%, 100 mA; 10 V dc ±5%, 120 mA; or 24 V dc ±5%, 50 mA
Ambient Temperature	32-131°F (0-55°C)
Dimensions	1.89 x 3.78 x 4 in. (48 x 96 x 102 mm) 1/8 DIN. Panel Cutout: 1.77 x 3.62 in. (45 x 92 mm); Max. Panel Thickness: 0.18” (4.5 mm)
Product Weight	7.4 oz (210 g)
Package Weight	15.9 oz (450 g)
Approvals	CE & RoHS
Warranty	1-Year

DC Current Input
DC Current Range	Resolution	Input Resistance
±2.0000 mA	0.1 μA	100 Ω
±20.000 mA	1.0 μA	10 Ω
±200.00 mA	10 μA	1 Ω
±5.000 A	1 mA	0.01 Ω

DC Volt Input
DC Current Range	Resolution	Input Resistance
±200.00 mV	10 μV	1 GΩ
±2.0000 V	100 μV	1 GΩ
±20.000 V	1 mV	10 MΩ
±200.00 V	10 mV	10 MΩ
±300.0 V	0.1 V	10 MΩ
±600.0 V	0.1 V	10 MΩ

Ordering Details
Series	Signal Input (Jumper Select)	Input Power	Relay Output	Analog Output	Comm.
PM
	-DCA:	0 =	R =	A =
	±2.0000 mA	5 – 264 V ac	Relay Output Two 8A Form C contact relays	4-20 mA
	±20.000 mA	95 – 300 V dc	S =	0-20 mA
	±200.00 mA	1 =	SSR Output Two 120 mA solid state relays	0-10 V
	±5.000 A	12 – 34 V ac	0 =	-10 to +10 V
	-DCV:	10 – 48 V dc	No Output	0 =
	±200.00 mV			No Output
	±2.0000 V
	±20.000 V
	±200.00 V
	±300.0 V
	±600.0 V
