Process Panel Meters PC-AN Process Counter Shimpo

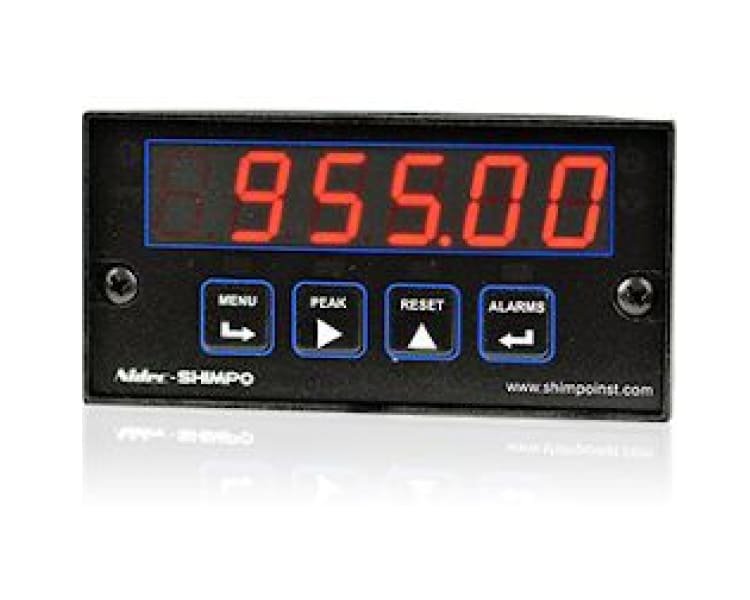

The Shimpo PC-AN Process Counter offers a bright, red 6-digit LED display, versatile input options, and isolated transducer power outputs, eliminating the need for extra power supplies. It features exceptional accuracy, field scalability, and diverse output and communication options, all within a NEMA 4X-rated panel mount design.

37 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:September 29, 2026 - October 1, 2026

Description

Process Panel Meters PC-AN Process Counter Shimpo

The Series PC-AN 1/8 DIN Process Counter/Totalizer is designed for counting or totalizing applications in process automation. It displays rate or totalized rate up to six digits for analog process signal inputs (0-1 mA, 4-20 mA, or 0-10 V). It supports scaling for displaying flow rates in gallons/minute or liters/sec, or volumes in gallons or liters based on transducer outputs. Square root extraction is selectable for use with differential pressure flow meters.

Features

Bright, red (±999,999) 6-digit LED display with selection of rate or totalized rate; Extended models provide additional batch total, grand total or number of batches.

Universal power range of 85-264 VAC / 90-300 VDC or 10-48 VDC / 12-32 VAC power eliminates need to purchase country specific models.

When panel mounted, NEMA 4X (IP65) front cover protection keeps fluids out; enables installation in environments exposed to wash-downs.

Isolated transducer power output of 5, 10 or 24 VDC, eliminates need for an additional power supply reducing installation costs.

Square root selection, ideal for differential pressure flow transducers.

0-1 mA, 4-20 mA, 0-10 V sensor input.

Variety of output and communication options:
Analog signal option provides: 4-20 mA, 0-20 mA, 0-10 V or -10 V to +10 V outputs.

Variety of output and communication options:
Choice of 2 relays or 2 solid state relays.

Variety of output and communication options:
Serial data communication of either USB, RS485 or RS232.

Field scalable for direct readout in engineering units.

Update rate selectable to 25/sec.

Peak or valley display.

Exceptional accuracy: ±0.01% of span ±1 count.

Selectable “count by” of 10 or 100 with rounding.

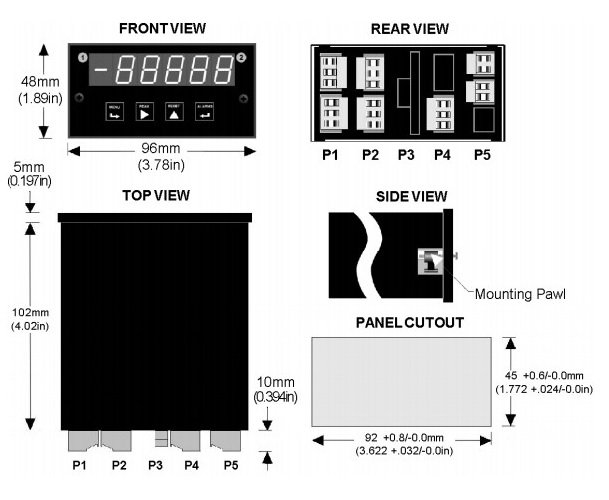

Dimensions

Specifications

Model	PC-AN
Input Signal Ranges (Jumper Selectable)	0-1 mA, 4-20 mA, 0-10 V
Display Range	-999999 to 999999; Exponential notation beyond 999999; 12 digits transmitted with communication options
Accuracy @ 77°F (25°C)	±0.01% of FS ±1 Counts
Scaling Function	6 digits with decimal point adjustment
Display Update Time	3.5/s at 60 Hz, 3/s at 50 Hz
Relay Output (Optional)	Mechanical Relays: 8 A @ 250 V ac or 24 V dc; SSR: 120 mA @ 140 V ac or 180 V dc
Analog Signal Output (Optional)	Jumper Selectable: 4-20 mA, 0-20 mA, 0-10 V, -10 V to 10 V
Communication (Optional)	RS-232, RS-485, USB
Power Requirement	85-264 V ac / 95-300 V dc; Optional 10-48 V dc / 12-34 V ac
Sensor Excitation (Isolated)	5 V dc ±5%, 100 mA; 10 V dc ±5%, 120 mA; or 24 V dc ±5%, 50 mA
Ambient Temperature	32-131°F (0-55°C)
Dimensions	1.89 x 3.78 x 4 in. (48 x 96 x 102 mm) 1/8 DIN. Panel Cutout: 1.77 x 3.62 in. (45 x 92 mm); Max. Panel Thickness: 0.18” (4.5 mm)
Product Weight	7.4 oz (210 g)
Package Weight	15.9 oz (450 g)
Approvals	CE & RoHS
Warranty	1 year

Ordering Details

Input	Input Power	Relay Output	Analog Output	Comm.
-ANB:	0 =	R =	A =	C1 =
0-1 mA	85 – 264 V ac	Relay Output Two 8 A Form C contact relays	4-20 mA	RS-232
4-20 mA	95 – 300 V dc	S =	0-20 mA	C1 =
0-10 V	1 =	SSR Output Two 120 mA solid state relays	0-10 V	RS-485
-ANE: same as ANB with Extended Features	12 – 34 V ac	0 =	-10 to +10 V	C5 =
0-1 mA	10 – 48 V dc	No Output	0 =	USB
4-20 mA			No Output	C5 =
0-10 V				No Comm. Output
