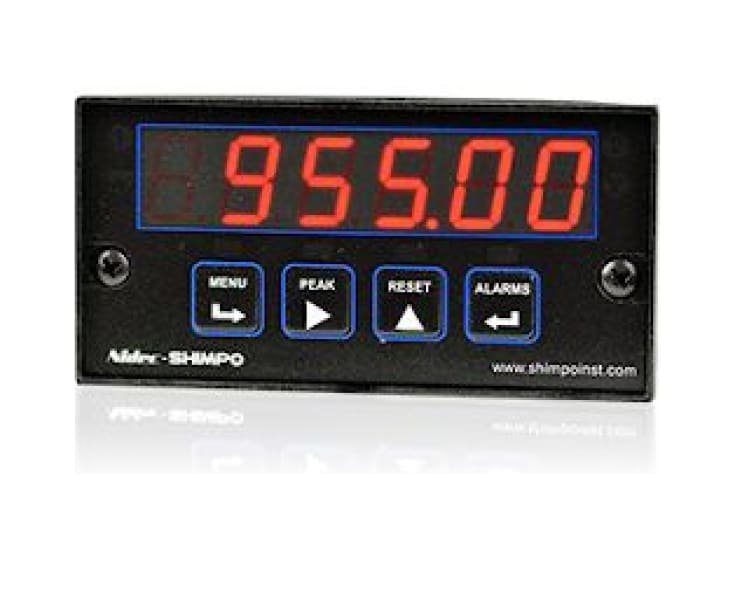

Process Panel Meters PM-RM True RMS Meters Shimpo

The Series PM-RM 1/8 DIN True RMS Meters are designed for process automation, offering jumper-selectable AC signal input ranges for versatility. They are fully scalable, displaying readings in desired engineering units and are ideal for use with current and voltage signal transformers. Current input models have 4 ranges (2.0000 mA to 5.000 A) and voltage input models have 6 ranges (200.00 V to 600.0 V). These meters support both AC and DC power options.

Features

Universal power range of 85-264 V ac / 90-300 V dc or 10-48 V dc / 12-32 V ac power eliminates need to purchase country specific models.

Bright, red 5 digit LED display scalable to 99,999 with adjustable decimal point.

Programmable scaling permits usage with current or voltage transformers.

Digital filtering is menu-selectable for electrically noisy environments.

Accuracy of ±0.1% of full scale ±2 counts (LSD).

Choice of 2 relays or 2 solid state relays.

Analog signal option provides: 4-20 mA, 0-20 mA, 0-10 V or -10 V to +10 V outputs.

High read rates at up to 60 or 50 conversions per second.

Peak and valley values are automatically captured and may be displayed via a pushbutton, control signal input, or be transmitted as serial data if a communication option was ordered.

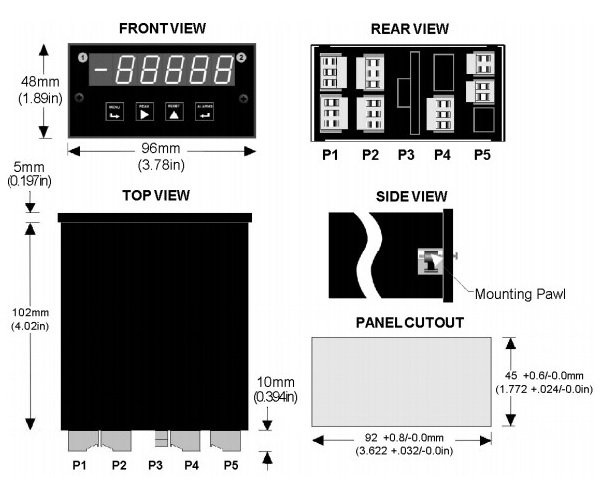

Dimensions

Specifications

Model	PM-RM
Input Signal Ranges (Jumper Selectable)	RMA: 2.0000 mA, 20.000 mA, 200.00 mA, 5.000 A
	RMV: 200.00 mV, 2.0000 V, 20.000 V, 200.00 V, 300.0 V, 600.0 V
Display Range	0 to 99999
Scaling Function	5 digits with decimal point adjustment
Accuracy @ 77°F (25°C)	±0.1% of FS ±2 Counts; 5 A Range ±10 mA; 300 V & 600 V = ±0.8 V
AC Range (True RMS Volts/Amps)	0.1% to 100% of Full Scale, 10 Hz to 10 kHz, crest factor 3.0
Display Update Time	3.5/s at 60 Hz, 3/s at 50 Hz
Relay Output (Optional)	Mechanical Relays: 8 A @ 250 V ac or 24 V dc; SSR: 120 mA @ 140 V ac or 180 V dc
Analog Signal Output (Optional)	Jumper Selectable: 4-20 mA, 0-20 mA, 0-10 V, -10 V to 10 V
Communication: (Optional)	RS-232, RS-485, USB
Ambient Temperature	32-131°F (0-55°C)
Dimensions	1.89 x 3.78 x 4 in. (48 x 96 x 102 mm) 1/8 DIN. Panel Cutout: 1.77 x 3.62 in. (45 x 92 mm); Max. Panel Thickness: 0.18” (4.5 mm)
Product Weight	7.4 oz (210 g)
Package Weight	15.9 oz (450 g)
Approvals	CE & RoHS
Warranty	1-Year

AC Current
AC Current Range	AC Current to Overrange Flash	Resolution	Input Resistance
2.0000 mA	2.6400 mA	0.1 μA	100 Ω
20.000 mA	26.400 mA	1.0 μA	10 Ω
200.00 mA	264.00 mA	10 μA	1 Ω
5.000 A	5.4 A	1 mA	0.01 Ω

AC Voltage
AC Voltage FS Range	AC Current to Overrange Flash	Resolution	Resolution
200.00 mV	264.00 mV	10 μV	22 MΩ
2.000 V	2.640 V	100 μV	1 MΩ
20.000 V	26.400 V	1 mV	1 MΩ
200.00 V	264.00 V	10 mV	1 MΩ
600.0 V	650 V	0.1 V	1 MΩ
300.0 V	650 V	0.1 V	1 MΩ

Ordering Details
Series	Signal Input (Jumper Select)	Input Power	Relay Output	Analog Output	Comm.
PM	-RMA:	0 =	R =	A =	C1 = RS-232
	2.0000 mA	85 – 264 V ac	Relay Output Two 8 A Form C contact relays	4-20 mA	C2 = RS-485
	20.000 mA	95 – 300 V dc	S =	0-20 mA 0-10 V	C5 = USB
	200.00 mA	1 =	SSR Output Two 120 mA solid state relays	-10 to +10 V	C0 = No Comm. Output
	5.000 A	12 – 34 V ac	0 =	0 =
	-RMV:	10 – 48 V dc	No Output	No Output
	200.00 mV
	2.0000 V
	20.000 V
	600.0 V
