Process Panel Meters DT-501X Shimpo

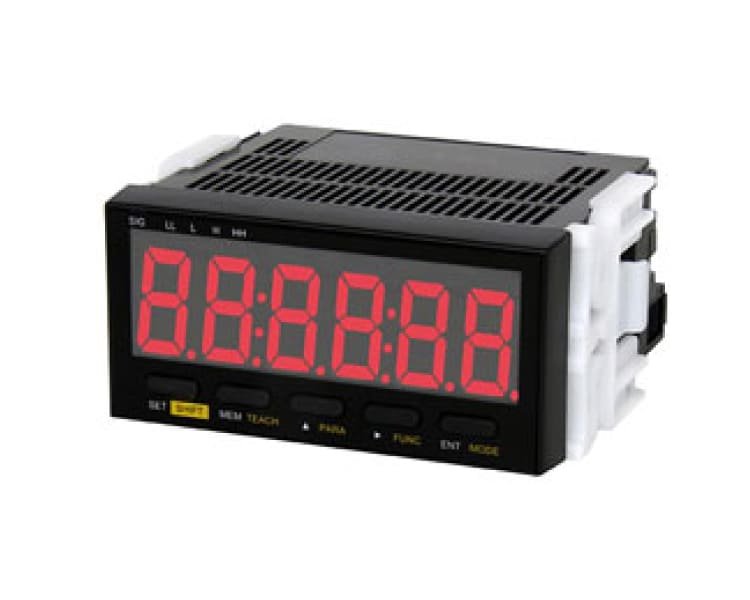

The DT-501X Panel Meter Tachometer is a versatile instrument designed for speed, rate, or time monitoring applications when used with a compatible process speed sensor. It features a large 0.87” display and a compact body depth of 3.6″, making it suitable for tight spaces. The DT-501X supports various standard inputs, including NPN, contact, and square or sine wave signals from pulse generators, sensors, and rotary encoders.

Features

Industry-leading 0.87" (22 mm) height, 6 digit, red LED display enables viewing from greater distances.

Scalable programming gives user the flexibility to set up and monitor virtually any process.

Integral sensor power source saves money by eliminating need to purchase a separate power supply.

Selectable update time allows operator to speed up/slow down display changes to facilitate process.

Test mode allows instant checking of correct operational performance of the display and keys.

Teaching function auto-scales the display by inputting signal from sensor; saves time programming manually

NEMA 4X (IP66) front cover protection keeps water out, permits usage in compatible plant wash-down operations.

Auto Zero function zeroes the display after the final signal initiates a preprogammed time countdown.

Max. Min. automatically stored into memory; quickly retrieved via keypad.

1/8 DIN size with minimal depth of only 3.6" (92 mm) allows mounting in small enclosures.

Great versatility with multiple sensor input capability in one unit: NPN open collector, contact and square or sine wave sensor inputs.

Specifications

Input Range	0.0067 Hz to 100 kHz in Tachometer, Flowmeter & Elapsed time modes; 10 ms to 3600 s in Time Span mode
Input Signal Characteristics	NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz – Sine wave input (magnetic pickup): max. frequency 10 kHz
Display Range	Tachometer/Flowmeter: 0 – 999999; with 10^-1 to 10^-5 decimal point position selection Elapsed Time: 0:00:00 – 9:59:59 (hr., min., sec., base 60) ; or 0:00 to 999:99 (second: 1/100 sec, base 10 display) Process Time Span: 0:00:00 – 0:59:59 (hr., min., sec., base 60) or 0.00 – 999.99 sec. (second: 1/100 sec, base 10 display) with zero suppression function
Display	Red 7 segment 6 digit LED, numeral height of 0.87” (22 mm); negative (-) sign available
Accuracy	Tachometer/ Flowmeter & Elapsed Time: ± 0.008 % ± 1 digit; Process Time Span: ± 0.1 % ± 1 digit
Display Update Time	0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec. selectabel in Tachometer, Flowmeter & Elapsed Time modes
Auto Zero Time	Tachometer & Flowmeter Modes: 0.1 to 150 Seconds; Elapsed Time & Time Span Modes: 0.1 to 3600 Seconds
Optional Outputs	NPN; contact relay; analog output: (selectable) 0-1, 1-5, 0-10 VDC & 4-20 mA
Power Requirement	85 – 264 VAC (50/60 Hz) Optional (9 – 35 VDC also available)
Sensor Power Supply	12 VDC (100 mA)
Temperature Limits	32 – 113°F (0 – 45°C)
Humidity Limits	35 to 85% RH
Protection Class	Front Panel: NEMA 4X (IP66) ; Rear Terminal Block NEMA 1 (IP20)
Dimensions	3.8 x 1.9 x 3.6″ (96 x 48 x 92 mm)
Product Weight	0.44 lb (200 g)
Package Weight	0.73 lb (330 g)
Approvals	RoHS
Warranty	2 year
Included Accessories	Waterproofing O’ring, engineering unit decal sheet
